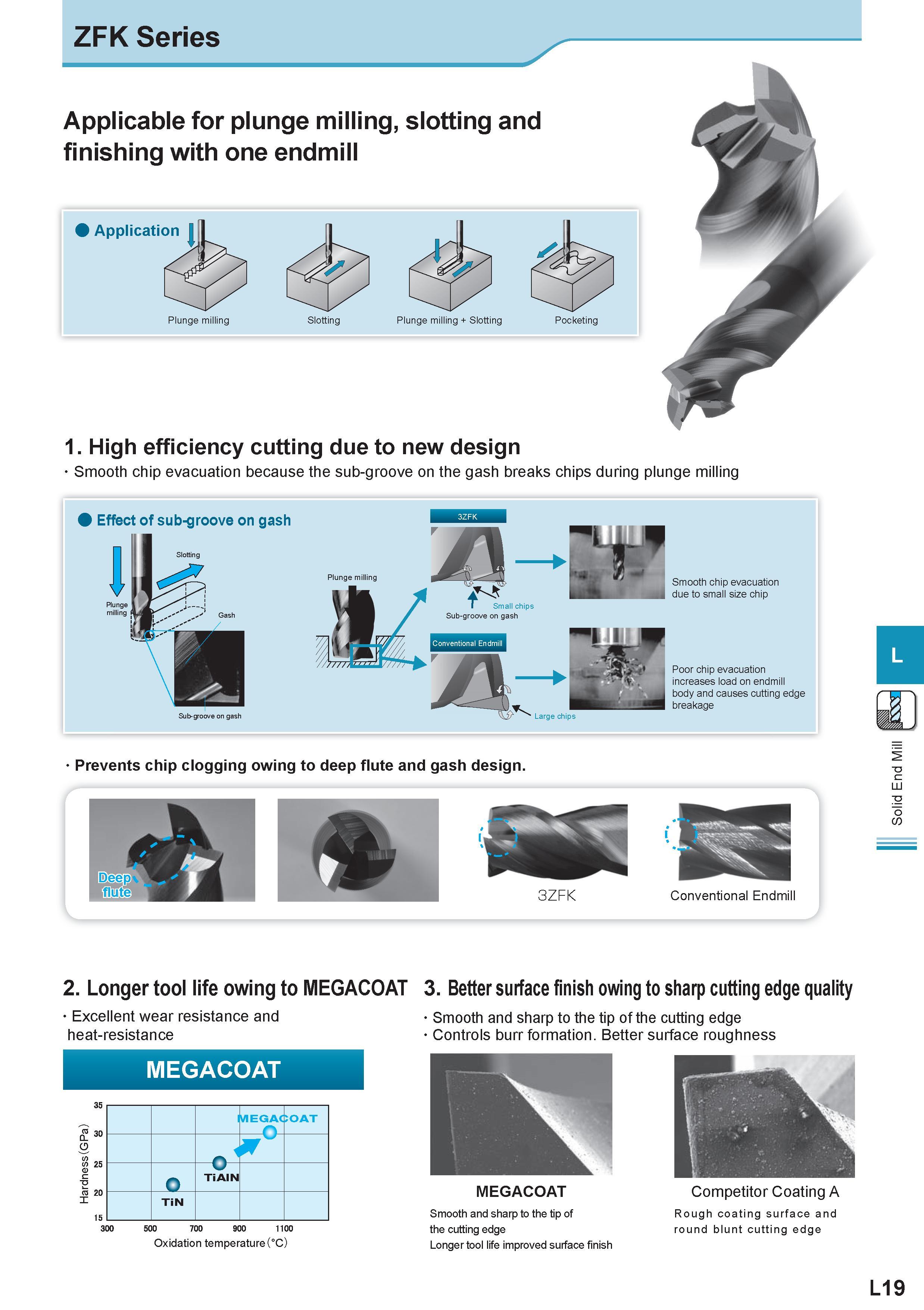

ZFK Series Applicable for plunge milling, slotting and finishing with one endmill 1. High efficiency cutting due to new design Smooth chip evacuation because the sub-groove on the gash breaks chips during plunge milling Effect of sub-groove on gash Plunge milling Small chips Sub-groove on gash Sub-groove on gash Large chips Smooth chip evacuation due to small size chip Poor chip evacuation increases load on endmill body and causes cutting edge breakage Prevents chip clogging owing to deep flute and gash design. 2. Longer tool life owing to MEGACOAT 3. Better surface finish owing to sharp cutting edge quality Excellent wear resistance and heat-resistance MEGACOAT CL O MEGAC n T A TiAlN TiN 300 500 700 900 1100 Oxidation temperature (°C) Smooth and sharp to the tip of the cutting edge Controls burr formation. Better surface roughness MEGACOAT Smooth and sharp to the tip of the cutting edge Longer tool life improved surface finish Competitor Coating A Rough coating surface and round blunt cutting edge Plunge milling L19 Solid End Mill
