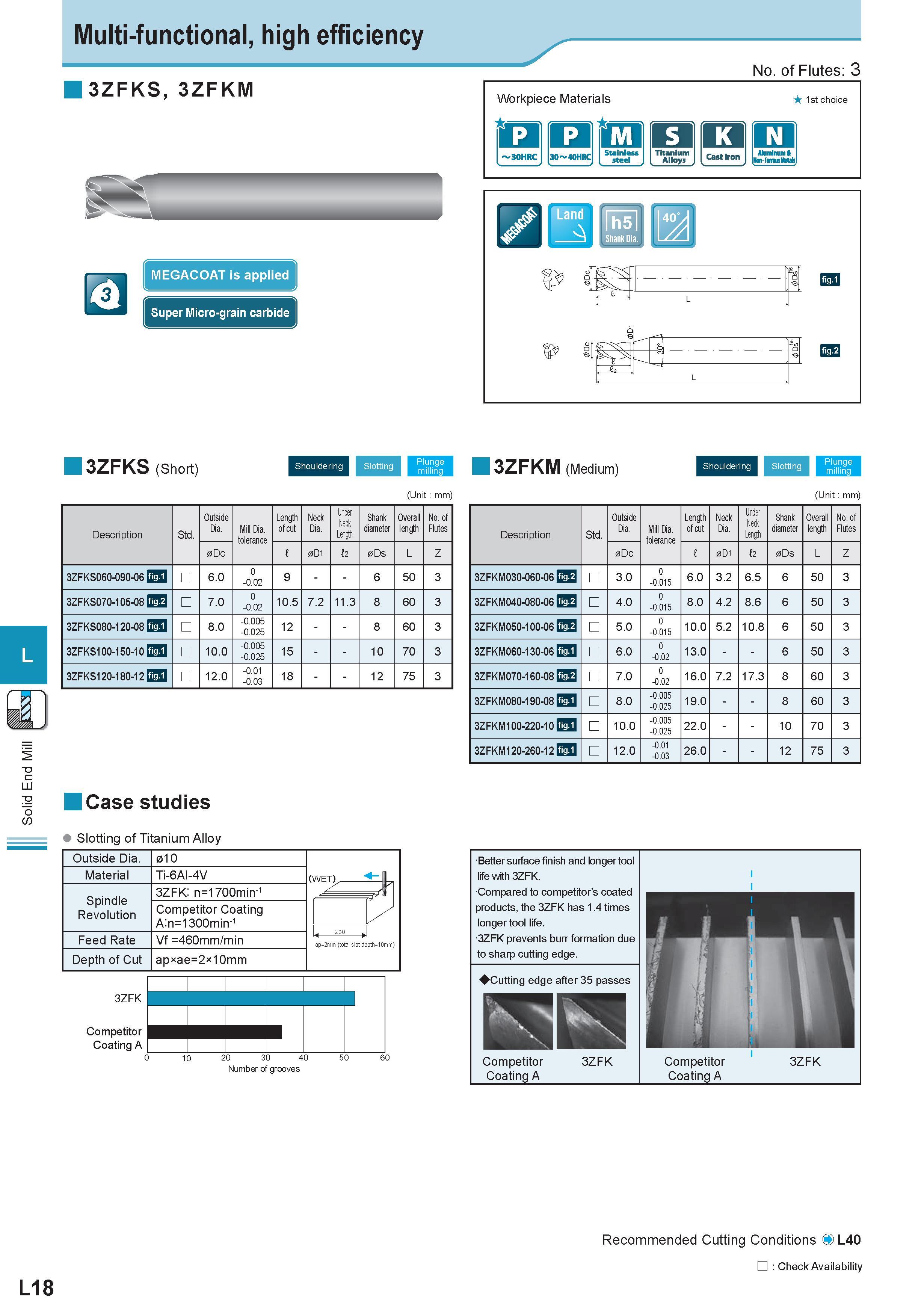

Solid End Mill Multi-functional, high efficiency 3ZFKS, 3ZFKM MEGACOAT is applied Super Micro-grain carbide No. of Flutes: 3 Workpiece Materials 1st choice OIIEll HZ l 30HRCj 30 4QHBCj "SS "aMo Cart Iron J pJjSa, Lan fh5l 3 Shank Dia. l L fig.1 3ZFKS (Short) Shouldering Slotting m ng (Unit mm) 3ZFKM (Medium) Description Std. Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Under Neck Length Shank diameter Overall length No. of Flutes 0Dc 0D1 2 0Ds L Z 3ZFKS060-090-06 EgD 6.0 0 -0.02 9 6 50 3 3ZFKS070-105-08 fig.2 7.0 0 -0.02 10.5 7.2 11.3 8 60 3 3ZFKS080-120-08 fig.1 8.0 -0.005 -0.025 12 8 60 3 3ZFKS100-150-10 fig.1 10.0 -0.005 -0.025 15 10 70 3 3ZFKS120-180-12 fig.1 12.0 -0.01 -0.03 18 12 75 3 Shouldering Slotting 1 (Unit mm) Description Std. Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Under Neck Length Shank diameter Overall length No. of Flutes 0Dc 1 0D1 12 0Ds L Z 3ZFKM030-060-06 fig.2 3.0 0 -0.015 6.0 3.2 6.5 6 50 3 3ZFKM040-080-06 fig.2 4.0 0 -0.015 8.0 4.2 8.6 6 50 3 3ZFKM050-100-06 fig.2 5.0 0 -0.015 10.0 5.2 10.8 6 50 3 3ZFKM060-130-06 fig.1 6.0 0 -0.02 13.0 6 50 3 3ZFKM070-160-08 fig.2 7.0 0 -0.02 16.0 7.2 17.3 8 60 3 3ZFKM080-190-08 fig.1 8.0 -0.005 -0.025 19.0 8 60 3 3ZFKM100-220-10 fig.1 10.0 -0.005 -0.025 22.0 10 70 3 3ZFKM120-260-12 fig.1 12.0 -0.01 -0.03 26.0 12 75 3 Case studies Slotting of Titanium Alloy 3ZFK Competitor Coating A Outside Dia. 010 (WFT) K Material Ti-6Al-4V Spindle Revolution 3ZFK n=1700min-1 Competitor Coating A:n=1300min-1 pth=10mm) Feed Rate Vf =460mm/min ap=2mm (total slot d Depth of Cut ap ae=2 10mm 20 30 40 Number of grooves Better surface finish and longer tool life with 3ZFK. Compared to competitor’s coated products, the 3ZFK has 1.4 times longer tool life. 3ZFK prevents burr formation due to sharp cutting edge. Cutting edge after 35 passes Competitor Coating A 3ZFK Competitor Coating A 3ZFK L 0 50 60 10 L18 Recommended Cutting Conditions 0L40 Check Availability
