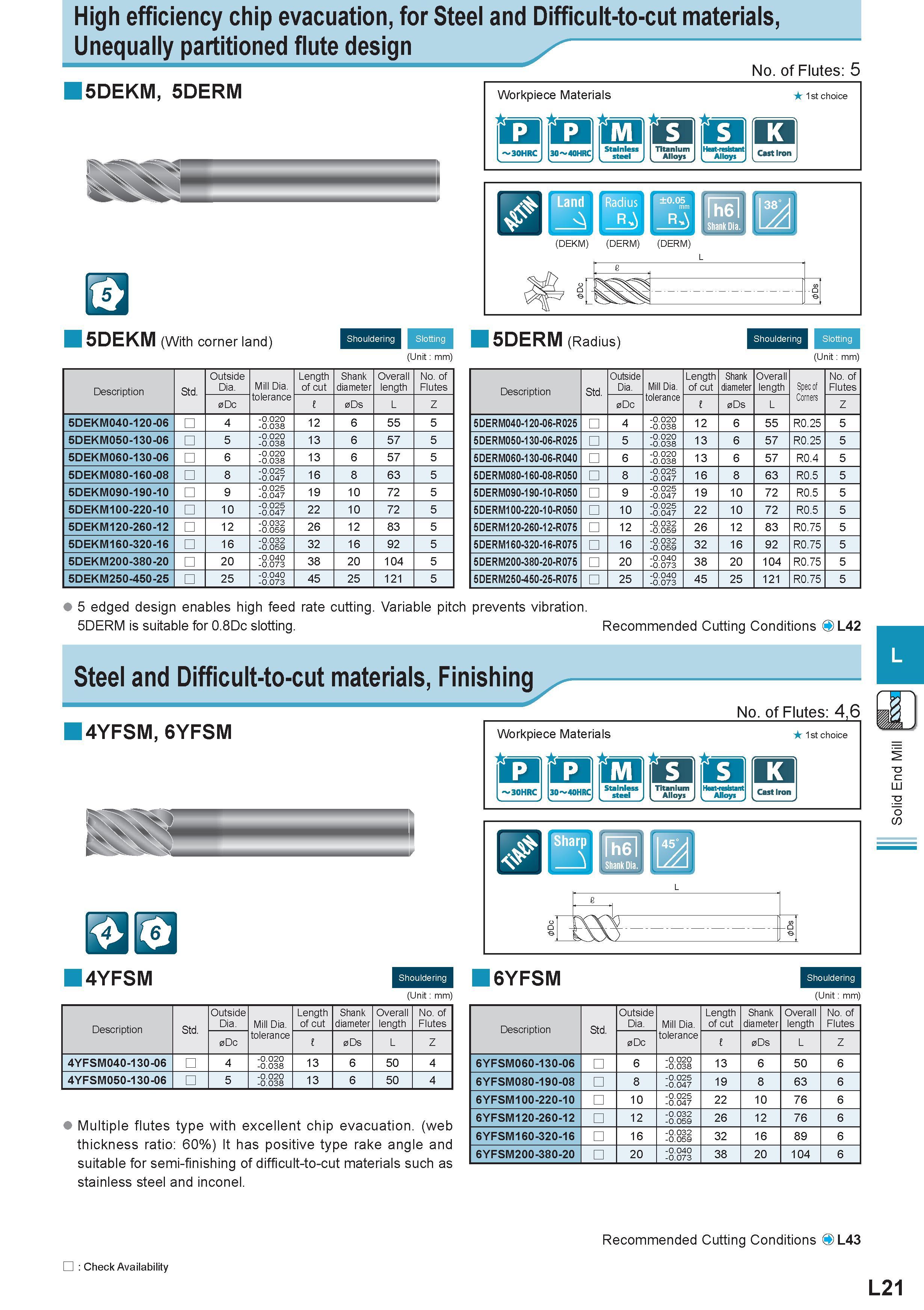

High efficiency chip evacuation, for Steel and Difficult-to-cut materials, Unequally partitioned flute design 5DEKM, 5DERM 5DEKM (With corner land) No. of Flutes: 5 Workpiece Materials 1st choice Stainless steel Titanium Alloys Alloys Land Radius (DEKM) (DERM) (DERM) l -O Shouldering Slotting (Unit mm) 5DERM (Radius) Shouldering Slotting (Unit mm) Description Std. Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length No. of Flutes 0Dc 1 0Ds L Z 5DEKM040-120-06 4 -0.020 -0.038 12 6 55 5 5DEKM050-130-06 5 -0.020 -0.038 13 6 57 5 5DEKM060-130-06 6 -0.020 -0.038 13 6 57 5 5DEKM080-160-08 8 -0.025 -0.047 16 8 63 5 5DEKM090-190-10 9 -0.025 -0.047 19 10 72 5 5DEKM100-220-10 10 -0.025 -0.047 22 10 72 5 5DEKM120-260-12 12 -0.032 -0.059 26 12 83 5 5DEKM160-320-16 16 -0.032 -0.059 32 16 92 5 5DEKM200-380-20 20 -0.040 -0.073 38 20 104 5 5DEKM250-450-25 25 -0.040 -0.073 45 25 121 5 Description Std. Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length Spec of Corners No. of Flutes 0Dc 1 0Ds L Z 5DERM040-120-06-R025 4 -0.020 -0.038 12 6 55 R0.25 5 5DERM050-130-06-R025 5 -0.020 -0.038 13 6 57 R0.25 5 5DERM060-130-06-R040 6 -0.020 -0.038 13 6 57 R0.4 5 5DERM080-160-08-R050 8 -0.025 -0.047 16 8 63 R0.5 5 5DERM090-190-10-R050 9 -0.025 -0.047 19 10 72 R0.5 5 5DERM100-220-10-R050 10 -0.025 -0.047 22 10 72 R0.5 5 5DERM120-260-12-R075 12 -0.032 -0.059 26 12 83 R0.75 5 5DERM160-320-16-R075 16 -0.032 -0.059 32 16 92 R0.75 5 5DERM200-380-20-R075 20 -0.040 -0.073 38 20 104 R0.75 5 5DERM250-450-25-R075 25 -0.040 -0.073 45 25 121 R0.75 5 5 edged design enables high feed rate cutting. Variable pitch prevents vibration. 5DERM is suitable for 0.8Dc slotting. Recommended Cutting Conditions O L42 Steel and Difficult-to-cut materials, Finishing 4YFSM, 6YFSM Eau 4YFSM Workpiece Materials 1st choice a 1 30HRC a El gra lira 1 Kl 30 40HRC Stainless steel 1 Titanium Alloys Heat-resistant Alloys y Cast Iron J 1Sha fh6l Cknnlr flin o 6YFSM (Unit mm) No. of Flutes: 4,6 (Unit mm) Description Std. Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length No. of Flutes 0Dc 1 0Ds L Z 4YFSM040-130-06 4 -0.020 -0.038 13 6 50 4 4YFSM050-130-06 5 -0.020 -0.038 13 6 50 4 Multiple flutes type with excellent chip evacuation. (web thickness ratio: 60%) It has positive type rake angle and suitable for semi-finishing of difficult-to-cut materials such as stainless steel and inconel. Check Availability Description Std. Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length No. of Flutes 0Dc 1 0Ds L Z 6YFSM060-130-06 6 -0.020 -0.038 13 6 50 6 6YFSM080-190-08 8 -0.025 -0.047 19 8 63 6 6YFSM100-220-10 10 -0.025 -0.047 22 10 76 6 6YFSM120-260-12 12 -0.032 -0.059 26 12 76 6 6YFSM160-320-16 16 -0.032 -0.059 32 16 89 6 6YFSM200-380-20 20 -0.040 -0.073 38 20 104 6 Recommended Cutting Conditions OL43 L21 Solid End Mill
