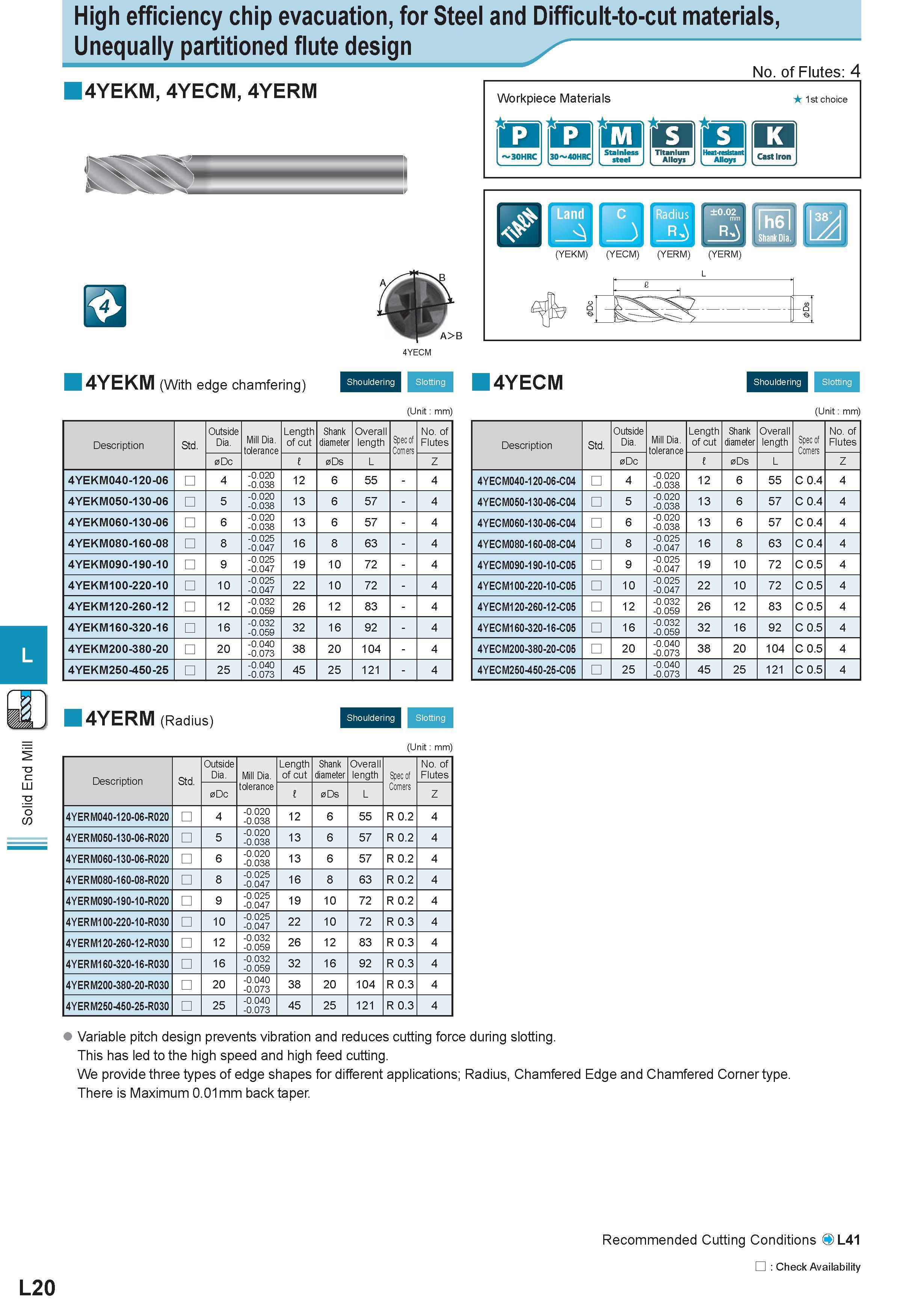

Solid End Mill High efficiency chip evacuation, for Steel and Difficult-to-cut materials, Unequally partitioned flute design 4YEKM, 4YECM, 4YERM A>B No. of Flutes: 4 Workpiece Materials 1st choice Stainless steel Titanium Alloys Alloys 4YEKM (With edge chamfering) Shouldering Slotting 4YECM Shouldering Slotting (Unit mm) (Unit mm) 4YECM Description Std. Outside Dia. Mill Dia. Length of cut Shank diameter Overall length Spec of No. of Flutes 0Dc 1 0Ds L Z 4YEKM040-120-06 4 -0.020 -0.038 12 6 55 - 4 4YEKM050-130-06 5 -0.020 -0.038 13 6 57 - 4 4YEKM060-130-06 6 -0.020 -0.038 13 6 57 - 4 4YEKM080-160-08 8 -0.025 -0.047 16 8 63 - 4 4YEKM090-190-10 9 -0.025 -0.047 19 10 72 - 4 4YEKM100-220-10 10 -0.025 -0.047 22 10 72 - 4 4YEKM120-260-12 12 -0.032 -0.059 26 12 83 - 4 4YEKM160-320-16 16 -0.032 -0.059 32 16 92 - 4 4YEKM200-380-20 20 -0.040 -0.073 38 20 104 - 4 4YEKM250-450-25 25 -0.040 -0.073 45 25 121 - 4 4YERM (Radius) Shouldering Slotting (Unit mm) Description Std. Outside Dia. Mill Dia. Length of cut Shank diameter Overall length Spec of Corners No. of Flutes 0Dc 1 0Ds L Z 4YECM040-120-06-C04 4 -0.020 -0.038 12 6 55 C 0.4 4 4YECM050-130-06-C04 5 -0.020 -0.038 13 6 57 C 0.4 4 4YECM060-130-06-C04 6 -0.020 -0.038 13 6 57 C 0.4 4 4YECM080-160-08-C04 8 -0.025 -0.047 16 8 63 C 0.4 4 4YECM090-190-10-C05 9 -0.025 -0.047 19 10 72 C 0.5 4 4YECM100-220-10-C05 10 -0.025 -0.047 22 10 72 C 0.5 4 4YECM120-260-12-C05 12 -0.032 -0.059 26 12 83 C 0.5 4 4YECM160-320-16-C05 16 -0.032 -0.059 32 16 92 C 0.5 4 4YECM200-380-20-C05 20 -0.040 -0.073 38 20 104 C 0.5 4 4YECM250-450-25-C05 25 -0.040 -0.073 45 25 121 C 0.5 4 Description Std. Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length Spec of Corners No. of Flutes 0Dc 1 0Ds L Z 4YERM040-120-06-R020 4 -0.020 -0.038 12 6 55 R 0.2 4 4YERM050-130-06-R020 5 -0.020 -0.038 13 6 57 R 0.2 4 4YERM060-130-06-R020 6 -0.020 -0.038 13 6 57 R 0.2 4 4YERM080-160-08-R020 8 -0.025 -0.047 16 8 63 R 0.2 4 4YERM090-190-10-R020 9 -0.025 -0.047 19 10 72 R 0.2 4 4YERM100-220-10-R030 10 -0.025 -0.047 22 10 72 R 0.3 4 4YERM120-260-12-R030 12 -0.032 -0.059 26 12 83 R 0.3 4 4YERM160-320-16-R030 16 -0.032 -0.059 32 16 92 R 0.3 4 4YERM200-380-20-R030 20 -0.040 -0.073 38 20 104 R 0.3 4 4YERM250-450-25-R030 25 -0.040 -0.073 45 25 121 R 0.3 4 Variable pitch design prevents vibration and reduces cutting force during slotting. This has led to the high speed and high feed cutting. We provide three types of edge shapes for different applications; Radius, Chamfered Edge and Chamfered Corner type. There is Maximum 0.01mm back taper. L20 Recommended Cutting Conditions OL41 Check Availability
