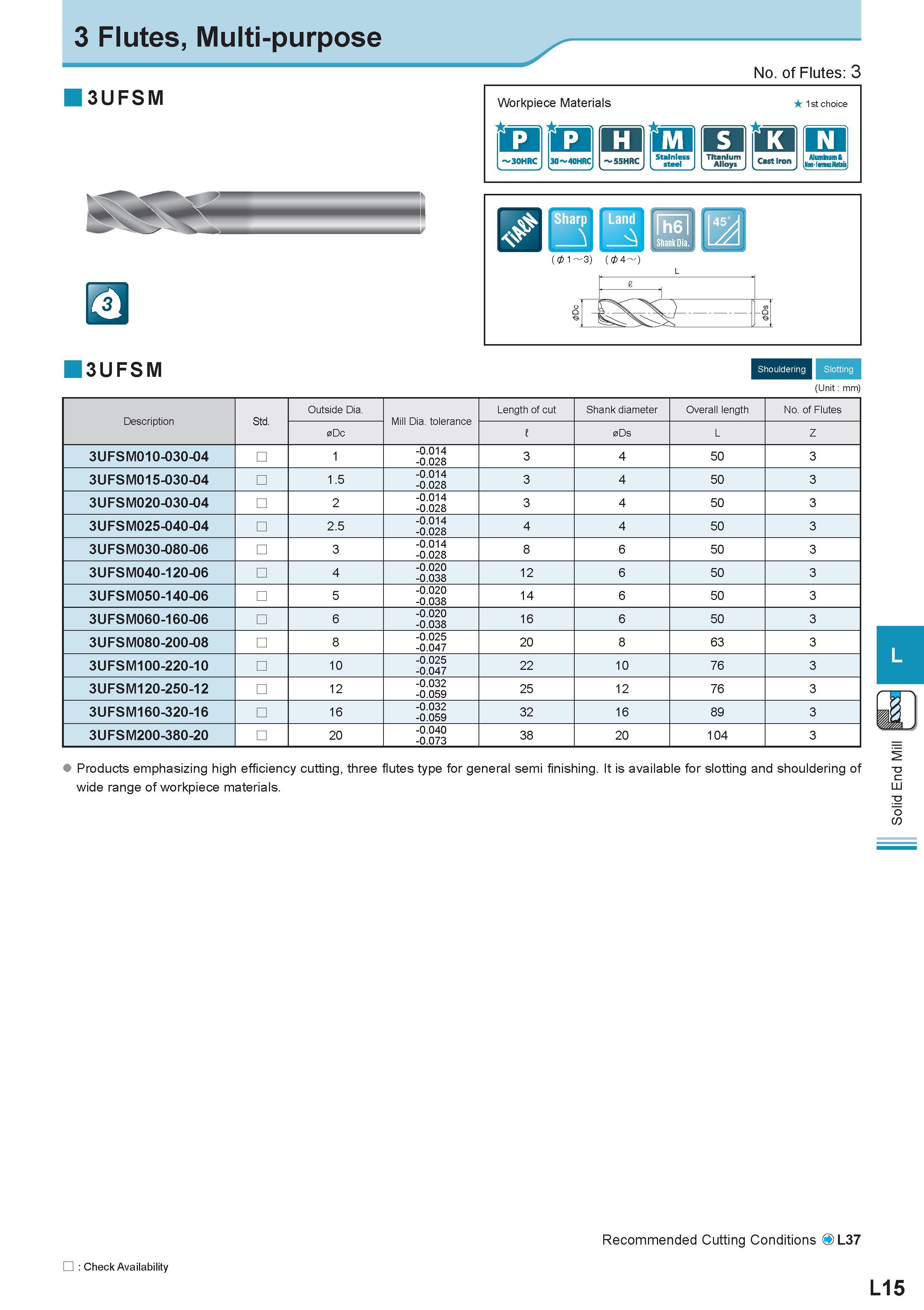

3 Flutes, Multi-purpose 3UFSM No. of Flutes: 3 Workpiece Materials 1st choice Titanium Alloys Sha, La„, jsj. ( 0 1 3) ( 0 4 ) 1 1 -Q 3UFSM Shouldering Slotting (Unit mm) Description Std. Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length No. of Flutes 0Dc 1 0Ds L Z 3UFSM010-030-04 1 -0.014 -0.028 3 4 50 3 3UFSM015-030-04 1.5 -0.014 -0.028 3 4 50 3 3UFSM020-030-04 2 -0.014 -0.028 3 4 50 3 3UFSM025-040-04 2.5 -0.014 -0.028 4 4 50 3 3UFSM030-080-06 3 -0.014 -0.028 8 6 50 3 3UFSM040-120-06 4 -0.020 -0.038 12 6 50 3 3UFSM050-140-06 5 -0.020 -0.038 14 6 50 3 3UFSM060-160-06 6 -0.020 -0.038 16 6 50 3 3UFSM080-200-08 8 -0.025 -0.047 20 8 63 3 3UFSM100-220-10 10 -0.025 -0.047 22 10 76 3 3UFSM120-250-12 12 -0.032 -0.059 25 12 76 3 3UFSM160-320-16 16 -0.032 -0.059 32 16 89 3 3UFSM200-380-20 20 -0.040 -0.073 38 20 104 3 Products emphasizing high efficiency cutting, three flutes type for general semi finishing. It is available for slotting and shouldering of wide range of workpiece materials. Recommended Cutting Conditions OL37 Check Availability L15 Solid End Mill
