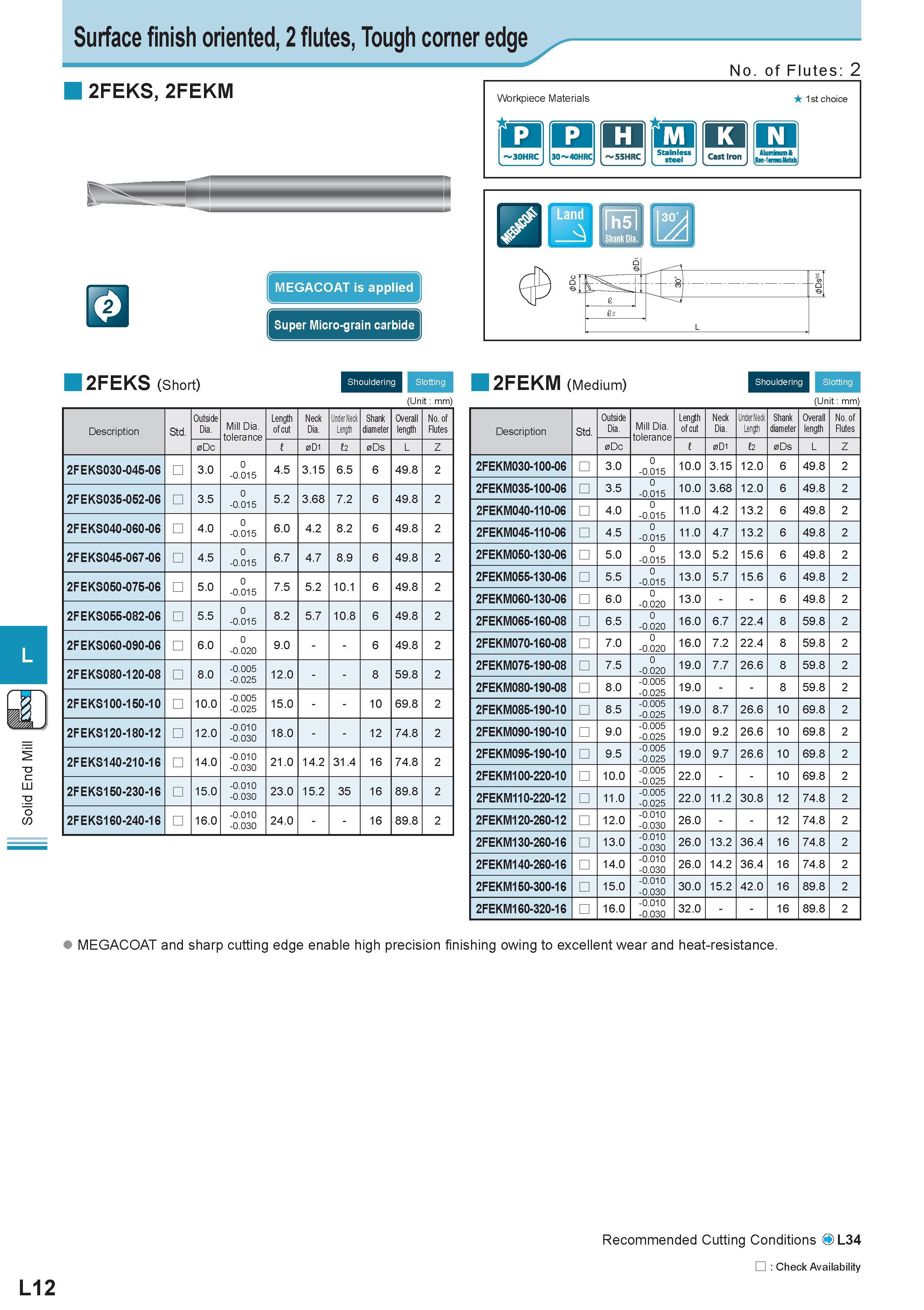

Solid End Mill Surface finish oriented, 2 flutes, Tough corner edge 2FEKS, 2FEKM MEGACOAT is applied Super Micro-grain carbide No. of Flutes: 2 2FEKS (Short) Shouldering Slotting (Unit mm) 2FEKM (Medium) Shouldering Slotting (Unit mm) Description Std. Outside Dia. Mill Dia. Length of cut Neck Dia. Under Neck Length Shank diameter Overall length No. of Flutes 0Dc 1 0D1 12 0Ds L Z 2FEKS030-045-06 3.0 0 -0.015 4.5 3.15 6.5 6 49.8 2 2FEKS035-052-06 3.5 0 -0.015 5.2 3.68 7.2 6 49.8 2 2FEKS040-060-06 4.0 0 -0.015 6.0 4.2 8.2 6 49.8 2 2FEKS045-067-06 4.5 0 -0.015 6.7 4.7 8.9 6 49.8 2 2FEKS050-075-06 5.0 0 -0.015 7.5 5.2 10.1 6 49.8 2 2FEKS055-082-06 5.5 0 -0.015 8.2 5.7 10.8 6 49.8 2 2FEKS060-090-06 6.0 0 -0.020 9.0 6 49.8 2 2FEKS080-120-08 8.0 -0.005 -0.025 12.0 8 59.8 2 2FEKS100-150-10 10.0 -0.005 -0.025 15.0 10 69.8 2 2FEKS120-180-12 12.0 -0.010 -0.030 18.0 12 74.8 2 2FEKS140-210-16 14.0 -0.010 -0.030 21.0 14.2 31.4 16 74.8 2 2FEKS150-230-16 15.0 -0.010 -0.030 23.0 15.2 35 16 89.8 2 2FEKS160-240-16 16.0 -0.010 -0.030 24.0 16 89.8 2 Description Std. Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Under Neck Length Shank diameter Overall length No. of Flutes 0Dc 1 0D1 12 0Ds L Z 2FEKM030-100-06 3.0 0 -0.015 10.0 3.15 12.0 6 49.8 2 2FEKM035-100-06 3.5 0 -0.015 10.0 3.68 12.0 6 49.8 2 2FEKM040-110-06 4.0 0 -0.015 11.0 4.2 13.2 6 49.8 2 2FEKM045-110-06 4.5 0 -0.015 11.0 4.7 13.2 6 49.8 2 2FEKM050-130-06 5.0 0 -0.015 13.0 5.2 15.6 6 49.8 2 2FEKM055-130-06 5.5 0 -0.015 13.0 5.7 15.6 6 49.8 2 2FEKM060-130-06 6.0 0 -0.020 13.0 6 49.8 2 2FEKM065-160-08 6.5 0 -0.020 16.0 6.7 22.4 8 59.8 2 2FEKM070-160-08 7.0 0 -0.020 16.0 7.2 22.4 8 59.8 2 2FEKM075-190-08 7.5 0 -0.020 19.0 7.7 26.6 8 59.8 2 2FEKM080-190-08 8.0 -0.005 -0.025 19.0 8 59.8 2 2FEKM085-190-10 8.5 -0.005 -0.025 19.0 8.7 26.6 10 69.8 2 2FEKM090-190-10 9.0 -0.005 -0.025 19.0 9.2 26.6 10 69.8 2 2FEKM095-190-10 9.5 -0.005 -0.025 19.0 9.7 26.6 10 69.8 2 2FEKM100-220-10 10.0 -0.005 -0.025 22.0 10 69.8 2 2FEKM110-220-12 11.0 -0.005 -0.025 22.0 11.2 30.8 12 74.8 2 2FEKM120-260-12 12.0 -0.010 -0.030 26.0 12 74.8 2 2FEKM130-260-16 13.0 -0.010 -0.030 26.0 13.2 36.4 16 74.8 2 2FEKM140-260-16 14.0 -0.010 -0.030 26.0 14.2 36.4 16 74.8 2 2FEKM150-300-16 15.0 -0.010 -0.030 30.0 15.2 42.0 16 89.8 2 2FEKM160-320-16 16.0 -0.010 -0.030 32.0 16 89.8 2 MEGACOAT and sharp cutting edge enable high precision finishing owing to excellent wear and heat-resistance. L12 Recommended Cutting Conditions OL34 Check Availability
