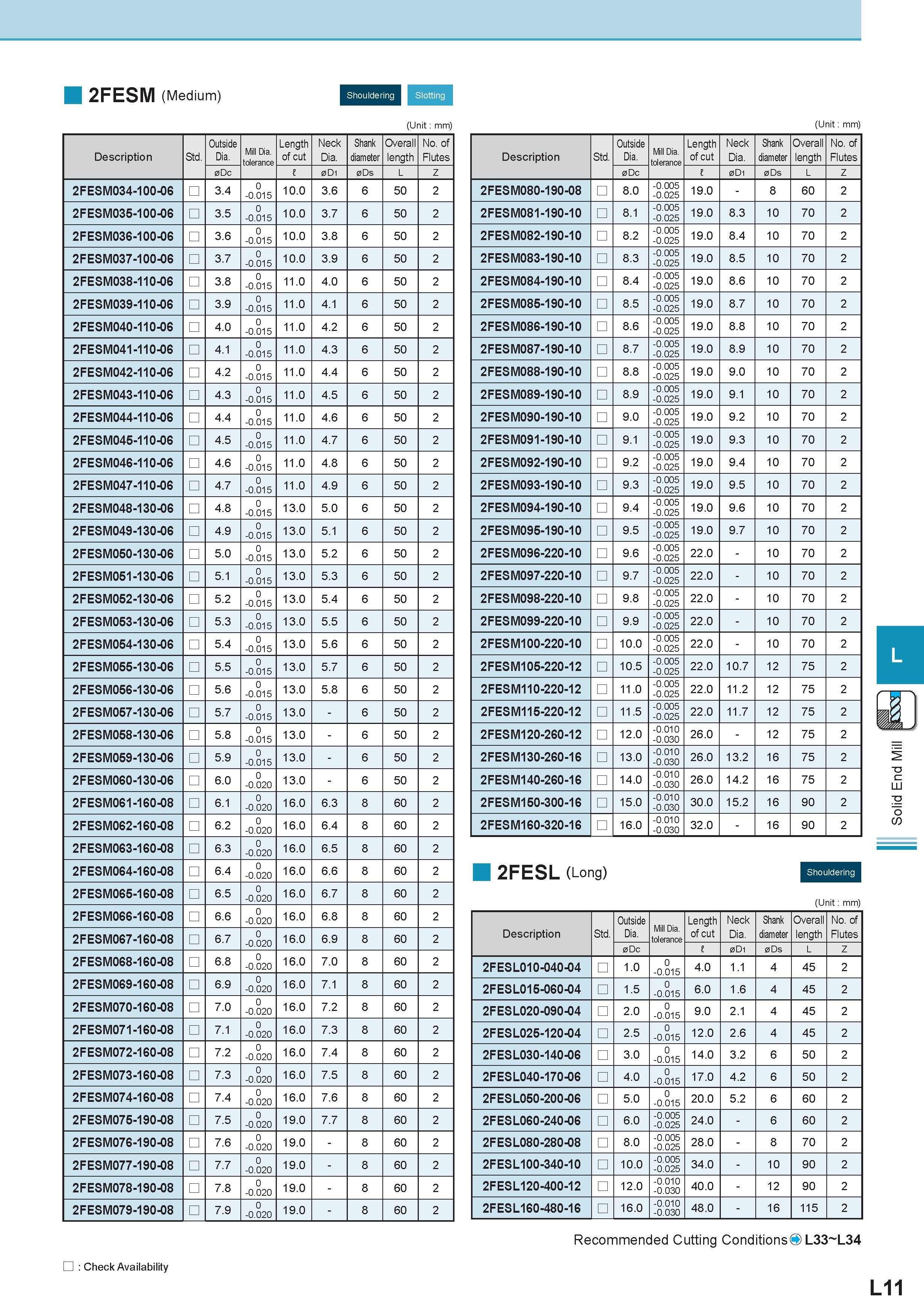

2FESM (Medium) Shouldering Slotting (Unit mm) (Unit mm) Description Std. Outside Dia. Mill Dia. Length of cut Neck Dia. Shank diameter Overall length No. of Flutes 0Dc l 0D1 0Ds L Z 2FESM034-100-06 3.4 0 -0.015 10.0 3.6 6 50 2 2FESM035-100-06 3.5 0 -0.015 10.0 3.7 6 50 2 2FESM036-100-06 3.6 0 -0.015 10.0 3.8 6 50 2 2FESM037-100-06 3.7 0 -0.015 10.0 3.9 6 50 2 2FESM038-110-06 3.8 0 -0.015 11.0 4.0 6 50 2 2FESM039-110-06 3.9 0 -0.015 11.0 4.1 6 50 2 2FESM040-110-06 4.0 0 -0.015 11.0 4.2 6 50 2 2FESM041-110-06 4.1 0 -0.015 11.0 4.3 6 50 2 2FESM042-110-06 4.2 0 -0.015 11.0 4.4 6 50 2 2FESM043-110-06 4.3 0 -0.015 11.0 4.5 6 50 2 2FESM044-110-06 4.4 0 -0.015 11.0 4.6 6 50 2 2FESM045-110-06 4.5 0 -0.015 11.0 4.7 6 50 2 2FESM046-110-06 4.6 0 -0.015 11.0 4.8 6 50 2 2FESM047-110-06 4.7 0 -0.015 11.0 4.9 6 50 2 2FESM048-130-06 4.8 0 -0.015 13.0 5.0 6 50 2 2FESM049-130-06 4.9 0 -0.015 13.0 5.1 6 50 2 2FESM050-130-06 5.0 0 -0.015 13.0 5.2 6 50 2 2FESM051-130-06 5.1 0 -0.015 13.0 5.3 6 50 2 2FESM052-130-06 5.2 0 -0.015 13.0 5.4 6 50 2 2FESM053-130-06 5.3 0 -0.015 13.0 5.5 6 50 2 2FESM054-130-06 5.4 0 -0.015 13.0 5.6 6 50 2 2FESM055-130-06 5.5 0 -0.015 13.0 5.7 6 50 2 2FESM056-130-06 5.6 0 -0.015 13.0 5.8 6 50 2 2FESM057-130-06 5.7 0 -0.015 13.0 - 6 50 2 2FESM058-130-06 5.8 0 -0.015 13.0 - 6 50 2 2FESM059-130-06 5.9 0 -0.015 13.0 - 6 50 2 2FESM060-130-06 6.0 0 -0.020 13.0 - 6 50 2 2FESM061-160-08 6.1 0 -0.020 16.0 6.3 8 60 2 2FESM062-160-08 6.2 0 -0.020 16.0 6.4 8 60 2 2FESM063-160-08 6.3 0 -0.020 16.0 6.5 8 60 2 2FESM064-160-08 6.4 0 -0.020 16.0 6.6 8 60 2 2FESM065-160-08 6.5 0 -0.020 16.0 6.7 8 60 2 2FESM066-160-08 6.6 0 -0.020 16.0 6.8 8 60 2 2FESM067-160-08 6.7 0 -0.020 16.0 6.9 8 60 2 2FESM068-160-08 6.8 0 -0.020 16.0 7.0 8 60 2 2FESM069-160-08 6.9 0 -0.020 16.0 7.1 8 60 2 2FESM070-160-08 7.0 0 -0.020 16.0 7.2 8 60 2 2FESM071-160-08 7.1 0 -0.020 16.0 7.3 8 60 2 2FESM072-160-08 7.2 0 -0.020 16.0 7.4 8 60 2 2FESM073-160-08 7.3 0 -0.020 16.0 7.5 8 60 2 2FESM074-160-08 7.4 0 -0.020 16.0 7.6 8 60 2 2FESM075-190-08 7.5 0 -0.020 19.0 7.7 8 60 2 2FESM076-190-08 7.6 0 -0.020 19.0 - 8 60 2 2FESM077-190-08 7.7 0 -0.020 19.0 - 8 60 2 2FESM078-190-08 7.8 0 -0.020 19.0 - 8 60 2 2FESM079-190-08 7.9 0 -0.020 19.0 - 8 60 2 Description Std. Outside Dia. Mill Dia. Length of cut Neck Dia. Shank diameter Overall length No. of Flutes 0Dc l 0D1 0Ds L Z 2FESM080-190-08 8.0 -0.005 -0.025 19.0 - 8 60 2 2FESM081-190-10 8.1 -0.005 -0.025 19.0 8.3 10 70 2 2FESM082-190-10 8.2 -0.005 -0.025 19.0 8.4 10 70 2 2FESM083-190-10 8.3 -0.005 -0.025 19.0 8.5 10 70 2 2FESM084-190-10 8.4 -0.005 -0.025 19.0 8.6 10 70 2 2FESM085-190-10 8.5 -0.005 -0.025 19.0 8.7 10 70 2 2FESM086-190-10 8.6 -0.005 -0.025 19.0 8.8 10 70 2 2FESM087-190-10 8.7 -0.005 -0.025 19.0 8.9 10 70 2 2FESM088-190-10 8.8 -0.005 -0.025 19.0 9.0 10 70 2 2FESM089-190-10 8.9 -0.005 -0.025 19.0 9.1 10 70 2 2FESM090-190-10 9.0 -0.005 -0.025 19.0 9.2 10 70 2 2FESM091-190-10 9.1 -0.005 -0.025 19.0 9.3 10 70 2 2FESM092-190-10 9.2 -0.005 -0.025 19.0 9.4 10 70 2 2FESM093-190-10 9.3 -0.005 -0.025 19.0 9.5 10 70 2 2FESM094-190-10 9.4 -0.005 -0.025 19.0 9.6 10 70 2 2FESM095-190-10 9.5 -0.005 -0.025 19.0 9.7 10 70 2 2FESM096-220-10 9.6 -0.005 -0.025 22.0 - 10 70 2 2FESM097-220-10 9.7 -0.005 -0.025 22.0 - 10 70 2 2FESM098-220-10 9.8 -0.005 -0.025 22.0 - 10 70 2 2FESM099-220-10 9.9 -0.005 -0.025 22.0 - 10 70 2 2FESM100-220-10 10.0 -0.005 -0.025 22.0 - 10 70 2 2FESM105-220-12 10.5 -0.005 -0.025 22.0 10.7 12 75 2 2FESM110-220-12 11.0 -0.005 -0.025 22.0 11.2 12 75 2 2FESM115-220-12 11.5 -0.005 -0.025 22.0 11.7 12 75 2 2FESM120-260-12 12.0 -0.010 -0.030 26.0 - 12 75 2 2FESM130-260-16 13.0 -0.010 -0.030 26.0 13.2 16 75 2 2FESM140-260-16 14.0 -0.010 -0.030 26.0 14.2 16 75 2 2FESM150-300-16 15.0 -0.010 -0.030 30.0 15.2 16 90 2 2FESM160-320-16 16.0 -0.010 -0.030 32.0 - 16 90 2 2FESL (Long) (Unit mm) Description Std. Outside Dia. Mill Dia. Length of cut Neck Dia. Shank diameter Overall length No. of Flutes 0Dc l 0D1 0Ds L Z 2FESL010-040-04 1.0 0 -0.015 4.0 1.1 4 45 2 2FESL015-060-04 1.5 0 -0.015 6.0 1.6 4 45 2 2FESL020-090-04 2.0 0 -0.015 9.0 2.1 4 45 2 2FESL025-120-04 2.5 0 -0.015 12.0 2.6 4 45 2 2FESL030-140-06 3.0 0 -0.015 14.0 3.2 6 50 2 2FESL040-170-06 4.0 0 -0.015 17.0 4.2 6 50 2 2FESL050-200-06 5.0 0 -0.015 20.0 5.2 6 60 2 2FESL060-240-06 6.0 -0.005 -0.025 24.0 - 6 60 2 2FESL080-280-08 8.0 -0.005 -0.025 28.0 - 8 70 2 2FESL100-340-10 10.0 -0.005 -0.025 34.0 - 10 90 2 2FESL120-400-12 12.0 -0.010 -0.030 40.0 - 12 90 2 2FESL160-480-16 16.0 -0.010 -0.030 48.0 - 16 115 2 Recommended Cutting ConditionsO L33 L34 Check Availability L11 Solid End Mill
