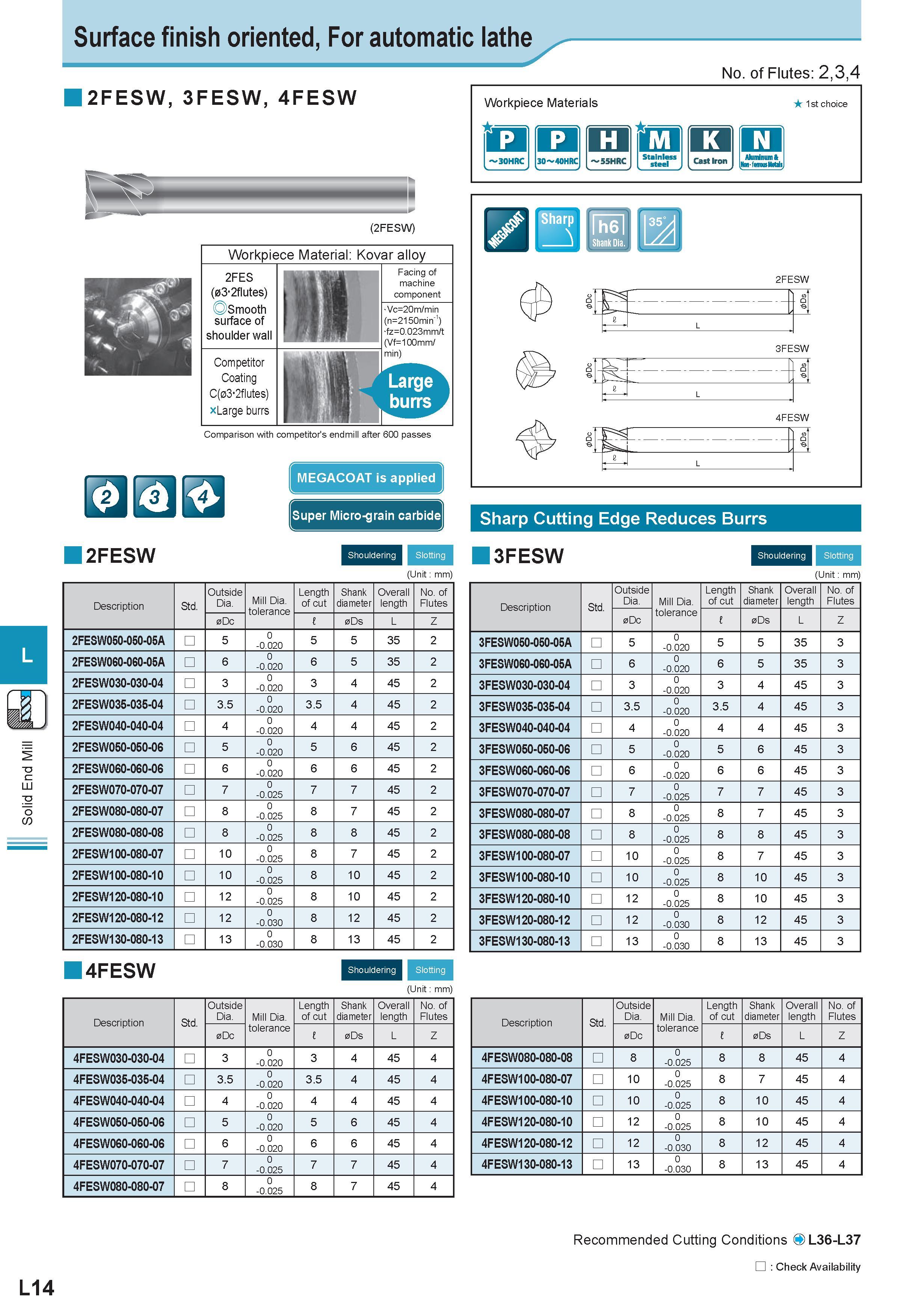

Solid End Mill Surface finish oriented, For automatic lathe No. of Flutes: 2,3,4 2FESW, 3FESW, 4FESW Workpiece Materials 1st choice (2FESW) Workpiece Material: Kovar alloy 2FES (03-2flutes) Smooth surface of shoulder wall Competitor Coating C(03-2flutes) xLarge burrs Comparison with competitor's endmill after 600 passes Facing of machine component Vc=20m/min (n=2150min1) fz=0.023mm/t (Vf=100mm/ min) mm 2FESW S3 Shar,p fhel 2FESW L 3FESW t i L 4FESW MEGACOAT is applied j Super Micro-grain carbid H Sharp Cutting Edge Reduces Burrs Shouldering Slotting (Unit mm) Description Std. Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length No. of Flutes 0Dc 1 0Ds L Z 2FESW050-050-05A 5 0 -0.020 5 5 35 2 2FESW060-060-05A 6 0 -0.020 6 5 35 2 2FESW030-030-04 3 0 -0.020 3 4 45 2 2FESW035-035-04 3.5 0 -0.020 3.5 4 45 2 2FESW040-040-04 4 0 -0.020 4 4 45 2 2FESW050-050-06 5 0 -0.020 5 6 45 2 2FESW060-060-06 6 0 -0.020 6 6 45 2 2FESW070-070-07 7 0 -0.025 7 7 45 2 2FESW080-080-07 8 0 -0.025 8 7 45 2 2FESW080-080-08 8 0 -0.025 8 8 45 2 2FESW100-080-07 10 0 -0.025 8 7 45 2 2FESW100-080-10 10 0 -0.025 8 10 45 2 2FESW120-080-10 12 0 -0.025 8 10 45 2 2FESW120-080-12 12 0 -0.030 8 12 45 2 2FESW130-080-13 13 0 -0.030 8 13 45 2 4FESW 3FESW Shouldering Slotting (Unit mm) Description Std. Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length No. of Flutes 0Dc 1 0Ds L Z 3FESW050-050-05A 5 0 -0.020 5 5 35 3 3FESW060-060-05A 6 0 -0.020 6 5 35 3 3FESW030-030-04 3 0 -0.020 3 4 45 3 3FESW035-035-04 3.5 0 -0.020 3.5 4 45 3 3FESW040-040-04 4 0 -0.020 4 4 45 3 3FESW050-050-06 5 0 -0.020 5 6 45 3 3FESW060-060-06 6 0 -0.020 6 6 45 3 3FESW070-070-07 7 0 -0.025 7 7 45 3 3FESW080-080-07 8 0 -0.025 8 7 45 3 3FESW080-080-08 8 0 -0.025 8 8 45 3 3FESW100-080-07 10 0 -0.025 8 7 45 3 3FESW100-080-10 10 0 -0.025 8 10 45 3 3FESW120-080-10 12 0 -0.025 8 10 45 3 3FESW120-080-12 12 0 -0.030 8 12 45 3 3FESW130-080-13 13 0 -0.030 8 13 45 3 Shouldering Slotting (Unit mm) Description Std. Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length No. of Flutes 0Dc 1 0Ds L Z 4FESW030-030-04 3 0 -0.020 3 4 45 4 4FESW035-035-04 3.5 0 -0.020 3.5 4 45 4 4FESW040-040-04 4 0 -0.020 4 4 45 4 4FESW050-050-06 5 0 -0.020 5 6 45 4 4FESW060-060-06 6 0 -0.020 6 6 45 4 4FESW070-070-07 7 0 -0.025 7 7 45 4 4FESW080-080-07 8 0 -0.025 8 7 45 4 Description Std. Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length No. of Flutes 0Dc 1 0Ds L Z 4FESW080-080-08 8 0 -0.025 8 8 45 4 4FESW100-080-07 10 0 -0.025 8 7 45 4 4FESW100-080-10 10 0 -0.025 8 10 45 4 4FESW120-080-10 12 0 -0.025 8 10 45 4 4FESW120-080-12 12 0 -0.030 8 12 45 4 4FESW130-080-13 13 0 -0.030 8 13 45 4 L14 Recommended Cutting Conditions OL36-L37 Check Availability
