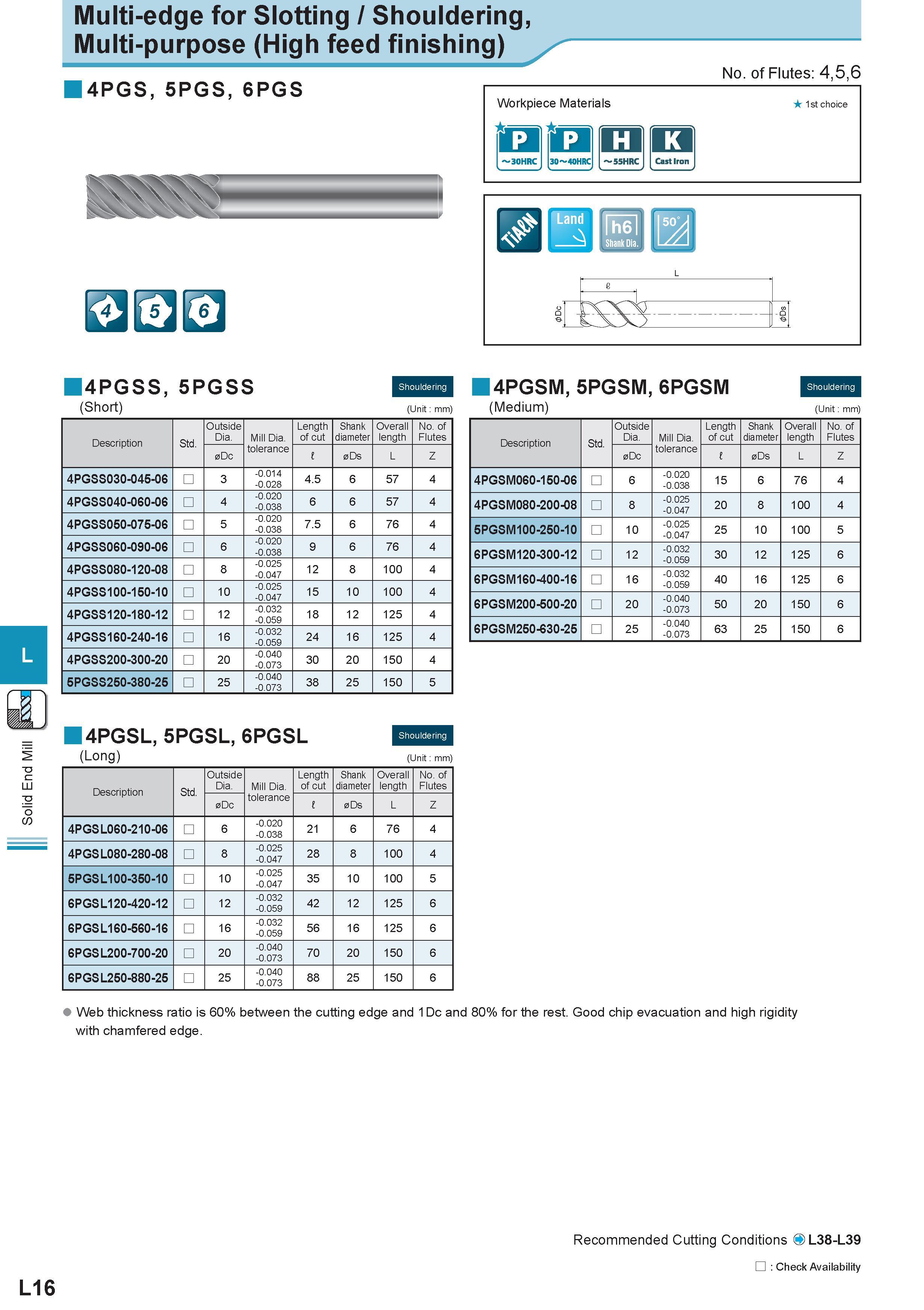

Solid End Mill Multi-edge for Slotting Shouldering, Multi-purpose (High feed finishing) 4PGS, 5PGS, 6PGS No. of Flutes: 4,5,6 Workpiece Materials X -3 Shank Dia. 24 1st choice 1- -S 4PGSS (Short) 5PGSS (Unit mm) Description Std. Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length No. of Flutes aDc 1 aDs L Z 4PGSS030-045-06 3 -0.014 -0.028 4.5 6 57 4 4PGSS040-060-06 4 -0.020 -0.038 6 6 57 4 4PGSS050-075-06 5 -0.020 -0.038 7.5 6 76 4 4PGSS060-090-06 6 -0.020 -0.038 9 6 76 4 4PGSS080-120-08 8 -0.025 -0.047 12 8 100 4 4PGSS100-150-10 10 -0.025 -0.047 15 10 100 4 4PGSS120-180-12 12 -0.032 -0.059 18 12 125 4 4PGSS160-240-16 16 -0.032 -0.059 24 16 125 4 4PGSS200-300-20 20 -0.040 -0.073 30 20 150 4 5PGSS250-380-25 25 -0.040 -0.073 38 25 150 5 4PGSM, 5PGSM, 6PGSM (Medium) (Unit mm) Description Std. Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length No. of Flutes 0Dc 1 0Ds L Z 4PGSM060-150-06 6 -0.020 -0.038 15 6 76 4 4PGSM080-200-08 8 -0.025 -0.047 20 8 100 4 5PGSM100-250-10 10 -0.025 -0.047 25 10 100 5 6PGSM120-300-12 12 -0.032 -0.059 30 12 125 6 6PGSM160-400-16 16 -0.032 -0.059 40 16 125 6 6PGSM200-500-20 20 -0.040 -0.073 50 20 150 6 6PGSM250-630-25 25 -0.040 -0.073 63 25 150 6 4PGSL, 5PGSL, 6PGSL (Long) (Unit mm) Description Std. Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length No. of Flutes 0Dc 1 0Ds L Z 4PGSL060-210-06 6 -0.020 -0.038 21 6 76 4 4PGSL080-280-08 8 -0.025 -0.047 28 8 100 4 5PGSL100-350-10 10 -0.025 -0.047 35 10 100 5 6PGSL120-420-12 12 -0.032 -0.059 42 12 125 6 6PGSL160-560-16 16 -0.032 -0.059 56 16 125 6 6PGSL200-700-20 20 -0.040 -0.073 70 20 150 6 6PGSL250-880-25 25 -0.040 -0.073 88 25 150 6 Web thickness ratio is 60% between the cutting edge and 1Dc and 80% for the rest. Good chip evacuation and high rigidity with chamfered edge. L16 Recommended Cutting Conditions OL38-L39 Check Availability
