59 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.59

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 59 0059 ENG Lab2u

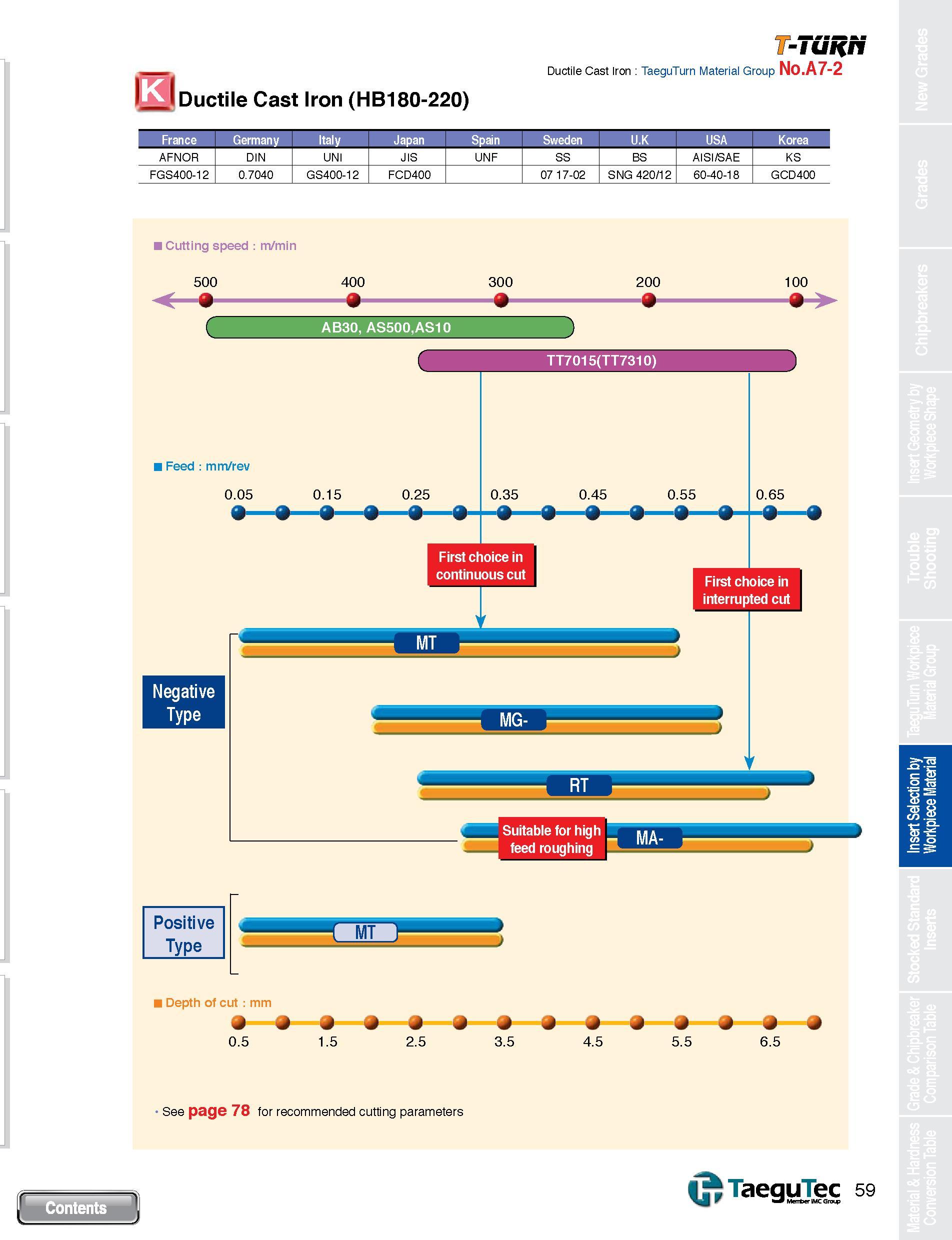

T-TURN Ductile Cast Iron TaeguTurn Material Group NO.A7-2 Ductile Cast Iron (HB180-220) France Germany Italy Japan Spain Sweden U.K USA Korea AFNOR DIN UNI JIS UNF SS BS AISI/SAE KS FGS400-12 0.7040 GS400-12 FCD400 07 17-02 SNG 420/12 60-40-18 GCD400 I Cutting speed m/min 500 400 300 200 100 I Feed mm/rev Negative Type AB30, AS500,AS10 TT7015(TT7310) Suitable for high feed roughing First choice in interrupted cut Positive Type I Depth of cut mm 0.5 1.5 2.5 3.5 4.5 5.5 6.5 See page 78 for recommended cutting parameters U TaeguTec 59 W Mcntxr IMC Grot Insert Selection by Workpiece Material
