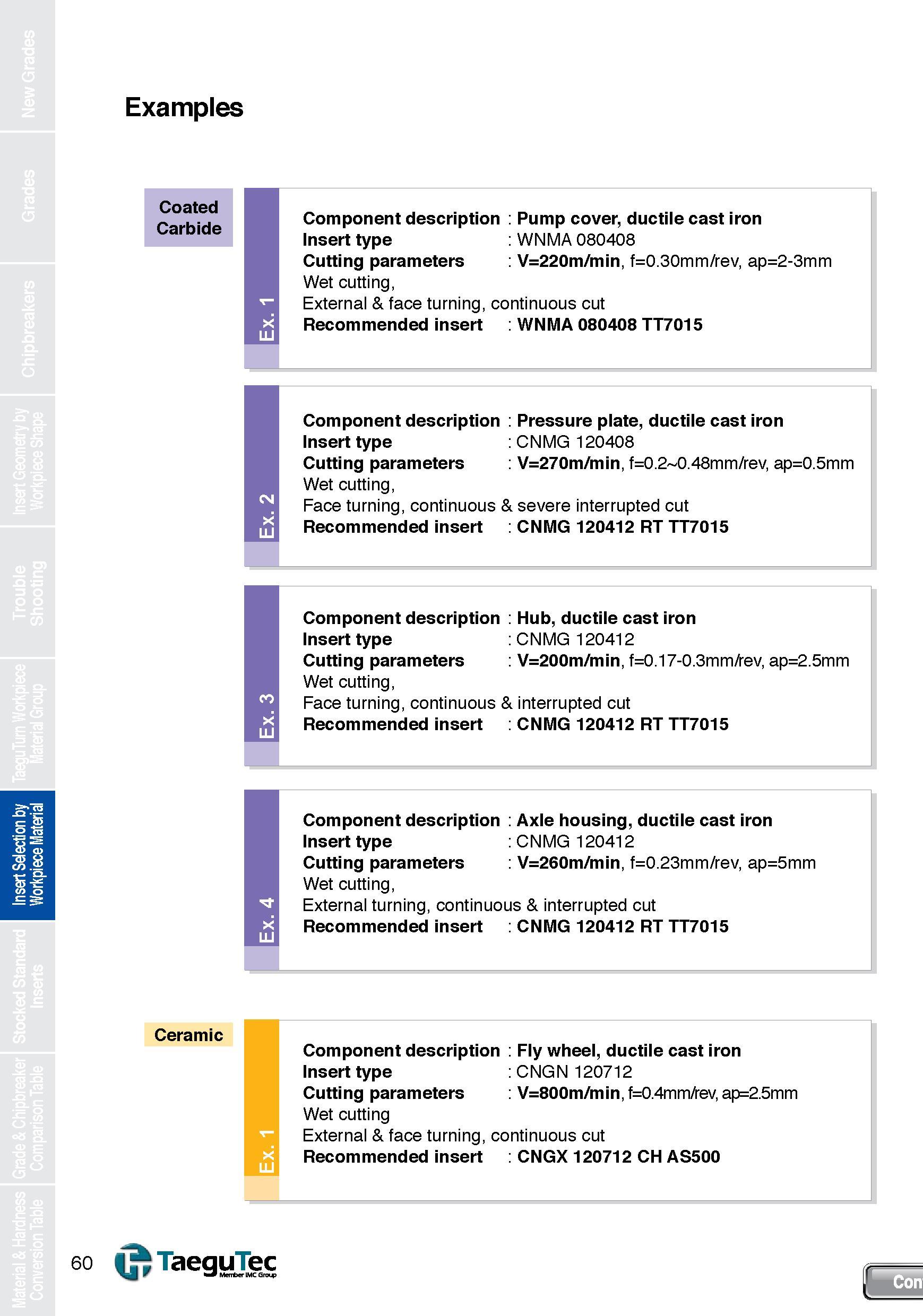

Examples Coated Carbide Component description Insert type Cutting parameters Wet cutting, External & face turning, continuous cut Recommended insert WNMA 080408 TT7015 Pump cover, ductile cast iron WNMA 080408 V=220m/min, f=0.30mm/rev, ap=2-3mm Component description Pressure plate, ductile cast iron Insert type CNMG 120408 Cutting parameters V=270m/min, f=0.2 0.48mm/rev, ap=0.5mm CM Wet cutting, Face turning, continuous & severe interrupted cut >< LD Recommended insert CNMG 120412 RT TT7015 Component description Hub, ductile cast iron Insert type CNMG 120412 Cutting parameters V=200m/min, f=0.17-0.3mm/rev, ap=2.5mm Wet cutting, Face turning, continuous & interrupted cut X LU Recommended insert CNMG 120412 RT TT7015 Component description Axle housing, ductile cast iron Insert type CNMG 120412 Cutting parameters V=260m/min, f=0.23mm/rev, ap=5mm Wet cutting, External turning, continuous & interrupted cut Recommended insert CNMG 120412 RT TT7015 Ceramic Component description Fly wheel, ductile cast iron Insert type CNGN 120712 Cutting parameters V=800m/min,f=0.4mm/rev, ap=2.5mm Wet cutting External & face turning, continuous cut Recommended insert CNGX 120712 CH AS500 TaeguTec W fc Men erlMCGrot4>
