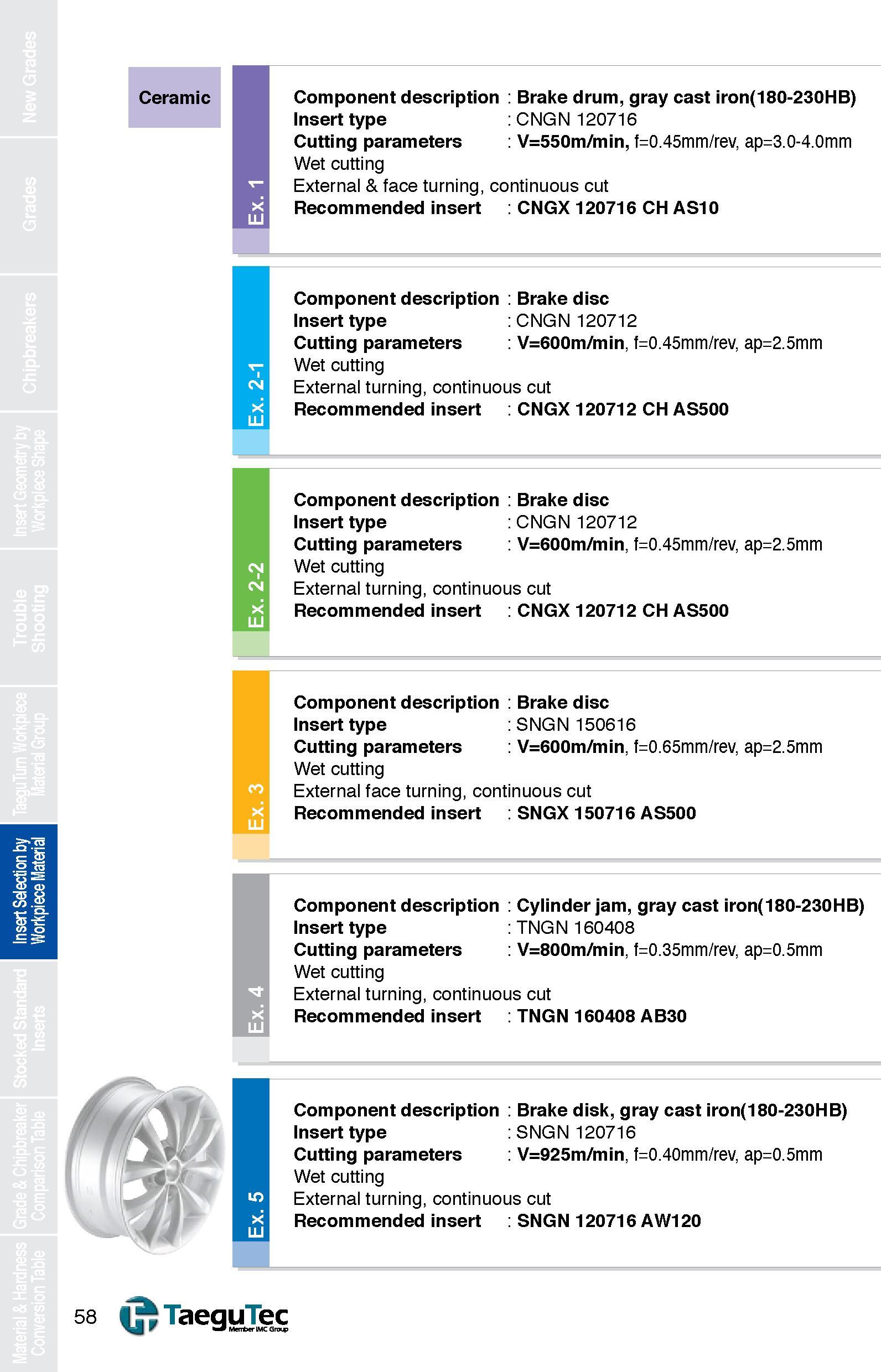

Ceramic Component description Insert type Cutting parameters Wet cutting External & face turning, continuous cut Recommended insert CNGX 120716 CH AS10 Brake drum, gray cast iron(180-230HB) CNGN 120716 V=550m/min, f=0.45mm/rev, ap=3.0-4.0mm Component description Brake disc Insert type CNGN 120712 Cutting parameters V=600m/min f= Wet cutting External turning, continuous cut Recommended insert CNGX 120712 CH AS500 0.45mm/rev, ap=2.5mm Component description Brake disc Insert type CNGN 120712 Cutting parameters V=600m/min f= Wet cutting External turning, continuous cut Recommended insert CNGX 120712 CH AS500 0.45mm/rev, ap=2.5mm Component description Insert type Cutting parameters Wet cutting External face turning, continuous cut Recommended insert SNGX 150716 AS500 Brake disc SNGN 150616 V=600m/min, f=0.65mm/rev, ap=2.5mm Component description Cylinder jam, gray cast iron(180-230HB) Insert type TNGN 160408 Cutting parameters V=800m/min, f=0.35mm/rev, ap=0.5mm Wet cutting External turning, continuous cut n Recommended insert TNGN 160408 AB30 Component description Insert type Cutting parameters Wet cutting External turning, continuous cut Recommended insert SNGN 120716 AW120 Brake disk, gray cast iron(180-230HB) SNGN 120716 V=925m/min, f=0.40mm/rev, ap=0.5mm TaeguTec W fc Men rlMCGron>
