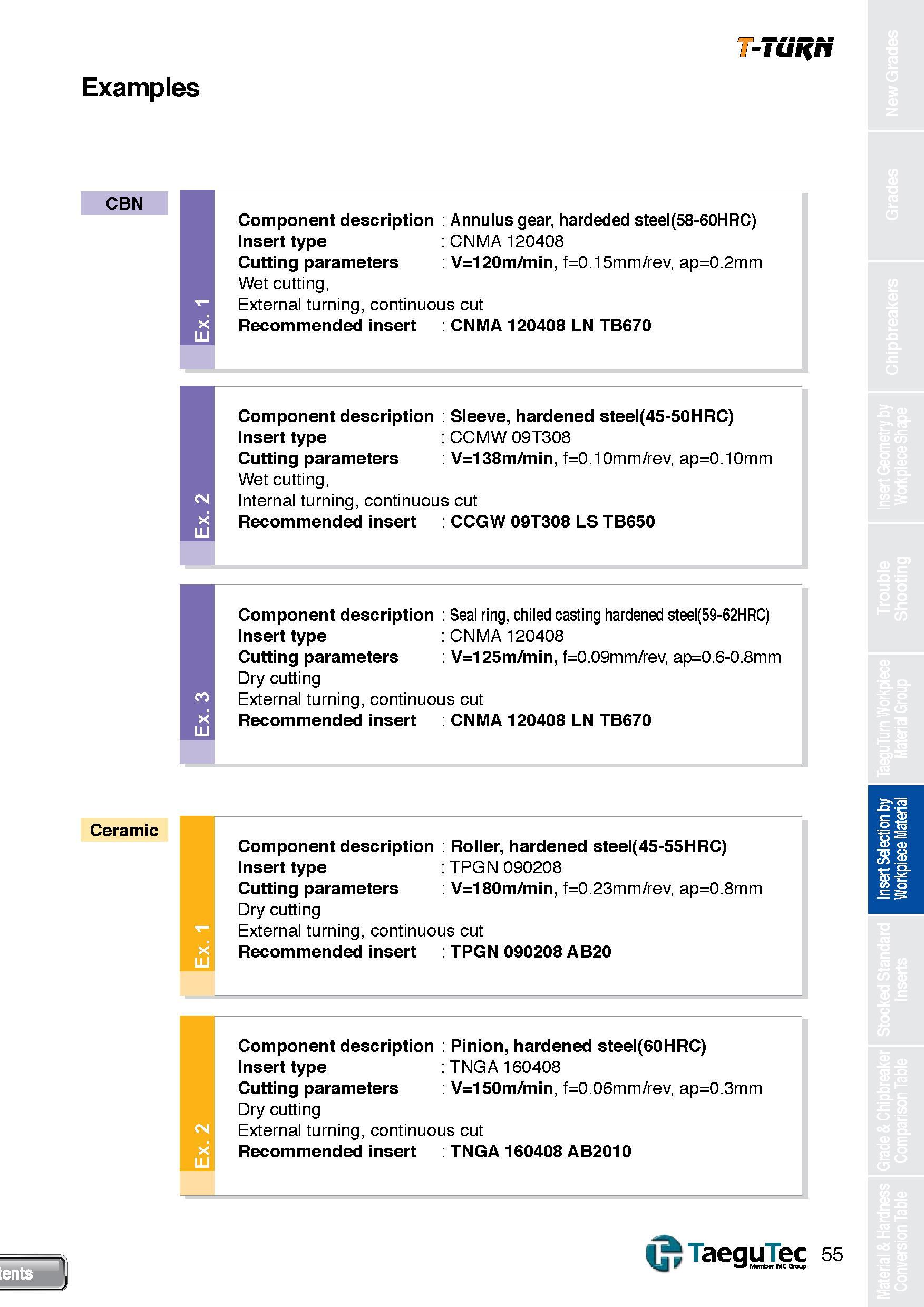

Examples T-TURN Component description Annulus gear, hardeded steel(58-60HRC) Insert type CNMA 120408 Cutting parameters V=120m/min, f=0.15mm/rev, ap=0.2mm Wet cutting, T External turning, continuous cut >< LU Recommended insert CNMA 120408 LN TB670 Component description Sleeve, hardened steel(45-50HRC) Insert type CCMW 09T308 Cutting parameters V=138m/min, f=0.10mm/rev, ap=0.10mm Wet cutting, CM Internal turning, continuous cut >< LU Recommended insert CCGW 09T308 LS TB650 Component description Seal ring, chiled casting hardened steel(59-62HRC) Insert type CNMA 120408 Cutting parameters V=125m/min, f=0.09mm/rev, ap=0.6-0.8mm Dry cutting <0 External turning, continuous cut X LU Recommended insert CNMA 120408 LN TB670 Ceramic Component description Roller, hardened steel(45-55HRC) Insert type :TPGN 090208 Cutting parameters V=180m/min, f=0.23mm/rev, ap=0.8mm Dry cutting External turning, continuous cut Recommended insert TPGN 090208 AB20 Component description Pinion, hardened steel(60HRC) Insert type TNG A 160408 Cutting parameters V=150m/min, f=0.06mm/rev, ap=0.3mm Dry cutting CM External turning, continuous cut Recommended insert TNGA 160408 AB2010 tents U" TaeguTec 55 W MeiTtjerlMCQroU) Insert Selection by Workpiece Material
