52 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.52

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 52 0052 ENG Lab2u

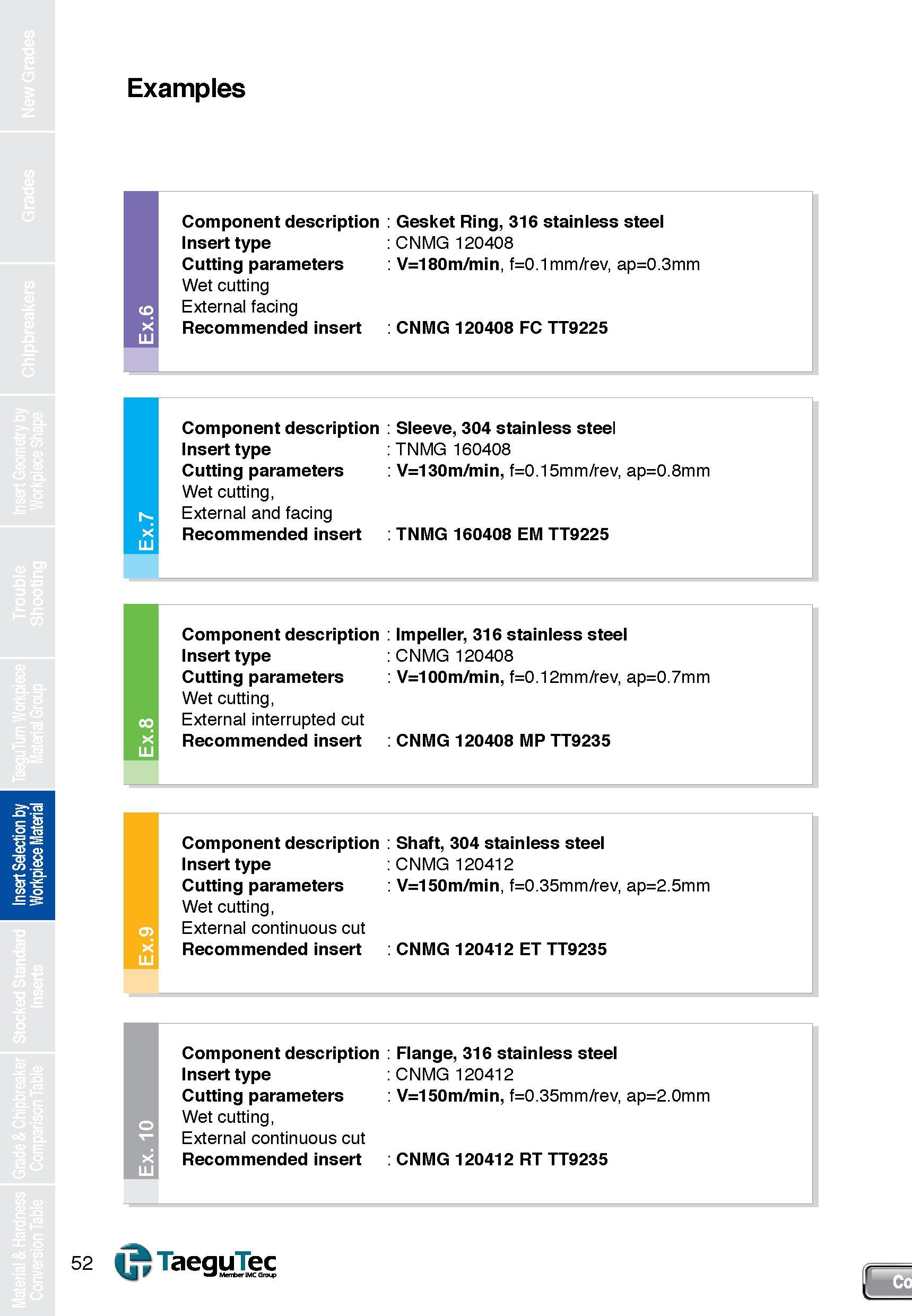

Examples Component description Gesket Ring, 316 stainless steel Insert type CNMG 120408 Cutting parameters V=180m/min, f=0.1 mm/rev, ap=0.3mm Wet cutting External facing Recommended insert CNMG 120408 FC TT9225 Component description Sleeve, 304 stainless steel Insert type TNMG 160408 Cutting parameters V=130m/min, f=0.15mm/rev, ap=0.8mm Wet cutting, External and facing TNMG 160408 EM TT9225 Component description Impeller, 316 stainless steel Insert type CNMG 120408 Cutting parameters V=100m/min, f=0.12mm/rev, ap=0.7mm Wet cutting, External interrupted cut Recommended insert CNMG 120408 MP TT9235 Component description Shaft, 304 stainless steel Insert type CNMG 120412 Cutting parameters V=150m/min, f=0.35mm/rev, ap=2.5mm Wet cutting, External continuous cut Recommended insert CNMG 120412 ET TT9235 Component description Flange, 316 stainless steel Insert type CNMG 120412 Cutting parameters V=150m/min, f=0.35mm/rev, ap=2.0mm Wet cutting, External continuous cut Recommended insert CNMG 120412 RT TT9235 TaeguTec W fc Men rlMCGron>
