51 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.51

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 51 0051 ENG Lab2u

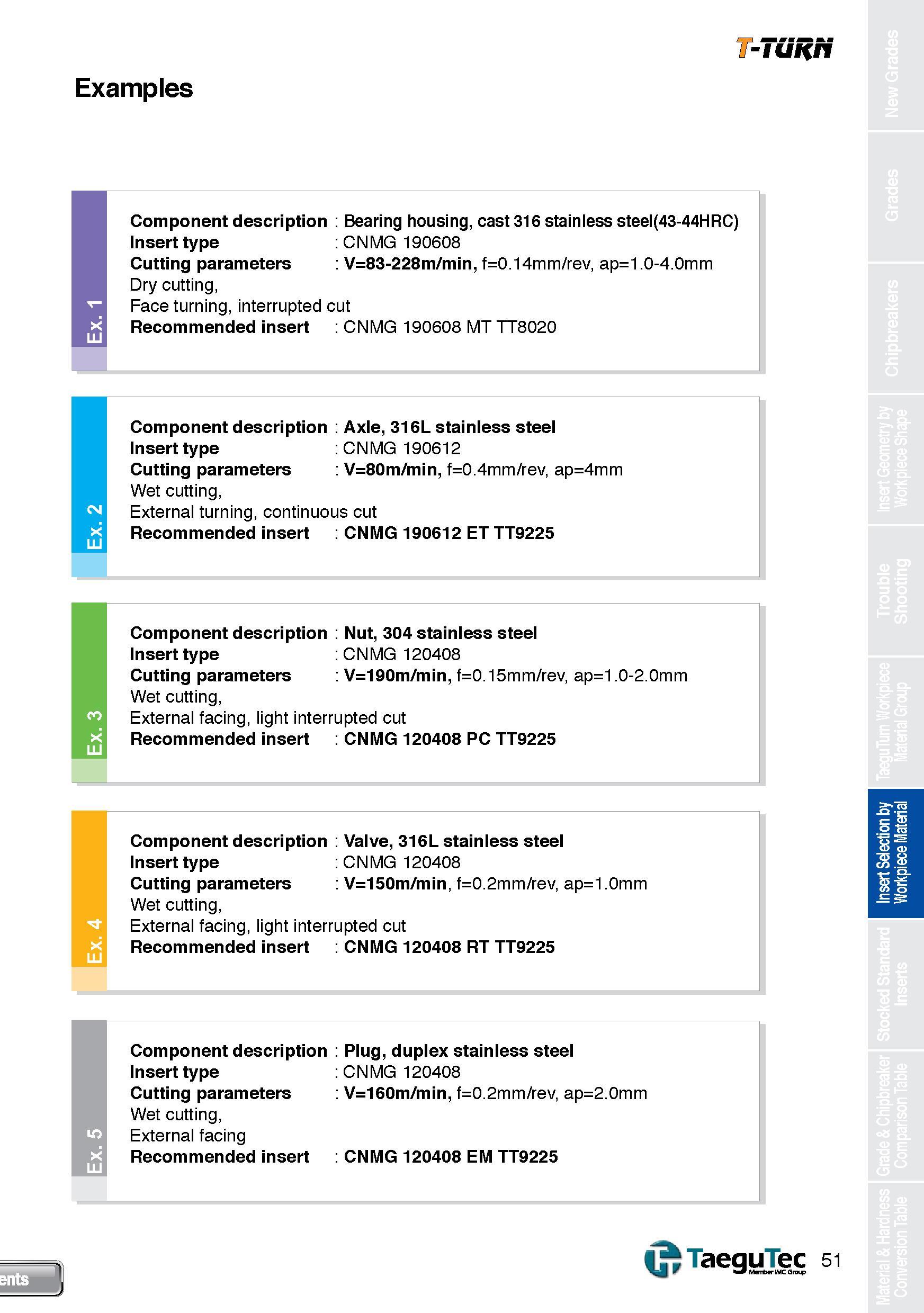

Examples T-TURN Component description Bearing housing, cast 316 stainless steel(43-44HRC) Insert type CNMG 190608 Cutting parameters V=83-228m/min, f=0.14mm/rev, ap=1.0-4.0mm Dry cutting, Face turning, interrupted cut Recommended insert CNMG 190608 MT TT8020 Component description Axle, 316L stainless steel Insert type CNMG 190612 Cutting parameters V=80m/min, f=0.4mm/rev, ap=4mm Wet cutting, CM External turning, continuous cut X Recommended insert CNMG 190612 ET TT9225 LU Component description Nut, 304 stainless steel Insert type CNMG 120408 Cutting parameters V=190m/min, f=0.15mm/rev, ap=1.0-2.0mm Wet cutting, External facing, light interrupted cut B9 Recommended insert CNMG 120408 PC TT9225 I Component description Valve, 316L stainless steel Insert type CNMG 120408 Cutting parameters V=150m/min, f=0.2mm/rev, ap=1 0mm Wet cutting, External facing, light interrupted cut Recommended insert CNMG 120408 RT TT9225 Component description Plug, duplex stainless steel Insert type CNMG 120408 Cutting parameters V=160m/min, f=0.2mm/rev, ap=2.0mm Wet cutting, External facing Recommended insert CNMG 120408 EM TT9225 ents U" TaeguTec 51 W MeiTtjerlMCQroU) Insert Selection by Workpiece Material
