53 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.53

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 53 0053 ENG Lab2u

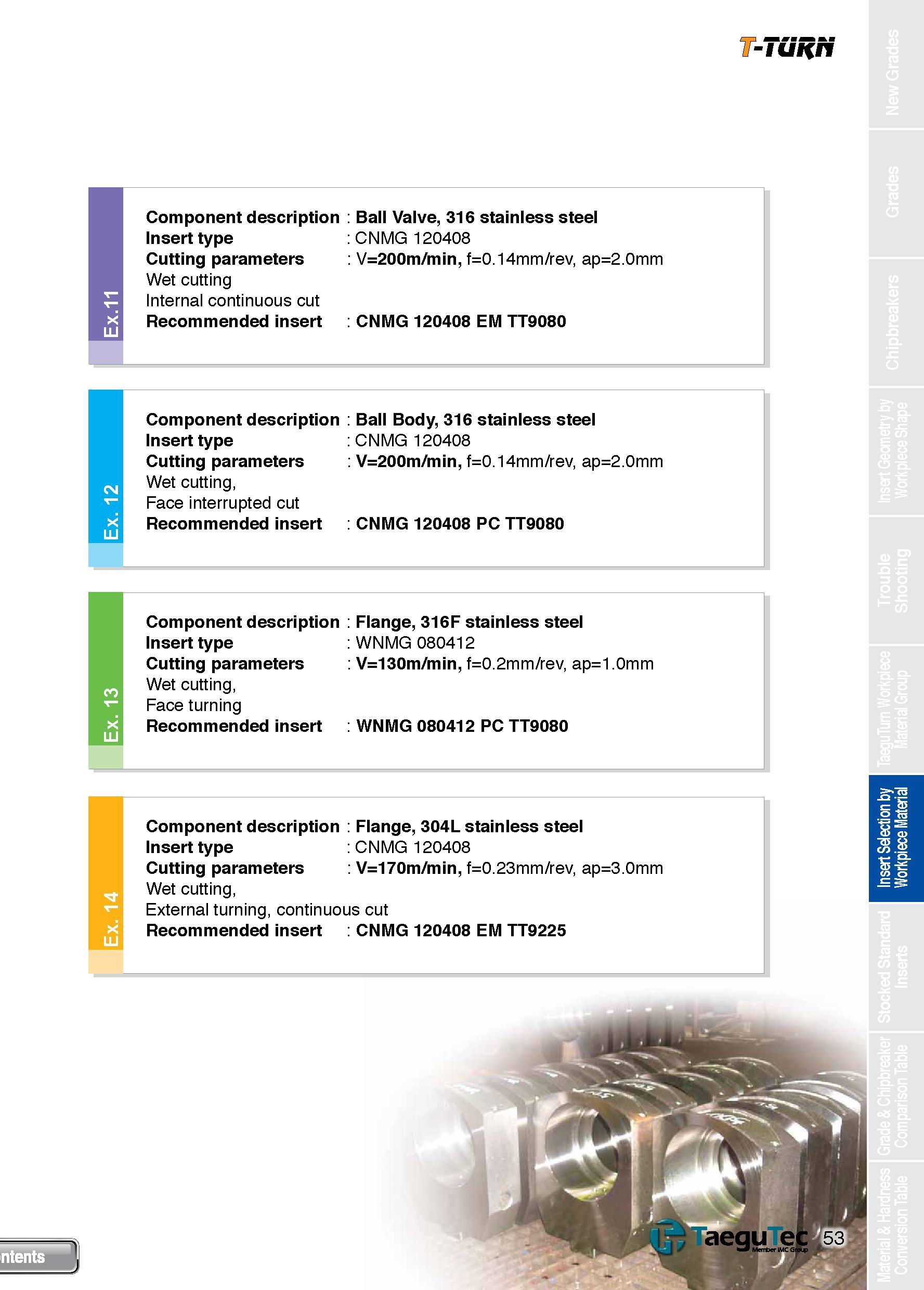

T-TURN Component description Ball Valve, 316 stainless steel Insert type CNMG 120408 Cutting parameters V=200m/min, f=0.14mm/rev, ap=2.0mm Wet cutting Internal continuous cut CNMG 120408 EM TT9080 Component description Ball Body, 316 stainless steel Insert type CNMG 120408 Cutting parameters V=200m/min, f=0.14mm/rev, ap=2.0mm CM Wet cutting, T Face interrupted cut X LU Recommended insert CNMG 120408 PC TT9080 Component description Flange, 316F stainless steel Insert type WNMG 080412 Cutting parameters V=130m/min, f=0.2mm/rev, ap=1.0mm Wet cutting, m Face turning I Recommended insert WNMG 080412 PC TT9080 A j Component description Flange, 304L stainless steel Insert type CNMG 120408 Cutting parameters V=170m/min, f=0.23mm/rev, ap=3.0mm Wet cutting, External turning, continuous cut Recommended insert CNMG 120408 EM TT9225 Insert Selection by Workpiece Material
