56 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.56

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 56 0056 ENG Lab2u

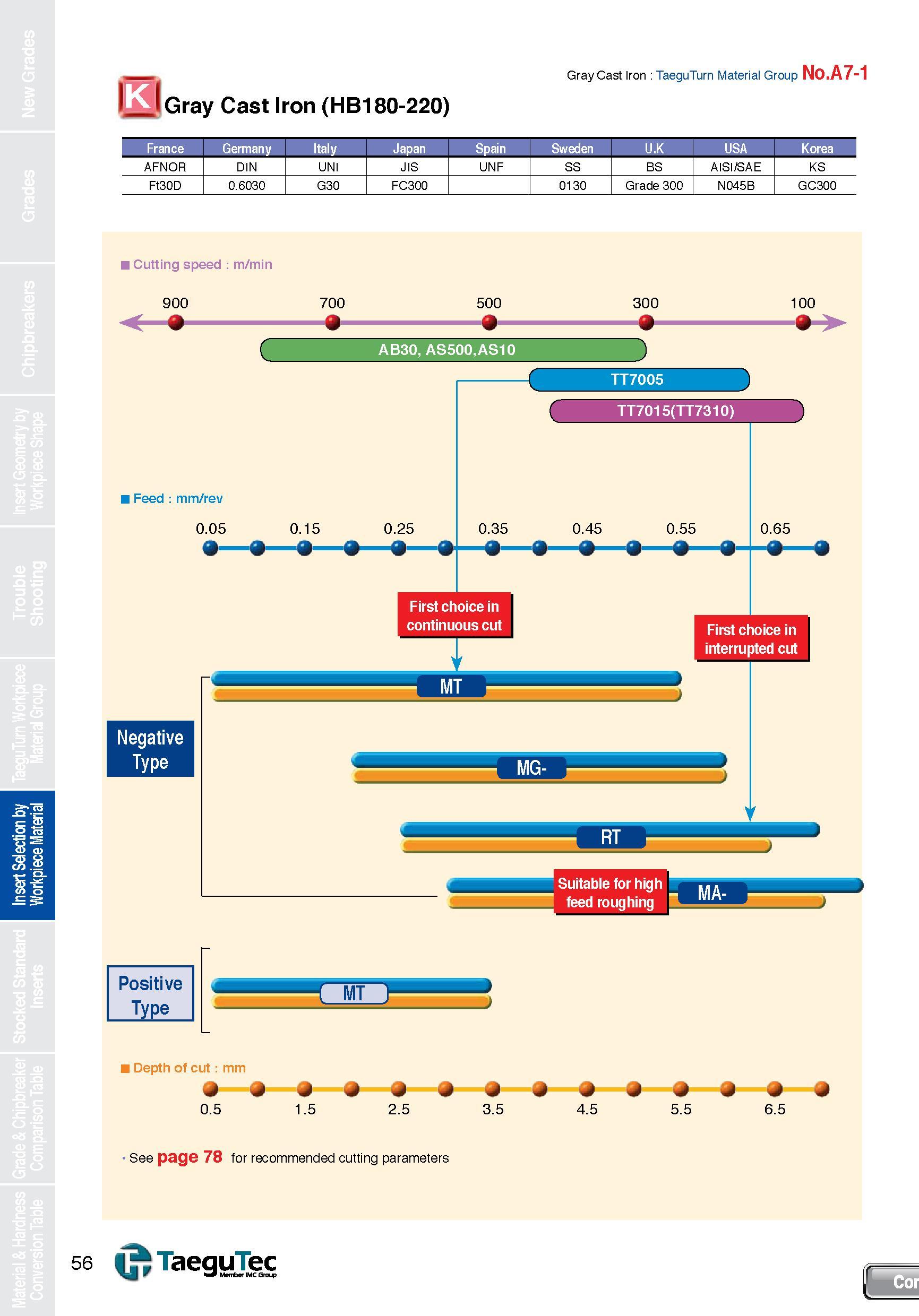

Gray Cast Iron (HB180-220) Gray Cast Iron TaeguTurn Material Group NO.A7-1 France Germany Italy Japan Spain Sweden U.K USA Korea AFNOR DIN UNI JIS UNF SS BS AISI/SAE KS Ft30D 0.6030 G30 FC300 0130 Grade 300 N045B GC300 Cutting speed m/min 900 700 500 300 100 AB30, AS500,AS10 I Feed mm/rev 0.05 0.15 0.25 Negative Type TT7015(TT7310) 0.35 0.45 0.55 First choice in continuous cut 0.65 First choice in interrupted cut Suitable for high u, feed roughing Positive Type I Depth of cut mm 0.5 1.5 2.5 3.5 4.5 5.5 6.5 See page 78 for recommended cutting parameters U, TaeguTec W fc Men rlMCGron>
