57 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.57

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 57 0057 ENG Lab2u

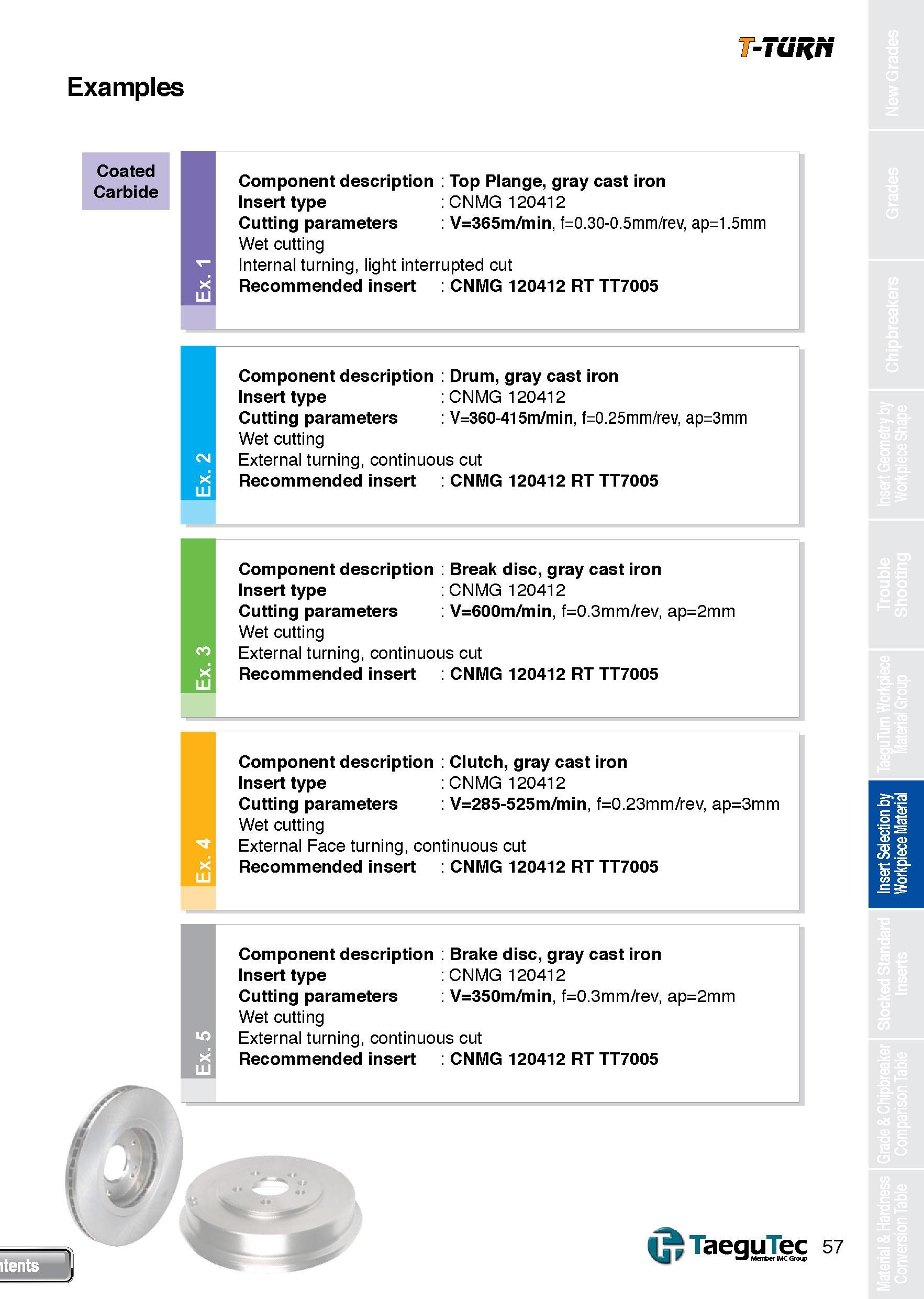

T-TURN Examples Coated Carbide Component description Insert type Cutting parameters Wet cutting Internal turning, light interrupted cut Recommended insert CNMG 120412 RT TT7005 Top Plange, gray cast iron CNMG 120412 V=365m/min, f=0.30-0.5mm/rev, ap=1.5mm Component description Drum, gray cast iron Insert type CNMG 120412 Cutting parameters V=360-415m/min, f=0.25mm/rev, ap=3mm Wet cutting External turning, continuous cut Recommended insert CNMG 120412 RT TT7005 Component description Break disc, gray cast iron Insert type CNMG 120412 Cutting parameters V=600m/min, f=0.3mm/rev, ap=2mm Wet cutting External turning, continuous cut Recommended insert CNMG 120412 RT TT7005 Component description Insert type Cutting parameters Wet cutting External Face turning, continuous cut Recommended insert CNMG 120412 RT TT7005 Clutch, gray cast iron CNMG 120412 V=285-525m/min, f=0.23mm/rev, ap=3mm Component description Brake disc, gray cast iron Insert type CNMG 120412 Cutting parameters V=350m/min, f=0.3mm/rev, ap=2mm Wet cutting w External turning, continuous cut & Recommended insert CNMG 120412 RT TT7005 j U TaeguTec 57 W Mcntxr IMC Grot Insert Selection by Workpiece Material
