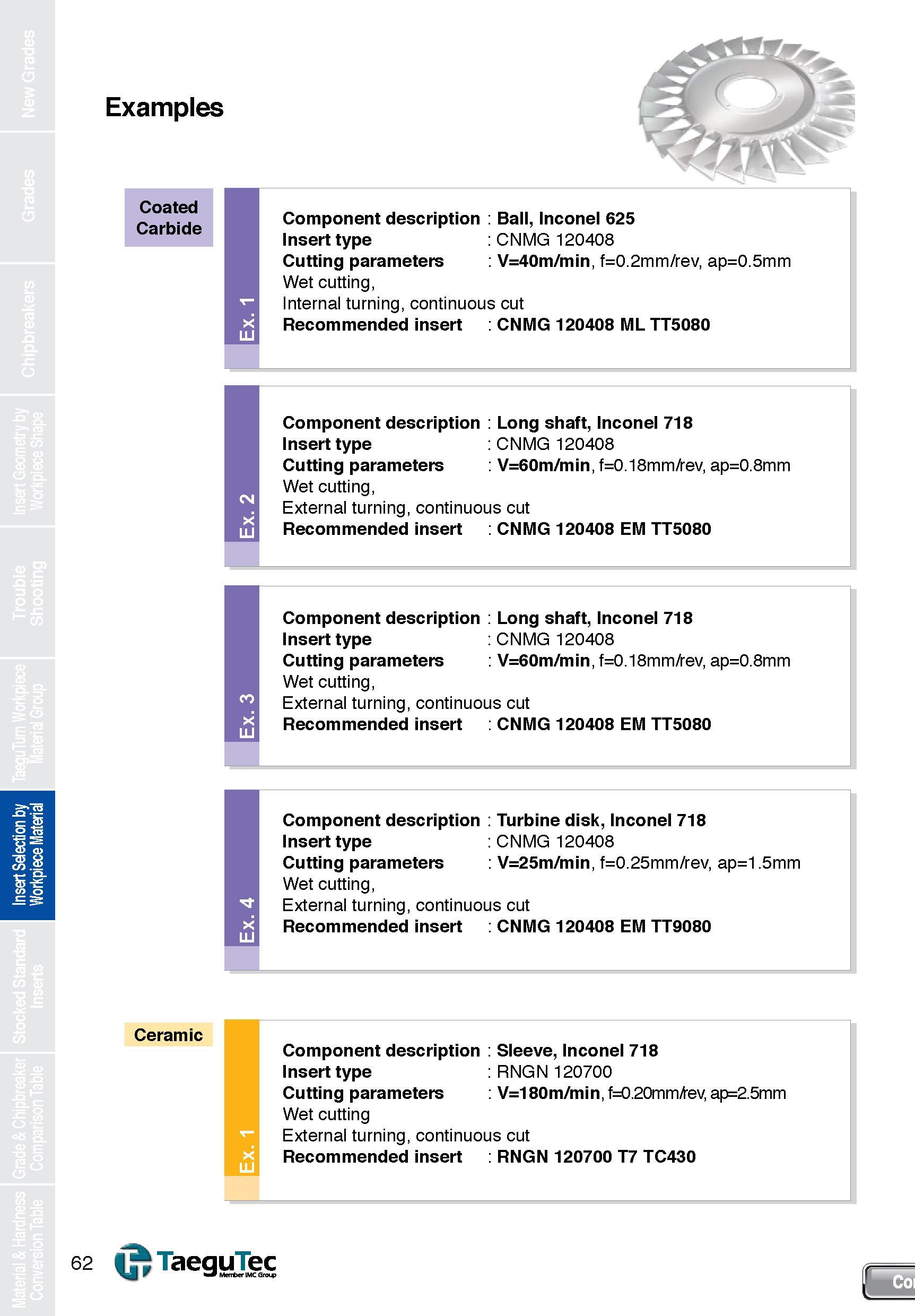

Insert Selection by Workpiece Material Examples Coated Carbide Component description Ball, Inconel 625 Insert type CNMG 120408 Cutting parameters V=40m/min, f=0.2mm/rev, ap=0.5mm Wet cutting, T Internal turning, continuous cut >< Recommended insert CNMG 120408 ML TT5080 LU Component description Long shaft, Inconel 718 Insert type CNMG 120408 Cutting parameters V=60m/min, f=0.18mm/rev, ap=0.8mm CM Wet cutting, External turning, continuous cut LU Recommended insert CNMG 120408 EM TT5080 Component description Long shaft, Inconel 718 Insert type CNMG 120408 Cutting parameters V=60m/min, f=0.18mm/rev, ap=0.8mm Wet cutting, External turning, continuous cut X LU Recommended insert CNMG 120408 EM TT5080 Component description Turbine disk, Inconel 718 Insert type CNMG 120408 Cutting parameters V=25m/min, f=0.25mm/rev, ap=1.5mm Wet cutting, External turning, continuous cut Recommended insert CNMG 120408 EM TT9080 Ceramic Component description Sleeve, Inconel 718 Insert type RNGN 120700 Cutting parameters V=180m/min, f=0.20mmAev, ap=2.5mm Wet cutting External turning, continuous cut Recommended insert RNGN 120700 T7 TC430 62 TaeguTec V fc Men rlMCGron>
