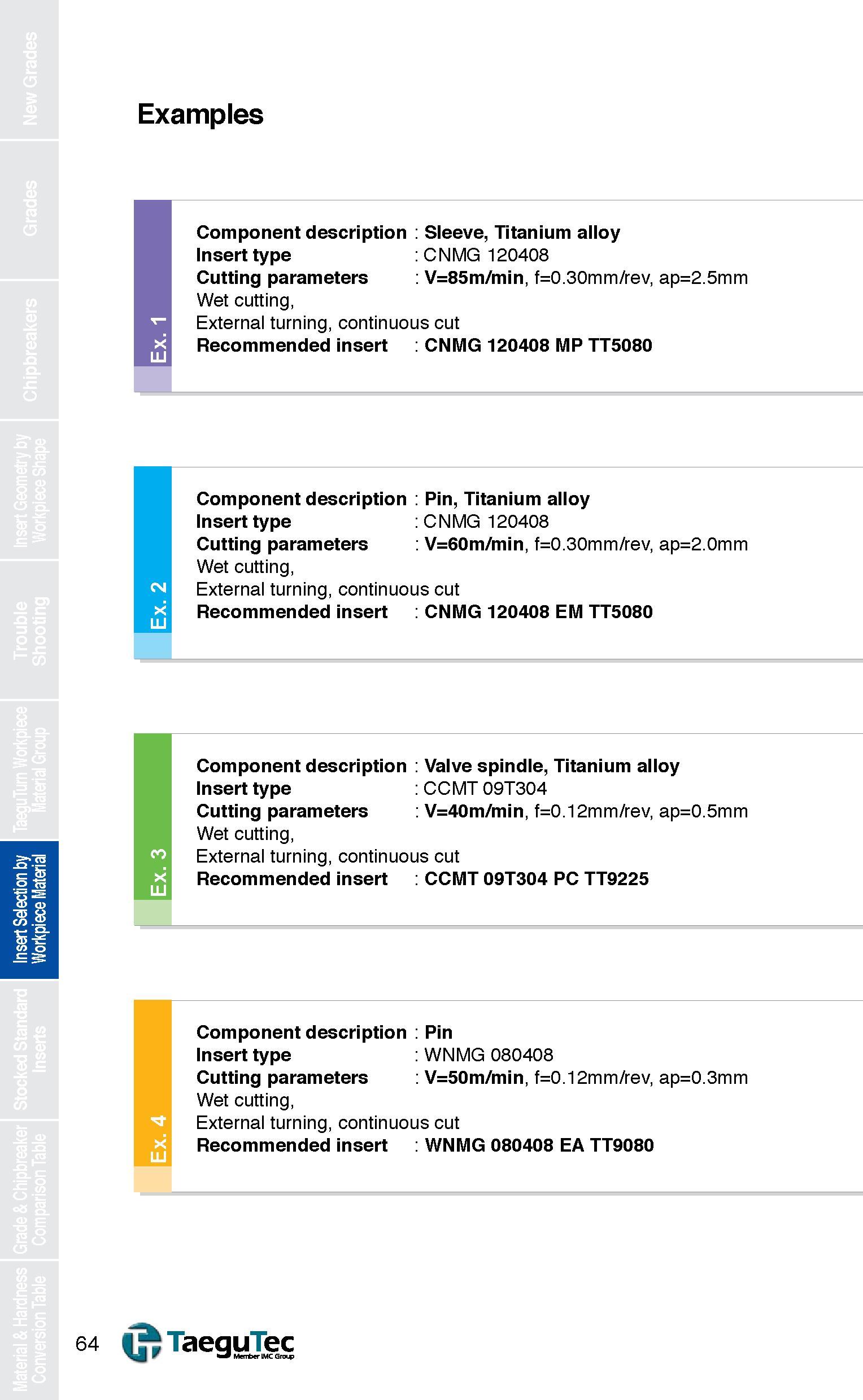

Examples I Component description Sleeve, Titanium alloy Insert type CNMG 120408 Cutting parameters V=85m/min, f=0.30mm/rev, ap=2.5mm Wet cutting, External turning, continuous cut Recommended insert CNMG 120408 MP TT5080 Component description Pin, Titanium alloy Insert type CNMG 120408 Cutting parameters V=60m/min, f=0.30mm/rev, ap=2.0mm Wet cutting, External turning, continuous cut Recommended insert CNMG 120408 EM TT5080 Component description Valve spindle, Titanium alloy Insert type CCMT 09T304 Cutting parameters V=40m/min, f=0.12mm/rev, ap=0.5mm Wet cutting, External turning, continuous cut R9 Recommended insert CCMT 09T304 PC TT9225 I Component description Pin Insert type WNMG 080408 Cutting parameters V=50m/min, f=0.12mm/rev, ap=0.3mm Wet cutting, External turning, continuous cut Recommended insert WNMG 080408 EA TT9080 TaeguTec W fc Men erlMCGrot4>
