66 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.66

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 66 0066 ENG Lab2u

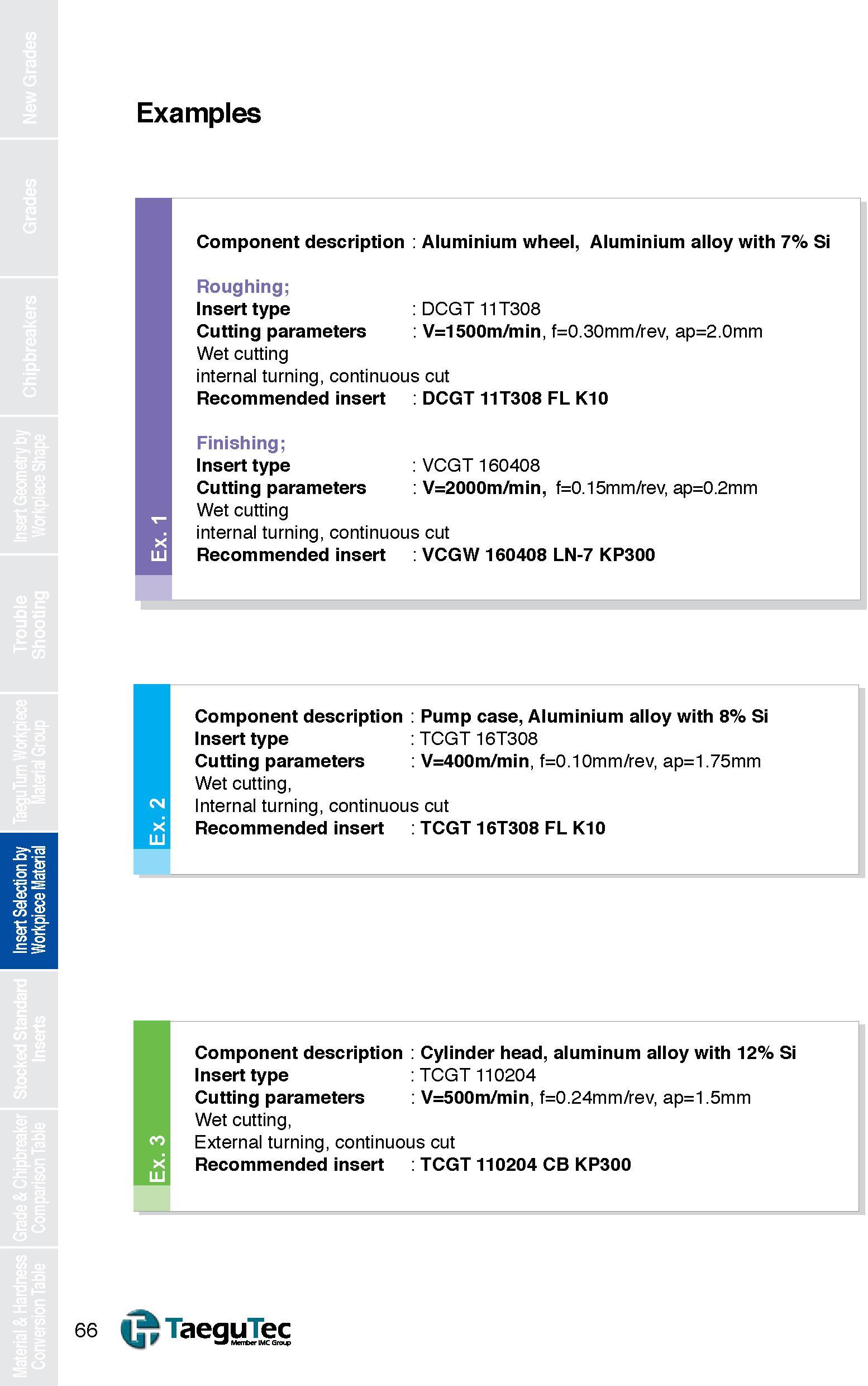

Examples Component description Aluminium wheel, Aluminium alloy with 7% Si Roughing; Insert type DCGT 11T308 Cutting parameters V=1500m/min, f=0.30mm/rev, ap=2.0mm Wet cutting internal turning, continuous cut Recommended insert DCGT 11T308 FL K10 Finishing; Insert type VCGT 160408 Cutting parameters V=2000m/min, f=0.15mm/rev, ap=0.2mm Wet cutting internal turning, continuous cut Recommended insert VCGW 160408 LN-7 KP300 Component description Pump case, Aluminium alloy with 8% Si Insert type TCGT 16T308 Cutting parameters V=400m/min, f=0.10mm/rev, ap=1.75mm Wet cutting, CM Internal turning, continuous cut >< LU Recommended insert TCGT 16T308 FL K10 Component description Cylinder head, aluminum alloy with 12% Si Insert type TCGT 110204 Cutting parameters V=500m/min, f=0.24mm/rev, ap=1.5mm Wet cutting, External turning, continuous cut Recommended insert TCGT 110204 CB KP300 TaeguTec W fc Men rlMCGron>
