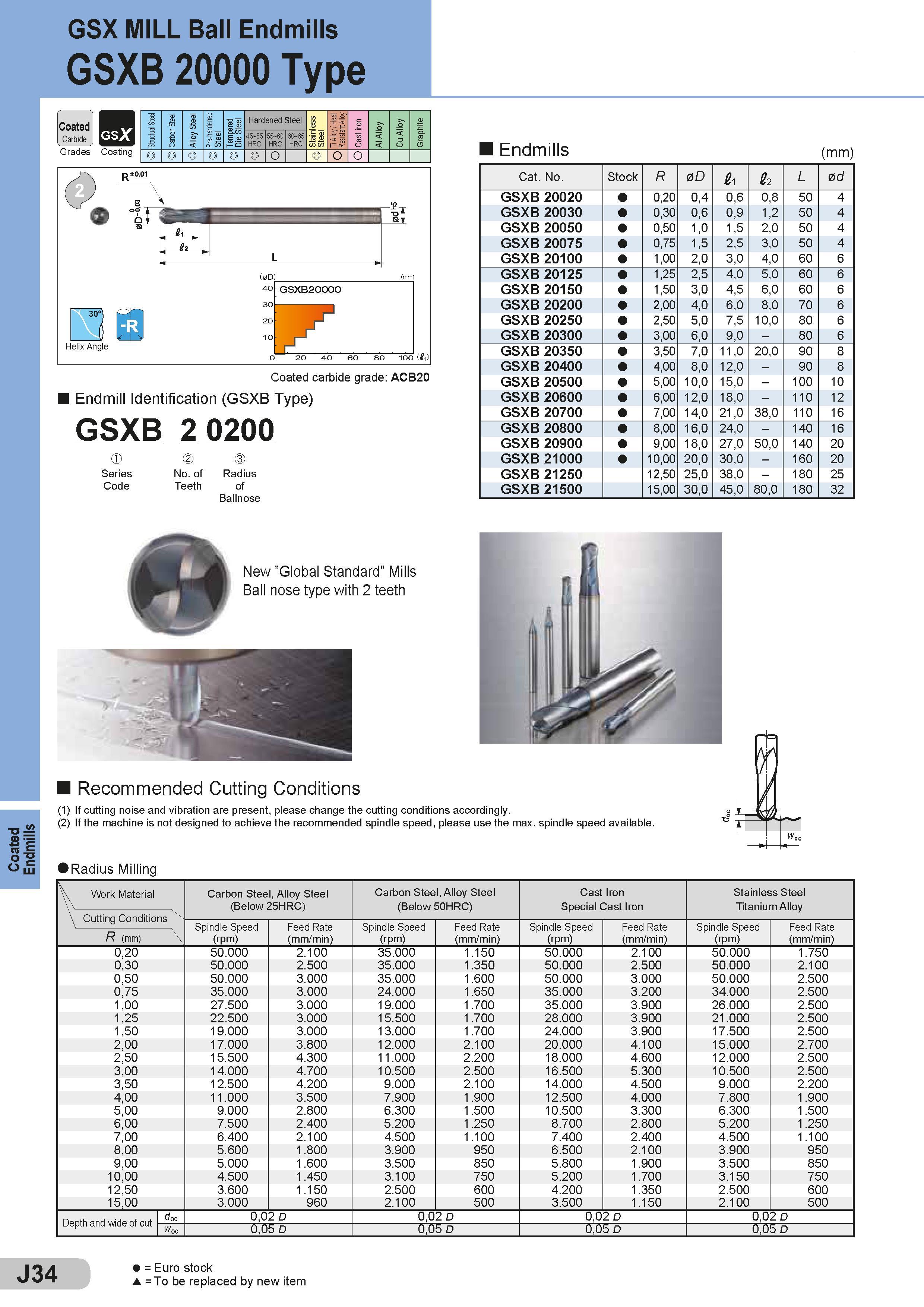

Coated Endmills GSX MILL Ball Endmills GSXB 20000 Type Coated Carbide Grades Coating Stmctual Steel Carbon Steel Alloy Steel Pre-hardened Steel Tempered Die Steel Hardened Steel Stainless Steel Ti Alloy / Heat Resistant Alloy Cast iron Al Alloy Cu Alloy Graphite 45 55 HRC 55 60 HRC 60 65 HRC 0 0 0 0 O O O 0 O O Helix Angle 100 (tfi) Coated carbide grade: ACB20 Endmill Identification (GSXB Type) GSXB 2 0200 Series Code No. of Radius Teeth of Ballnose Endmills (mm) Cat. No. Stock R 0D £1 S2 L 0d GSXB 20020 0,20 0,4 0,6 0,8 50 4 GSXB 20030 0,30 0,6 0,9 1,2 50 4 GSXB 20050 0,50 1,0 1,5 2,0 50 4 GSXB 20075 0,75 1,5 2,5 3,0 50 4 GSXB 20100 1,00 2,0 3,0 4,0 60 6 GSXB 20125 1,25 2,5 4,0 5,0 60 6 GSXB 20150 1,50 3,0 4,5 6,0 60 6 GSXB 20200 2,00 4,0 6,0 8,0 70 6 GSXB 20250 2,50 5,0 7,5 10,0 80 6 GSXB 20300 3,00 6,0 9,0 - 80 6 GSXB 20350 3,50 7,0 11,0 20,0 90 8 GSXB 20400 4,00 8,0 12,0 - 90 8 GSXB 20500 5,00 10,0 15,0 - 100 10 GSXB 20600 6,00 12,0 18,0 - 110 12 GSXB 20700 7,00 14,0 21,0 38,0 110 16 GSXB 20800 8,00 16,0 24,0 - 140 16 GSXB 20900 9,00 18,0 27,0 50,0 140 20 GSXB 21000 10,00 20,0 30,0 - 160 20 GSXB 21250 12,50 25,0 38,0 - 180 25 GSXB 21500 15,00 30,0 45,0 80,0 180 32 New "Global Standard” Mills Ball nose type with 2 teeth Recommended Cutting Conditions (1) If cutting noise and vibration are present, please change the cutting conditions accordingly. (2) If the machine is not designed to achieve the recommended spindle speed, please use the max. spindle speed available. Radius Milling 0 20 40 60 80 V Work Material Carbon Steel, Alloy Steel Carbon Steel, Alloy Steel Cast Iron Stainless Steel \ Cutting Conditions N'" R (mm) \ (Below 25HRC) (Below 50HRC) Special Cast Iron Titanium Alloy Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) 0,20 50.000 2.100 35.000 1.150 50.000 2.100 50.000 1.750 0,30 50.000 2.500 35.000 1.350 50.000 2.500 50.000 2.100 0,50 50.000 3.000 35.000 1.600 50.000 3.000 50.000 2.500 0,75 35.000 3.000 24.000 1.650 35.000 3.200 34.000 2.500 1,00 27.500 3.000 19.000 1.700 35.000 3.900 26.000 2.500 1,25 22.500 3.000 15.500 1.700 28.000 3.900 21.000 2.500 1,50 19.000 3.000 13.000 1.700 24.000 3.900 17.500 2.500 2,00 17.000 3.800 12.000 2.100 20.000 4.100 15.000 2.700 2,50 15.500 4.300 11.000 2.200 18.000 4.600 12.000 2.500 3,00 14.000 4.700 10.500 2.500 16.500 5.300 10.500 2.500 3,50 12.500 4.200 9.000 2.100 14.000 4.500 9.000 2.200 4,00 11.000 3.500 7.900 1.900 12.500 4.000 7.800 1.900 5,00 9.000 2.800 6.300 1.500 10.500 3.300 6.300 1.500 6,00 7.500 2.400 5.200 1.250 8.700 2.800 5.200 1.250 7,00 6.400 2.100 4.500 1.100 7.400 2.400 4.500 1.100 8,00 5.600 1.800 3.900 950 6.500 2.100 3.900 950 9,00 5.000 1.600 3.500 850 5.800 1.900 3.500 850 10,00 4.500 1.450 3.100 750 5.200 1.700 3.150 750 12,50 3.600 1.150 2.500 600 4.200 1.350 2.500 600 15,00 3.000 960 2.100 500 3.500 1.150 2.100 500 Depth and wide of cut doc 0,02 D 0,02 D 0,02 D 0,02 D Woc 0,05 D 0,05 D 0,05 D 0,05 D J34 = Euro stock s = To be replaced by new item
