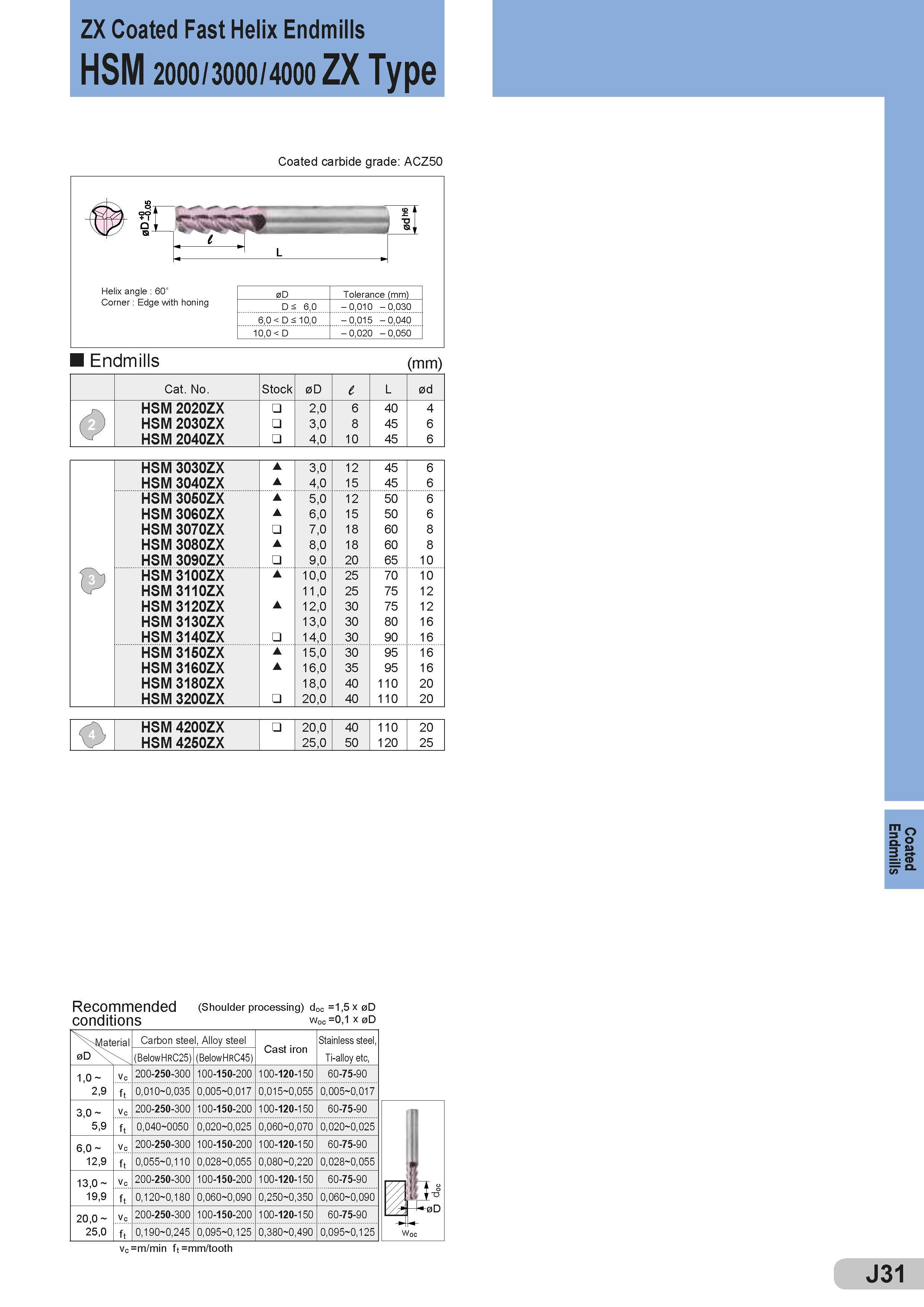

ZX Coated Fast Helix Endmills HSM 2000/3000/4000 ZX Type Coated carbide grade: ACZ50 Helix angle : 60° Corner : Edge with honing 0D Tolerance (mm) D < 6,0 - 0,010 - 0,030 6,0 < D < 10,0 - 0,015 - 0,040 10,0 < D - 0,020 - 0,050 Endmills (mm) Cat. No. Stock 0D l L 0d HSM 2020ZX 2,0 6 40 4 2j HSM 2030ZX 3,0 8 45 6 HSM 2040ZX 4,0 10 45 6 HSM 3030ZX s 3,0 12 45 6 HSM 3040ZX s 4,0 15 45 6 HSM 3050ZX s 5,0 12 50 6 HSM 3060ZX s 6,0 15 50 6 HSM 3070ZX 7,0 18 60 8 HSM 3080ZX s 8,0 18 60 8 HSM 3090ZX 9,0 20 65 10 HSM 3100ZX s 10,0 25 70 10 HSM 3110ZX 11,0 25 75 12 HSM 3120ZX s 12,0 30 75 12 HSM 3130ZX 13,0 30 80 16 HSM 3140ZX 14,0 30 90 16 HSM 3150ZX s 15,0 30 95 16 HSM 3160ZX s 16,0 35 95 16 HSM 3180ZX 18,0 40 110 20 HSM 3200ZX 20,0 40 110 20 HSM 4200ZX 20,0 40 110 20 HSM 4250ZX 25,0 50 120 25 Recommended (Shoulder processing) doc =1,5 x 0D conditions woc =0,1 x 0D Xr-Material Carbon steel, Alloy steel Cast iron Stainless steel, 0D \ (BelowHRC25) (BelowHRC45) Ti-alloy etc, 1,0 Vc 200-250-300 100-150-200 100-120-150 60-75-90 2,9 ft 0,010 0,035 0,005-0,017 0,015-0,055 0,005-0,017 3,0 Vc 200-250-300 100-150-200 100-120-150 60-75-90 El 5,9 ft 0,040-0050 0,020-0,025 0,060-0,070 0,020-0,025 6,0 Vc 200-250-300 100-150-200 100-120-150 60-75-90 12,9 ft 0,055-0,110 0,028-0,055 0,080-0,220 0,028-0,055 13,0 Vc 200-250-300 100-150-200 100-120-150 60-75-90 n 19,9 ft 0,120-0,180 0,060-0,090 0,250-0,350 0,060-0,090 20,0 Vc 200-250-300 100-150-200 100-120-150 60-75-90 -W0D 25,0 ft 0,190-0,245 0,095-0,125 0,380-0,490 0,095-0,125 w c Vc =m/min ft =mm/tooth J31 Coated Endmills
