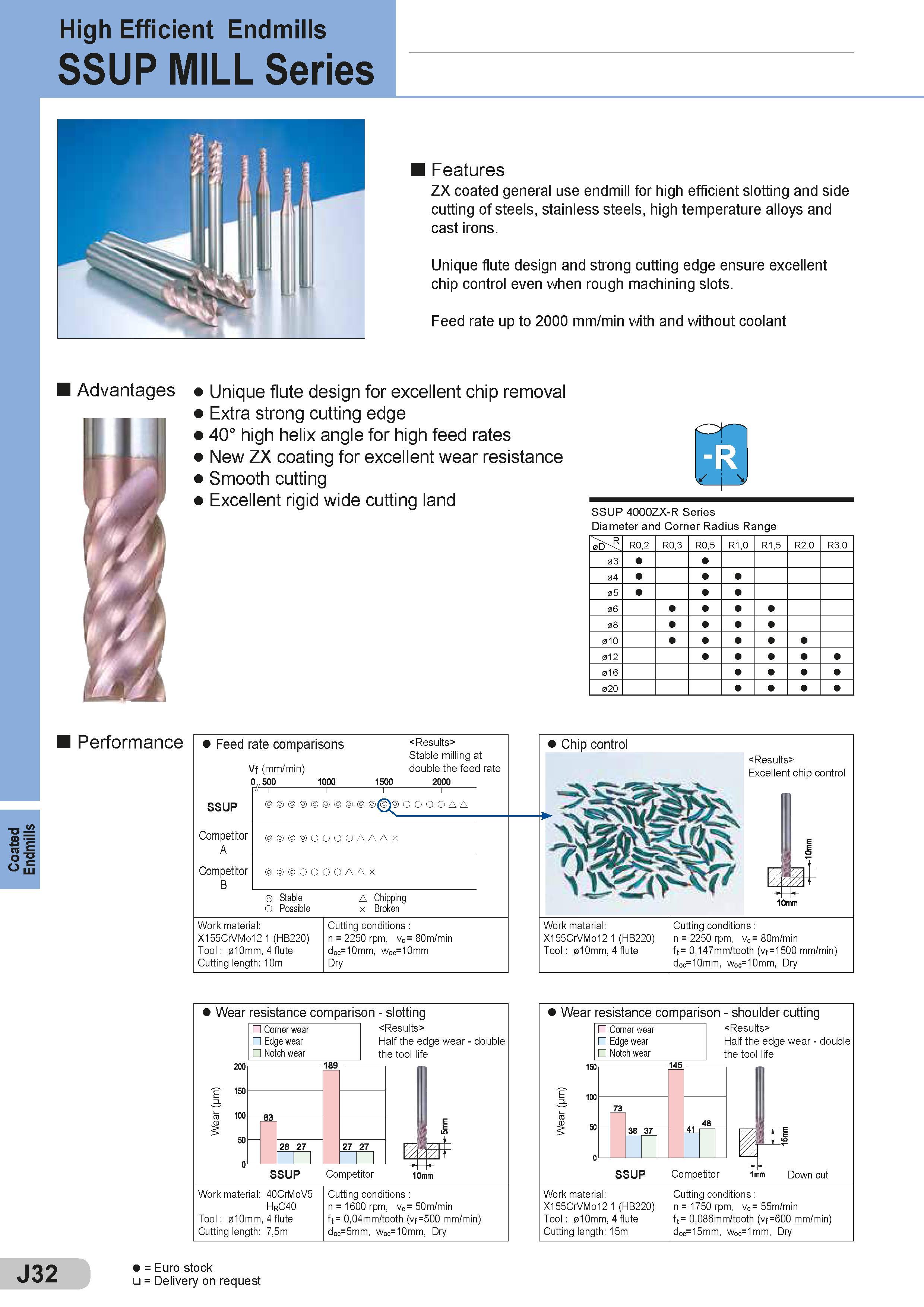

Coated Endmills High Efficient Endmills SSUP MILL Series Features ZX coated general use endmill for high efficient slotting and side cutting of steels, stainless steels, high temperature alloys and cast irons. Unique flute design and strong cutting edge ensure excellent chip control even when rough machining slots. Feed rate up to 2000 mm/min with and without coolant Advantages Unique flute design for excellent chip removal Extra strong cutting edge 40° high helix angle for high feed rates New ZX coating for excellent wear resistance Smooth cutting Excellent rigid wide cutting land SSUP 4000ZX-R Series Diameter and Corner Radius Range 0p\ R0,2 R0,3 R0,5 R1,0 R1,5 R2.0 R3.0 03 04 05 06 08 010 012 016 020 Performance Feed rate comparisons Vf (mm/min) Stable milling at double the feed rate 1500 2000 SSUP Competitor A Competitor B 1 O O O O A A OOOOAAA: OOOOAA: Stable O Possible A Chipping x Broken Work material: X155CrVMo12 1 (HB220) Tool : 010mm, 4 flute Cutting length: 10m Cutting conditions : n = 2250 rpm, Vc = 80m/min doc=10mm, woc=10mm Dry Chip control Excellent chip control 10mm Work material: X155CrVMo12 1 (HB220) Tool : 010mm, 4 flute Cutting conditions : n = 2250 rpm, Vc = 80m/min ft = 0,147mm/tooth (vf=1500 mm/min) doc=10mm, woc=10mm, Dry Wear resistance comparison - slotting Corner wear Edge wear Notch wear Half the edge wear - double the tool life 200 m) 150 ar 1 100 50 0 83 28 27 27 27 I I SSUP Work material: 40CrMoV5 HrC40 Tool : 010mm, 4 flute Cutting length: 7,5m Competitor i0mm Cutting conditions : n = 1600 rpm, Vc = 50m/min ft = 0,04mm/tooth (Vf=500 mm/min) doc=5mm, woc=10mm, Dry Wear resistance comparison - shoulder cutting Corner wear Edge wear Half the edge wear - double Notch wear the tool life 145 150 m) 100 ar £ 50 0 .. 48 38 37 TI IT SSUP Work material: X155CrVMo12 1 (HB220) Tool : 010mm, 4 flute Cutting length: 15m Competitor Down cut Cutting conditions : n = 1750 rpm, Vc = 55m/min ft = 0,086mm/tooth (Vf=600 mm/min) doc=15mm, woc=1mm, Dry J32 = Euro stock = DeliVery on request
