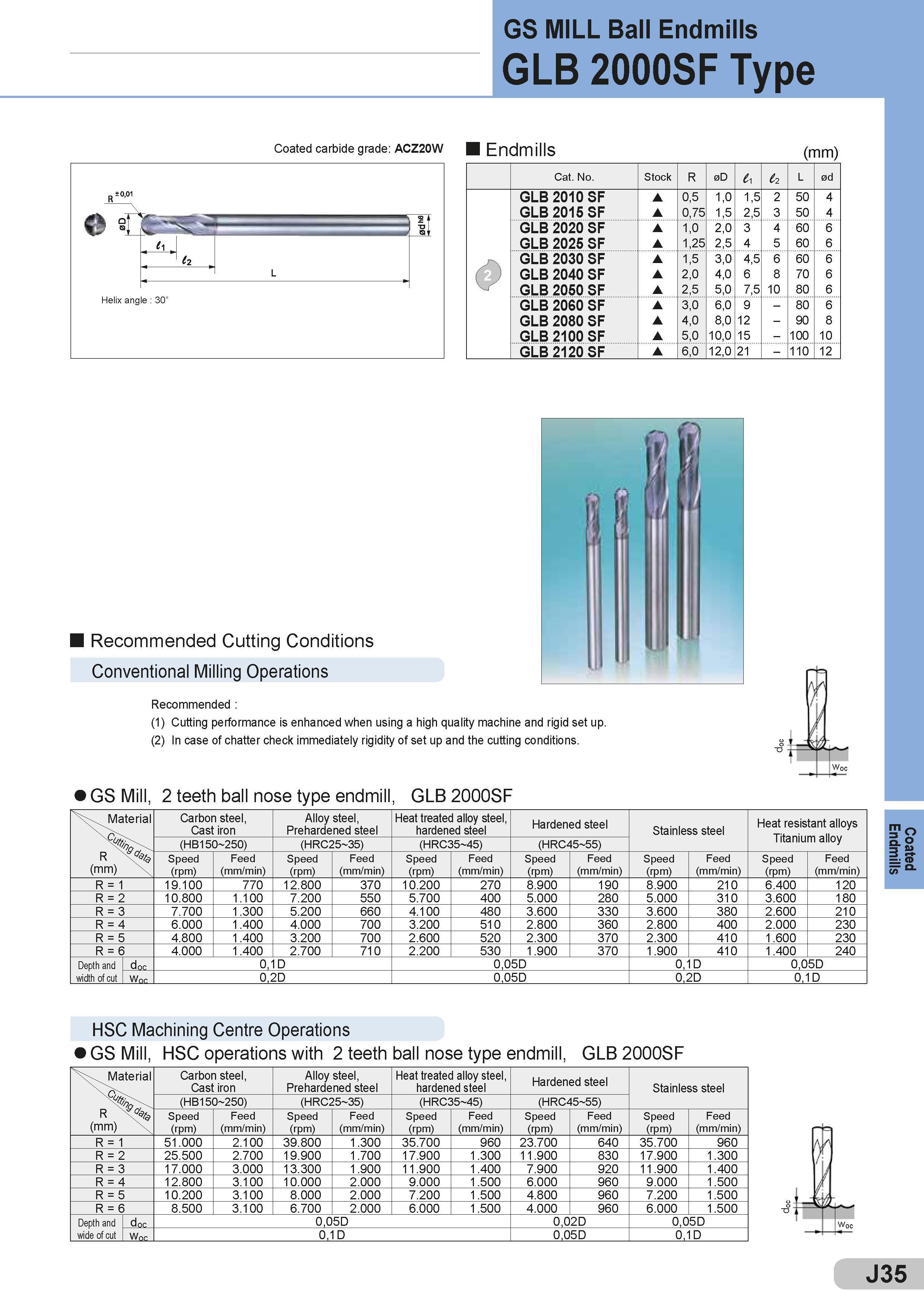

GS MILL Ball Endmills GLB 2000SF Type Coated carbide grade: ACZ20W Endmills (mm) Cat. No. Stock R 0D 6 I2 L 0d GLB 2010 SF 0,5 1,0 1,5 2 50 4 GLB 2015 SF 0,75 1,5 2,5 3 50 4 GLB 2020 SF 1,0 2,0 3 4 60 6 GLB 2025 SF 1,25 2,5 4 5 60 6 GLB 2030 SF 1,5 3,0 4,5 6 60 6 GLB 2040 SF 2,0 4,0 6 8 70 6 GLB 2050 SF 2,5 5,0 7,5 10 80 6 GLB 2060 SF 3,0 6,0 9 - 80 6 GLB 2080 SF 4,0 8,0 12 - 90 8 GLB 2100 SF 5,0 10,0 15 - 100 10 GLB 2120 SF 6,0 12,0 21 - 110 12 Recommended Cutting Conditions Conventional Milling Operations Recommended : (1) Cutting performance is enhanced when using a high quality machine and rigid set up. (2) In case of chatter check immediately rigidity of set up and the cutting conditions. GS Mill, 2 teeth ball nose type endmill, GLB 2000SF I Material R (mm) \ Carbon steel, Cast iron Alloy steel, Prehardened steel Heat treated alloy steel, hardened steel Hardened steel Stainless steel Heat resistant alloys Titanium alloy (HB150 250) (HRC25 35) (HRC35 45) (HRC45 55) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) R = 1 19.100 770 12.800 370 10.200 270 8.900 190 8.900 210 6.400 120 R = 2 10.800 1.100 7.200 550 5.700 400 5.000 280 5.000 310 3.600 180 R = 3 7.700 1.300 5.200 660 4.100 480 3.600 330 3.600 380 2.600 210 R = 4 6.000 1.400 4.000 700 3.200 510 2.800 360 2.800 400 2.000 230 R = 5 4.800 1.400 3.200 700 2.600 520 2.300 370 2.300 410 1.600 230 R = 6 4.000 1.400 2.700 710 2.200 530 1.900 370 1.900 410 1.400 240 Depth and width of cut 0,1D 0,05D 0,1D 0,05D 0,2D 0,05D 0,2D 0,1D HSC Machining Centre Operations GS Mill, HSC operations with 2 teeth ball nose type endmill, GLB 2000SF Material R (mm) Carbon steel, Cast iron Alloy steel, Prehardened steel Heat treated alloy steel, hardened steel Hardened steel Stainless steel (HB150 250) (HRC25 35) (HRC35 45) (HRC45 55) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) R = 1 51.000 2.100 39.800 1.300 35.700 960 23.700 640 35.700 960 R = 2 25.500 2.700 19.900 1.700 17.900 1.300 11.900 830 17.900 1.300 R = 3 17.000 3.000 13.300 1.900 11.900 1.400 7.900 920 11.900 1.400 R = 4 12.800 3.100 10.000 2.000 9.000 1.500 6.000 960 9.000 1.500 R = 5 10.200 3.100 8.000 2.000 7.200 1.500 4.800 960 7.200 1.500 R = 6 8.500 3.100 6.700 2.000 6.000 1.500 4.000 960 6.000 1.500 Depth and wide of cut 0,05D 0,02D 0,05D 0,1D 0,05D 0,1D Coated Endmills
