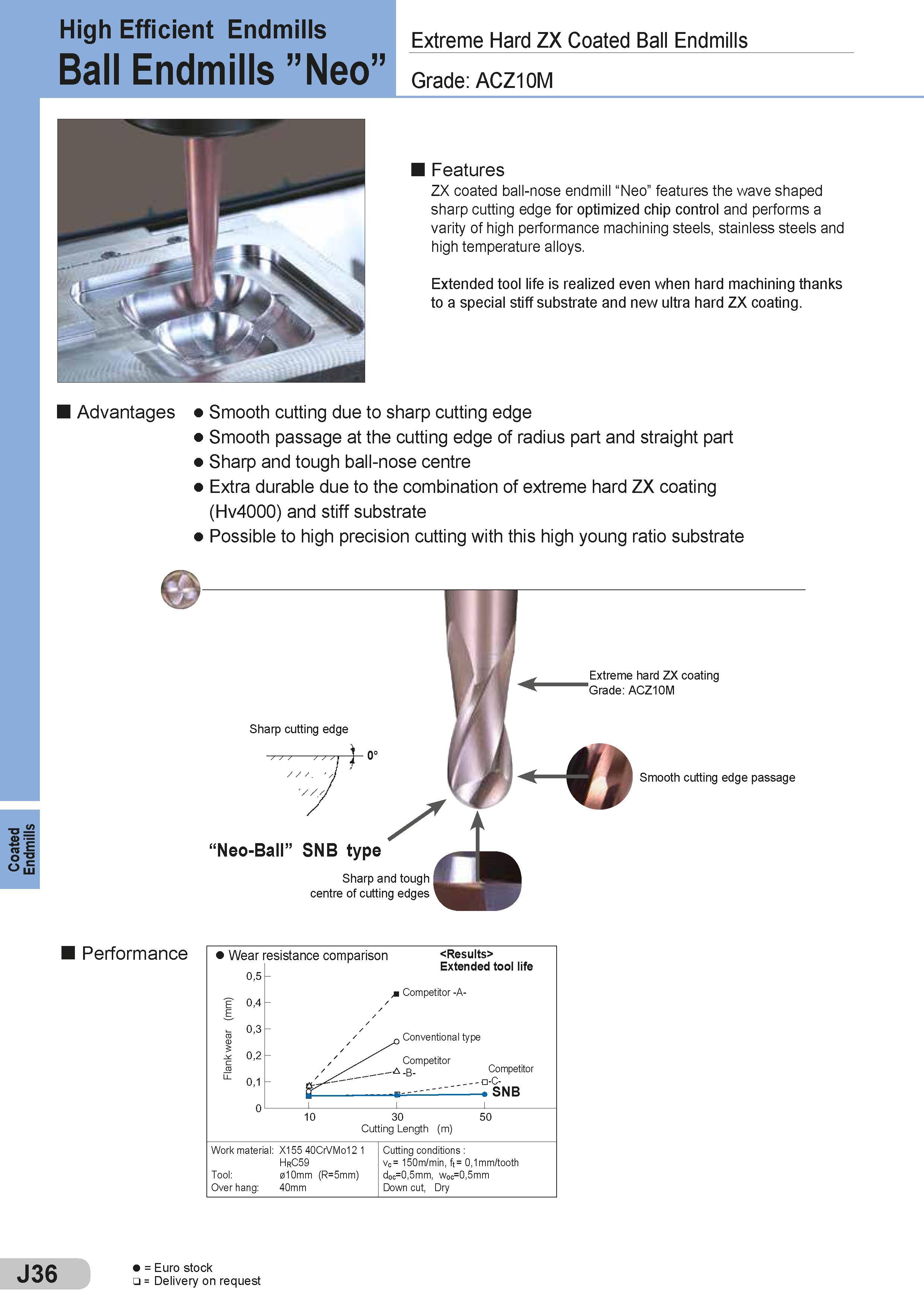

Coated Endmills High Effident Endmills Extreme Hard ZX Coated Ball Endmills Ball Endmills ”Neo” Grade: acz10m Features ZX coated ball-nose endmill “Neo” features the waVe shaped sharp cutting edge for optimized chip control and performs a Varity of high performance machining steels, stainless steels and high temperature alloys. Extended tool life is realized eVen when hard machining thanks to a special stiff substrate and new ultra hard ZX coating. AdVantages Smooth cutting due to sharp cutting edge Smooth passage at the cutting edge of radius part and straight part Sharp and tough ball-nose centre Extra durable due to the combination of extreme hard ZX coating (Hv4000) and stiff substrate Possible to high precision cutting with this high young ratio substrate Sharp cutting edge “Neo-Ball” SNB type Sharp and tough centre of cutting edges Extreme hard ZX coating Grade: ACZ10M Smooth cutting edge passage Performance Wear 0,5 m) 0,4 (m r ( 0,3 a e 0,2 n TO 0,1 0 esistance comparison Extended tool life jm Competitor -A- / / / - / jq Conventional type // Competitor / a -b- Competitor 1 1 1 10 30 50 Cutting Length (m) Work material: X155 40CrVMo12 1 HrC59 Tool: 010mm (R=5mm) Over hang: 40mm Cutting conditions : Vc = 150m/min, ft = 0,1mm/tooth doc=0,5mm, woc=0,5mm Down cut, Dry J36 = Euro stock = Delivery on request
