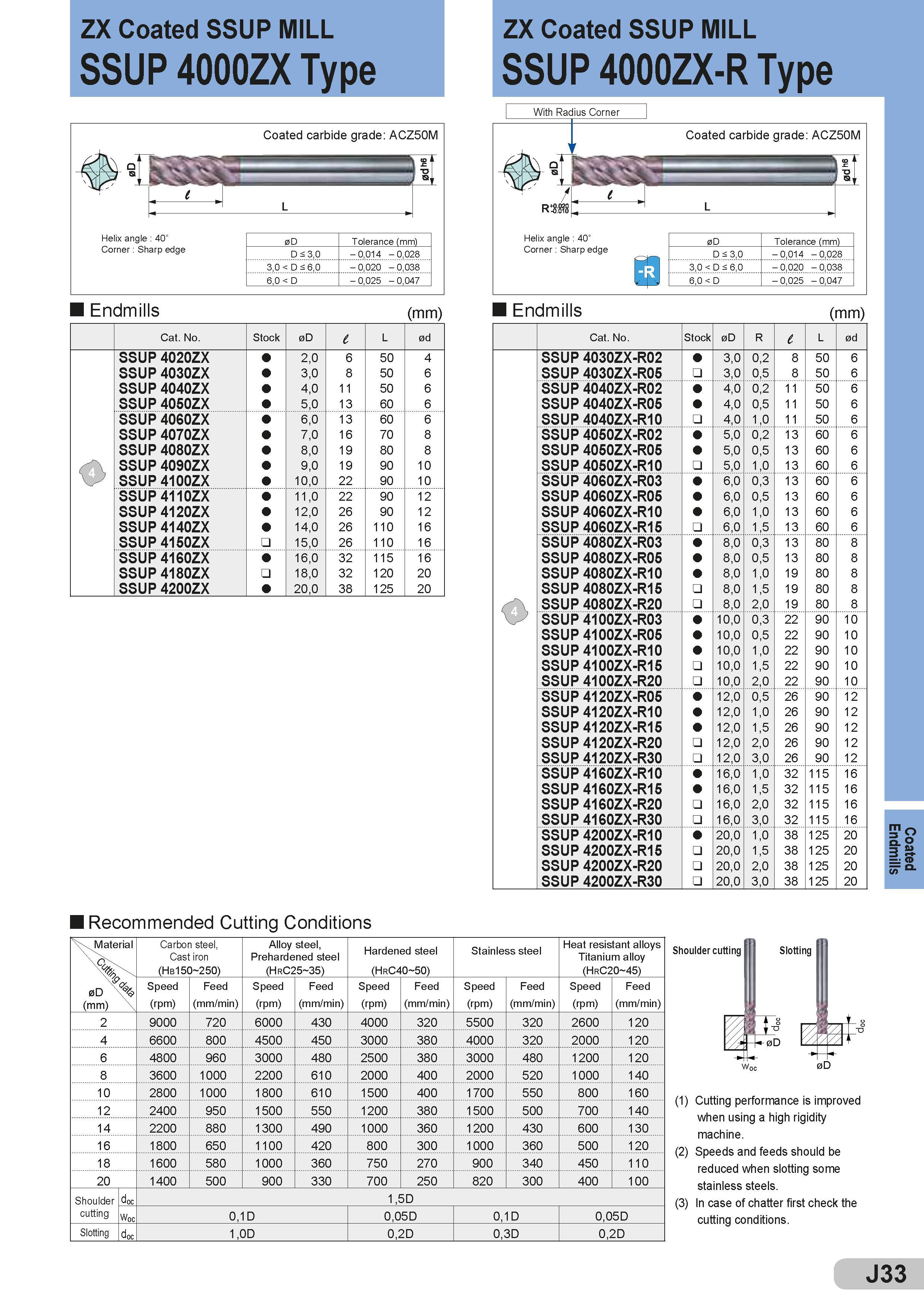

379 Каталог SUMITOMO 2018 Инструмент металлорежущий Пластины Резцы Фрезы Сверла Стр.J33

Каталог SUMITOMO 2018 Инструмент металлорежущий Стр. J33 0379 Lab2u

ZX Coated SSUP MILL SSUP 4000ZX Type Coated carbide grade: ACZ50M ZX Coated SSUP MILL SSUP 4000ZX-R Type With Radius Corner Coated carbide grade: ACZ50M r y I L RIM L Helix angle : 40° Corner : Sharp edge 0D Tolerance (mm) D < 3,0 - 0,014 - 0,028 3,0 < D < 6,0 - 0,020 - 0,038 6,0 < D - 0,025 - 0,047 Helix angle : 40° Corner : Sharp edge 13 0D Tolerance (mm) D < 3,0 - 0,014 - 0,028 3,0 < D < 6,0 - 0,020 - 0,038 6,0 < D - 0,025 - 0,047 Endmills (mm) Endmills (mm) Cat. No. Stock 0D l L 0d SSUP 4020ZX 2,0 6 50 4 SSUP 4030ZX 3,0 8 50 6 SSUP 4040ZX 4,0 11 50 6 SSUP 4050ZX 5,0 13 60 6 SSUP 4060ZX 6,0 13 60 6 SSUP 4070ZX 7,0 16 70 8 SSUP 4080ZX 8,0 19 80 8 SSUP 4090ZX 9,0 19 90 10 SSUP 4100ZX 10,0 22 90 10 SSUP 4110ZX 11,0 22 90 12 SSUP 4120ZX 12,0 26 90 12 SSUP 4140ZX 14,0 26 110 16 SSUP 4150ZX 15,0 26 110 16 SSUP 4160ZX 16,0 32 115 16 SSUP 4180ZX 18,0 32 1 20 20 SSUP 4200ZX 20,0 38 1 25 20 Cat. No. Stock 0D R l L 0d SSUP 4030ZX-R02 3,0 0,2 8 50 6 SSUP 4030ZX-R05 3,0 0,5 8 50 6 SSUP 4040ZX-R02 4,0 0,2 11 50 6 SSUP 4040ZX-R05 4,0 0,5 11 50 6 SSUP 4040ZX-R10 4,0 1,0 11 50 6 SSUP 4050ZX-R02 5,0 0,2 13 60 6 SSUP 4050ZX-R05 5,0 0,5 13 60 6 SSUP 4050ZX-R10 5,0 1,0 13 60 6 SSUP 4060ZX-R03 6,0 0,3 13 60 6 SSUP 4060ZX-R05 6,0 0,5 13 60 6 SSUP 4060ZX-R10 6,0 1,0 13 60 6 SSUP 4060ZX-R15 6,0 1,5 13 60 6 SSUP 4080ZX-R03 8,0 0,3 13 80 8 SSUP 4080ZX-R05 8,0 0,5 13 80 8 SSUP 4080ZX-R10 8,0 1,0 19 80 8 SSUP 4080ZX-R15 8,0 1,5 19 80 8 SSUP 4080ZX-R20 8,0 2,0 19 80 8 SSUP 4100ZX-R03 10,0 0,3 22 90 10 SSUP 4100ZX-R05 10,0 0,5 22 90 10 SSUP 4100ZX-R10 10,0 1,0 22 90 10 SSUP 4100ZX-R15 10,0 1,5 22 90 10 SSUP 4100ZX-R20 10,0 2,0 22 90 10 SSUP 4120ZX-R05 12,0 0,5 26 90 12 SSUP 4120ZX-R10 12,0 1,0 26 90 12 SSUP 4120ZX-R15 12,0 1,5 26 90 12 SSUP 4120ZX-R20 12,0 2,0 26 90 12 SSUP 4120ZX-R30 12,0 3,0 26 90 12 SSUP 4160ZX-R10 16,0 1,0 32 115 16 SSUP 4160ZX-R15 16,0 1,5 32 115 16 SSUP 4160ZX-R20 16,0 2,0 32 115 16 SSUP 4160ZX-R30 16,0 3,0 32 115 16 SSUP 4200ZX-R10 20,0 1,0 38 125 20 SSUP 4200ZX-R15 20,0 1,5 38 125 20 SSUP 4200ZX-R20 20,0 2,0 38 125 20 SSUP 4200ZX-R30 20,0 3,0 38 125 20 Recommended Cutting Conditions = / te l OE Carbon steel, Cast iron (Hb150-250) Alloy steel, Prehardened steel (HrC25-35) Hardened steel (HrC40-50) Stainless steel Heat resistant alloys Titanium alloy (HrC20-45) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) 2 9000 720 6000 430 4000 320 5500 320 2600 120 4 6600 800 4500 450 3000 380 4000 320 2000 120 6 4800 960 3000 480 2500 380 3000 480 1200 120 8 3600 1000 2200 610 2000 400 2000 520 1000 140 10 2800 1000 1800 610 1500 400 1700 550 800 160 12 2400 950 1500 550 1200 380 1500 500 700 140 14 2200 880 1300 490 1000 360 1200 430 600 130 16 1800 650 1100 420 800 300 1000 360 500 120 18 1600 580 1000 360 750 270 900 340 450 110 20 1400 500 900 330 700 250 820 300 400 100 Shoulder cutting doc 1,5D woc 0,1D 0,05D 0,1D 0,05D Slotting doc 1,0D 0,2D 0,3D 0,2D Shoulder cutting (1) Cutting performance is improVed when using a high rigidity machine. (2) Speeds and feeds should be reduced when slotting some stainless steels. (3) In case of chatter first check the cutting conditions. J33 Coated Endmills
