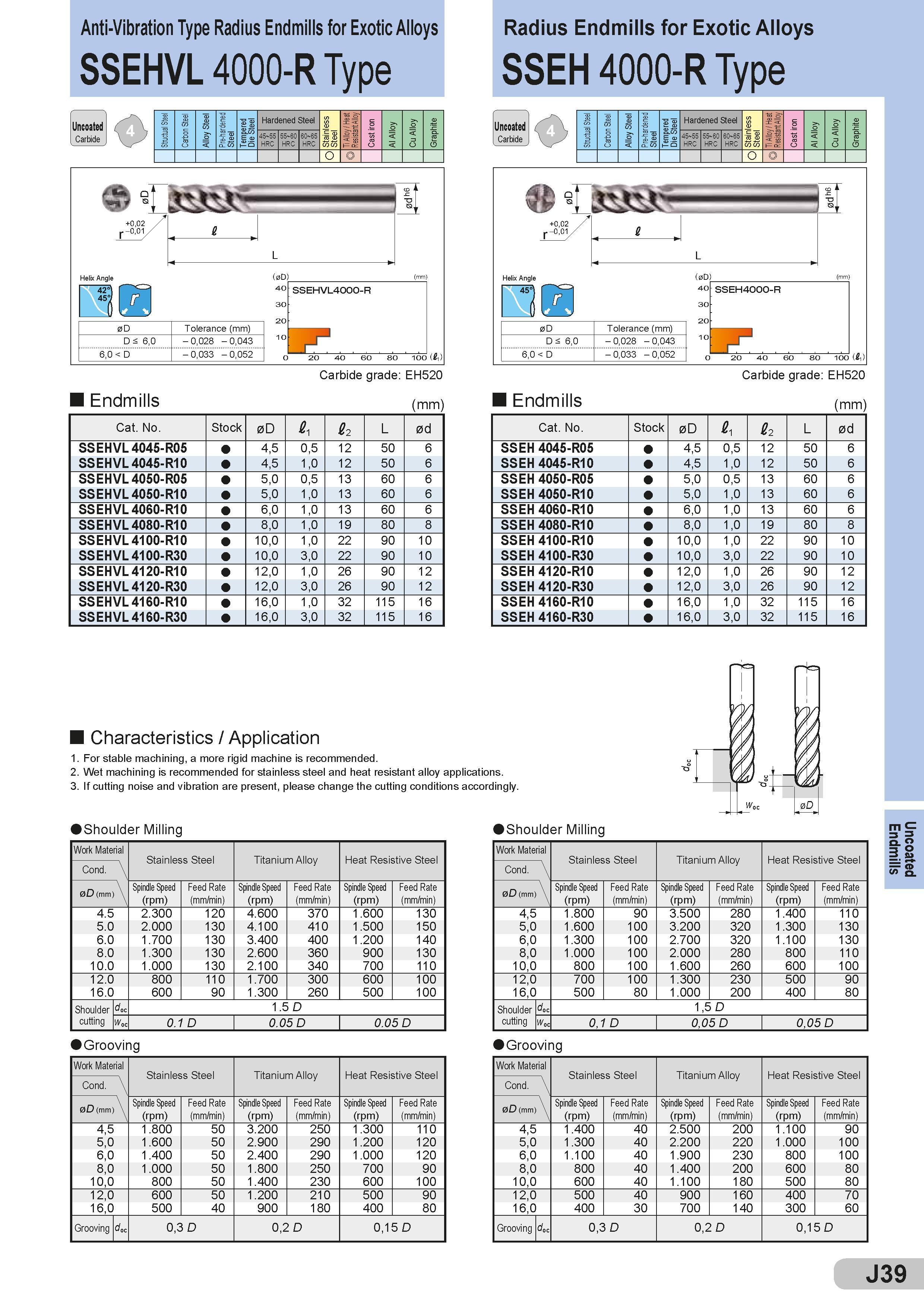

Anti-Vibration Type Radius Endmills for Exotic Alloys Radius Endmills for Exotic Alloys SSEHVL 4000-R Type SSEH 4000-R Type Uncoated Carbide Stmctual Steel Carbon Steel Alloy Steel Pre-hardened Steel Tempered Die Steel Hardened Steel Stainless Steel Ti Alloy / Heat Resistant Alloy Cast iron Al Alloy Cu Alloy Graphite 45 55 HRC 55 60 HRC 60 65 HRC o 42' 45°° 0D Tolerance (mm) D < 6,0 - 0,028 - 0,043 6,0 < D - 0,033 - 0,052 ( 0D) 40 30 20 SSEHVL4000-R r 20 40 60 80 100 ( th) Endmills Carbide grade: EH520 (mm) Uncoated Carbide Stmctual Steel Carbon Steel Alloy Steel Pre-hardened Steel Tempered Die Steel Hardened Steel Stainless Steel Ti Alloy / Heat Resistant Alloy Cast iron Al Alloy Cu Alloy Graphite 45 55 HRC 55 60 HRC 60 65 HRC o 0D Tolerance (mm) D < 6,0 - 0,028 - 0,043 6,0 < D - 0,033 - 0,052 20 40 60 80 100 (jfi i) Endmills Carbide grade: EH520 (mm) Helix Angle 0 0 Cat. No. Stock 0D 4 02 L 0d SSEHVL 4045-R05 4,5 0,5 12 50 6 SSEHVL 4045-R10 4,5 1,0 12 50 6 SSEHVL 4050-R05 5,0 0,5 13 60 6 SSEHVL 4050-R10 5,0 1,0 13 60 6 SSEHVL 4060-R10 6,0 1,0 13 60 6 SSEHVL 4080-R10 8,0 1,0 19 80 8 SSEHVL 4100-R10 10,0 1,0 22 90 10 SSEHVL 4100-R30 10,0 3,0 22 90 10 SSEHVL 4120-R10 12,0 1,0 26 90 12 SSEHVL 4120-R30 12,0 3,0 26 90 12 SSEHVL 4160-R10 16,0 1,0 32 115 16 SSEHVL 4160-R30 16,0 3,0 32 115 16 Cat. No. Stock 0D 1 02 L 0d SSEH 4045-R05 4,5 0,5 12 50 6 SSEH 4045-R10 4,5 1,0 12 50 6 SSEH 4050-R05 5,0 0,5 13 60 6 SSEH 4050-R10 5,0 1,0 13 60 6 SSEH 4060-R10 6,0 1,0 13 60 6 SSEH 4080-R10 8,0 1,0 19 80 8 SSEH 4100-R10 10,0 1,0 22 90 10 SSEH 4100-R30 10,0 3,0 22 90 10 SSEH 4120-R10 12,0 1,0 26 90 12 SSEH 4120-R30 12,0 3,0 26 90 12 SSEH 4160-R10 16,0 1,0 32 115 16 SSEH 4160-R30 16,0 3,0 32 115 16 Characteristics / Application 1. For stable machining, a more rigid machine is recommended. 2. Wet machining is recommended for stainless steel and heat resistant alloy applications. 3. If cutting noise and vibration are present, please change the cutting conditions accordingly. Shoulder Milling Shoulder Milling Work Material Stainless Steel Titanium Alloy Heat Resistive Steel Cond. \ Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) 4.5 2.300 120 4.600 370 1.600 130 5.0 2.000 130 4.100 410 1.500 150 6.0 1.700 130 3.400 400 1.200 140 8.0 1.300 130 2.600 360 900 130 10.0 1.000 130 2.100 340 700 110 12.0 800 110 1.700 300 600 100 16.0 600 90 1.300 260 500 100 Shoulder doc 1.5 D cutting Woc 0.1 D 0.05 D 0.05 D Grooving Work Material Titanium Alloy Cond. \ 0D (mm) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) 4,5 1.800 50 3.200 250 1.300 110 5,0 1.600 50 2.900 290 1.200 120 6,0 1.400 50 2.400 290 1.000 120 8,0 1.000 50 1.800 250 700 90 10,0 800 50 1.400 230 600 100 12,0 600 50 1.200 210 500 90 16,0 500 40 900 180 400 80 Grooving doc 0,3 D 0,2 D 0,15 D Work Material Stainless Steel Titanium Alloy Heat Resistive Steel Cond. \ Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) 4,5 1.800 90 3.500 280 1.400 110 5,0 1.600 100 3.200 320 1.300 130 6,0 1.300 100 2.700 320 1.100 130 8,0 1.000 100 2.000 280 800 110 10,0 800 100 1.600 260 600 100 12,0 700 100 1.300 230 500 90 16,0 500 80 1.000 200 400 80 Shoulder doc 1,5 D cutting Woc 0,1 D 0,05 D 0,05 D Grooving Work Material Stainless Steel Titanium Alloy Heat Resistive Steel Cond. \ Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) 4,5 1.400 40 2.500 200 1.100 90 5,0 1.300 40 2.200 220 1.000 100 6,0 1.100 40 1.900 230 800 100 8,0 800 40 1.400 200 600 80 10,0 600 40 1.100 180 500 80 12,0 500 40 900 160 400 70 16,0 400 30 700 140 300 60 Grooving doc 0,3 D 0,2 D 0,15 D J39 Uncoated Endmills
