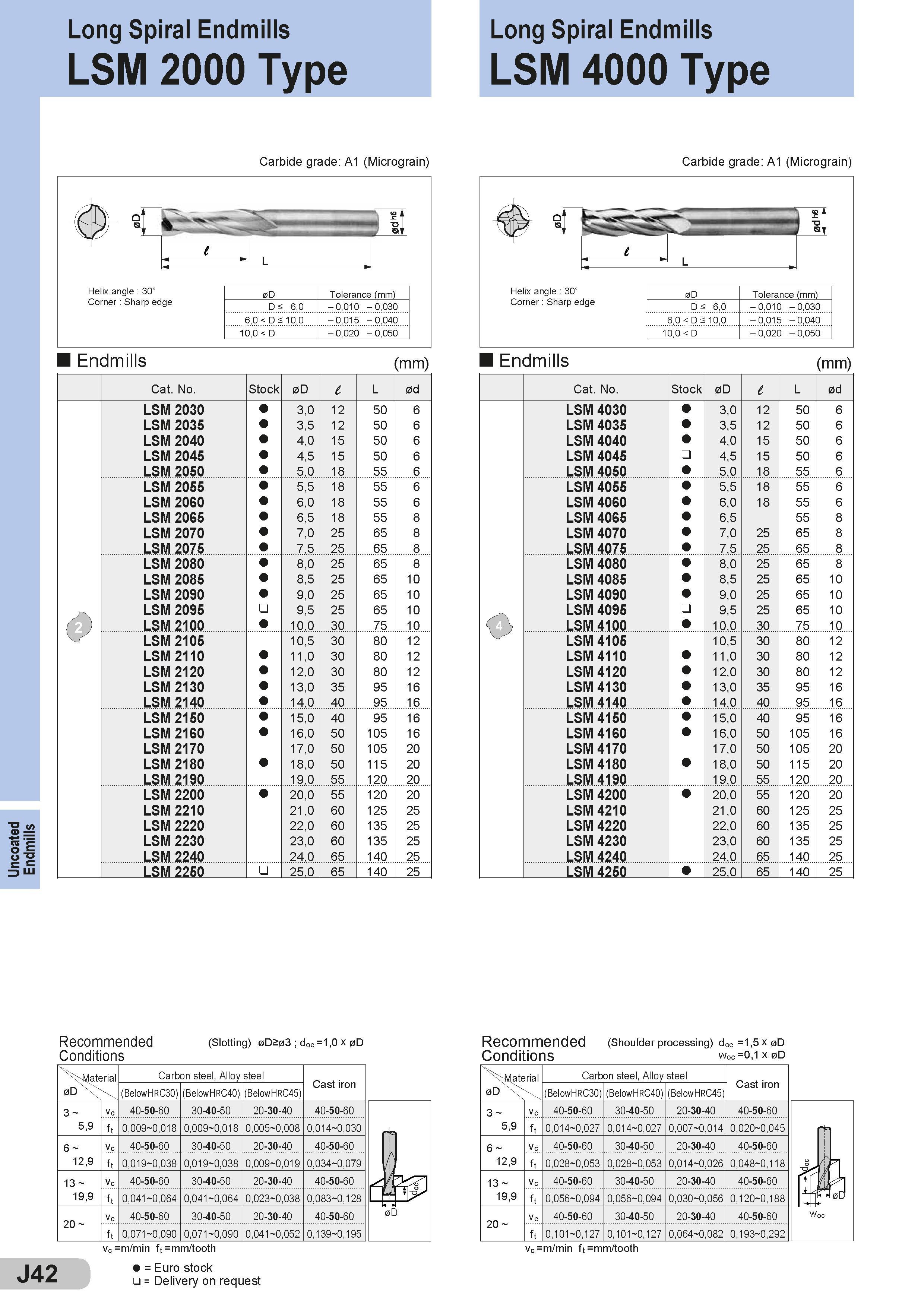

Uncoated Endmills Long Spiral Endmills LSM 2000 Type Long Spiral Endmills LSM 4000 Type Carbide grade: A1 (Micrograin) Carbide grade: A1 (Micrograin) Helix angle : 30° Corner : Sharp edge 0D Tolerance (mm) D < 6,0 - 0,010 - 0,030 6,0 < D < 10,0 - 0,015 - 0,040 10,0 < D - 0,020 - 0,050 Endmills (mm) Cat. No. Stock 0D l L 0d LSM 2030 3,0 12 50 6 LSM 2035 3,5 12 50 6 LSM 2040 4,0 15 50 6 LSM 2045 4,5 15 50 6 LSM 2050 5,0 18 55 6 LSM 2055 5,5 18 55 6 LSM 2060 6,0 18 55 6 LSM 2065 6,5 18 55 8 LSM 2070 7,0 25 65 8 LSM 2075 7,5 25 65 8 LSM 2080 8,0 25 65 8 LSM 2085 8,5 25 65 10 LSM 2090 9,0 25 65 10 LSM 2095 9,5 25 65 10 LSM 2100 10,0 30 75 10 LSM 2105 10,5 30 80 12 LSM 2110 11,0 30 80 12 LSM 2120 12,0 30 80 12 LSM 2130 13,0 35 95 16 LSM 2140 14,0 40 95 16 LSM 2150 15,0 40 95 16 LSM 2160 16,0 50 105 16 LSM 2170 17,0 50 105 20 LSM 2180 18,0 50 115 20 LSM 2190 19,0 55 120 20 LSM 2200 20,0 55 120 20 LSM 2210 21,0 60 125 25 LSM 2220 22,0 60 135 25 LSM 2230 23,0 60 135 25 LSM 2240 24,0 65 140 25 LSM 2250 25,0 65 140 25 Helix angle : 30° Corner : Sharp edge 0D Tolerance (mm) D < 6,0 - 0,010 - 0,030 6,0 < D < 10,0 - 0,015 - 0,040 10,0 < D - 0,020 - 0,050 Endmills (mm) Cat. No. Stock 0D l L 0d LSM 4030 3,0 12 50 6 LSM 4035 3,5 12 50 6 LSM 4040 4,0 15 50 6 LSM 4045 4,5 15 50 6 LSM 4050 5,0 18 55 6 LSM 4055 5,5 18 55 6 LSM 4060 6,0 18 55 6 LSM 4065 6,5 55 8 LSM 4070 7,0 25 65 8 LSM 4075 7,5 25 65 8 LSM 4080 8,0 25 65 8 LSM 4085 8,5 25 65 10 LSM 4090 9,0 25 65 10 LSM 4095 9,5 25 65 10 LSM 4100 10,0 30 75 10 LSM 4105 10,5 30 80 12 LSM 4110 11,0 30 80 12 LSM 4120 12,0 30 80 12 LSM 4130 13,0 35 95 16 LSM 4140 14,0 40 95 16 LSM 4150 15,0 40 95 16 LSM 4160 16,0 50 105 16 LSM 4170 17,0 50 105 20 LSM 4180 18,0 50 115 20 LSM 4190 19,0 55 120 20 LSM 4200 20,0 55 120 20 LSM 4210 21,0 60 125 25 LSM 4220 22,0 60 135 25 LSM 4230 23,0 60 135 25 LSM 4240 24,0 65 140 25 LSM 4250 25,0 65 140 25 Recommended (Slotting) 0D>03 ; doc=1,0 x 0D Conditions SMaterial 0D Carbon steel, Alloy steel Cast iron (BelowHRC30) (BelowHRC40) (BelowHRC45) 3 5,9 Vc 40-50-60 30-40-50 20-30-40 40-50-60 L rf P ft 0,009 0,018 0,009-0,018 0,005-0,008 0,014-0,030 6 12,9 Vc 40-50-60 30-40-50 20-30-40 40-50-60 ft 0,019 0,038 0,019-0,038 0,009-0,019 0,034-0,079 13 19,9 Vc 40-50-60 30-40-50 20-30-40 40-50-60 ft 0,041 0,064 0,041-0,064 0,023-0,038 0,083-0,128 2 O - Vc 40-50-60 30-40-50 20-30-40 40-50-60 0D ft 0,071 0,090 0,071-0,090 0,041-0,052 0,139-0,195 Vc =m/min ft =mm/tooth Recommended (Shoulder processing) doc =1,5 x 0D Conditions woc =0,1 x 0D ':;Material 0D Carbon steel, Alloy steel Cast iron (BelowHRC30) (BelowHRC40) (BelowHRC45) 3 - 5,9 Vc 40-50-60 30-40-50 20-30-40 40-50-60 1= Woc ft 0,014-0,027 0,014-0,027 0,007-0,014 0,020-0,045 6 -12,9 Vc 40-50-60 30-40-50 20-30-40 40-50-60 ft 0,028-0,053 0,028-0,053 0,014-0,026 0,048-0,118 13 -19,9 Vc 40-50-60 30-40-50 20-30-40 40-50-60 ft 0,056-0,094 0,056-0,094 0,030-0,056 0,120-0,188 2 O - Vc 40-50-60 30-40-50 20-30-40 40-50-60 ft 0,101-0,127 0,101-0,127 0,064-0,082 0,193-0,292 Vc =m/min ft =mm/tooth J42 = Euro stock = Delivery on request
