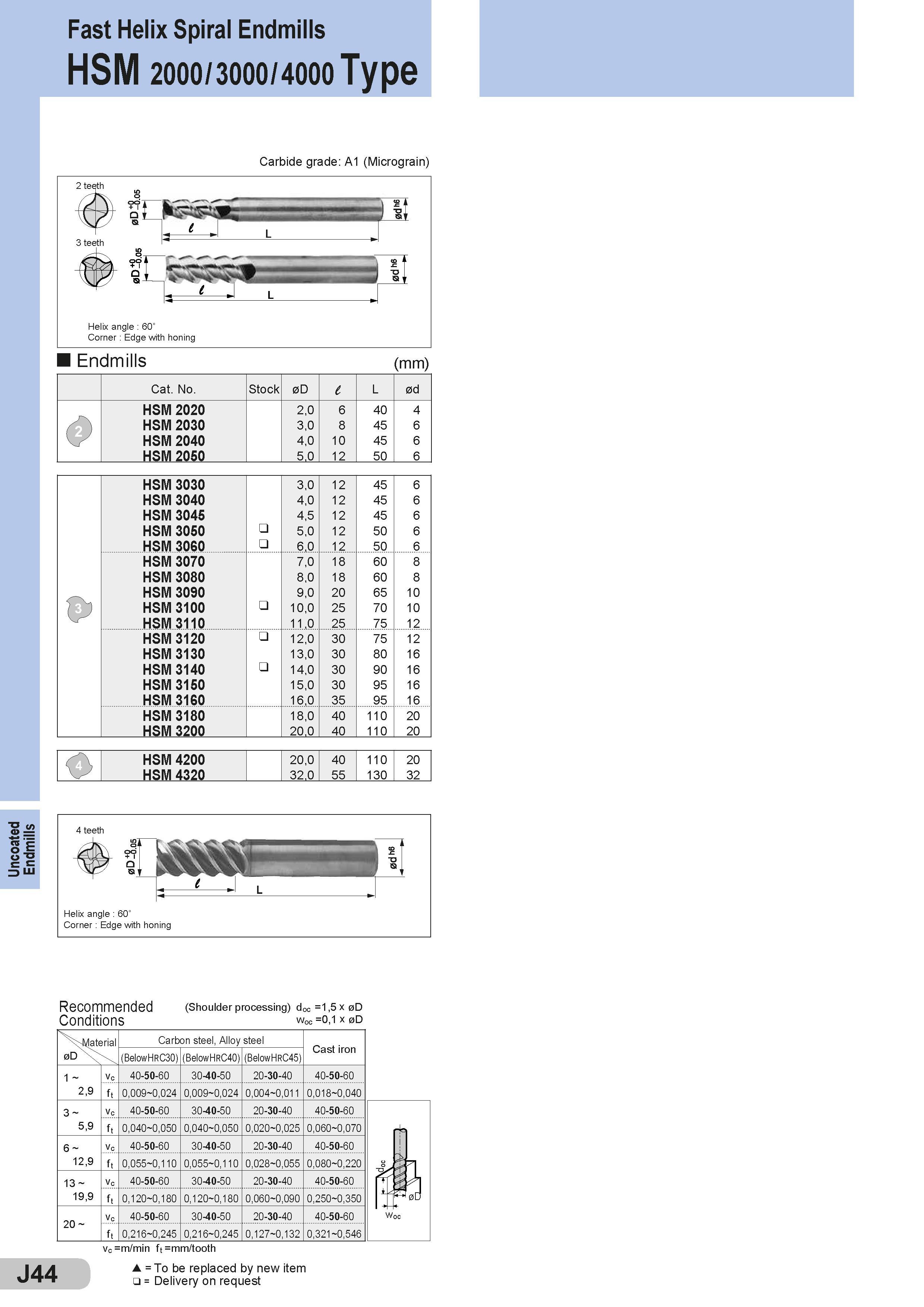

Uncoated Endmills Fast Helix Spiral Endmills HSM 2000/3000/4000 Type Carbide grade: A1 (Micrograin) Endmills (mm) Cat. No. Stock 0D l L 0d HSM 2020 2,0 6 40 4 HSM 2030 3,0 8 45 6 HSM 2040 4,0 10 45 6 HSM 2050 5,0 12 50 6 HSM 3030 3,0 12 45 6 HSM 3040 4,0 12 45 6 HSM 3045 4,5 12 45 6 HSM 3050 5,0 12 50 6 HSM 3060 6,0 12 50 6 HSM 3070 7,0 18 60 8 HSM 3080 8,0 18 60 8 HSM 3090 9,0 20 65 10 HSM 3100 10,0 25 70 10 HSM 3110 11,0 25 75 12 HSM 3120 12,0 30 75 12 HSM 3130 13,0 30 80 16 HSM 3140 14,0 30 90 16 HSM 3150 15,0 30 95 16 HSM 3160 16,0 35 95 16 HSM 3180 HSM 3200 18,0 20,0 40 40 110 110 20 20 <4 HSM 4200 20,0 40 110 20 HSM 4320 32,0 55 130 32 4 teeth Helix angle : 60° Corner : Edge with honing Recommended (Shoulder processing) doc =1,5 x 0D Conditions woc =0,1 x 0D xMMaterial 0D T'\ Carbon steel, Alloy steel Cast iron (BelowHRC30) (BelowHRC40) (BelowHRC45) 1 2,9 Vc 40-50-60 30-40-50 20-30-40 40-50-60 ft 0,009 0,024 0,009-0,024 0,004-0,011 0,018-0,040 3 5,9 Vc 40-50-60 30-40-50 20-30-40 40-50-60 0D woc ft 0,040 0,050 0,040-0,050 0,020-0,025 0,060-0,070 6 12,9 Vc 40-50-60 30-40-50 20-30-40 40-50-60 ft 0,055 0,110 0,055-0,110 0,028-0,055 0,080-0,220 13 19,9 Vc 40-50-60 30-40-50 20-30-40 40-50-60 ft 0,120 0,180 0,120-0,180 0,060-0,090 0,250-0,350 20 Vc 40-50-60 30-40-50 20-30-40 40-50-60 ft 0,216 0,245 0,216-0,245 0,127-0,132 0,321-0,546 Vc =m/min ft =mm/tooth J44 s = To be replaced by new item = Delivery on request
