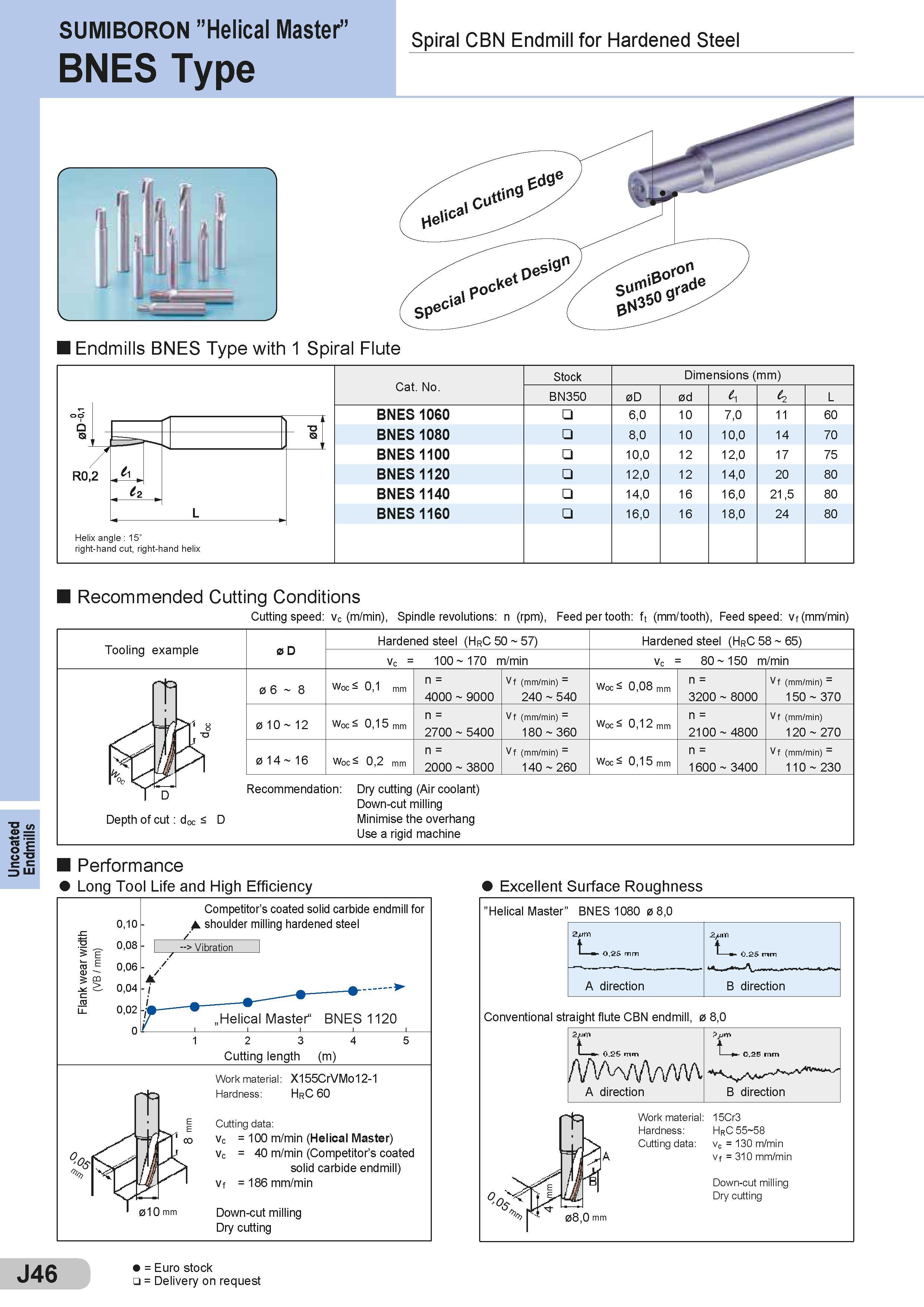

Uncoated Endmills SUMIBORON ’’Helical Master” BNES Type Spiral CBN Endmill for Hardened Steel Endmills BNES Type with 1 Spiral Flute Cat. No. Stock Dimensions (mm) Размеры указаны в мм BN350 0D 0d l1 I2 L oo ,i BNES 1060 6,0 10 7,0 11 60 Q o BNES 1080 8,0 10 10,0 14 70 Q BNES 1100 10,0 12 12,0 17 75 R0,2 BNES 1120 12,0 12 14,0 20 80 - i2 , BNES 1140 14,0 16 16,0 21,5 80 L BNES 1160 16,0 16 18,0 24 80 Helix angle : 15° right-hand cut, right-hand helix Recommended Cutting Conditions Cutting speed: vc (m/min), Spindle revolutions: n (rpm), Feed per tooth: ft (mm/tooth), Feed speed: vf (mm/min) 0 D Hardened steel (HrC 50 - 57) Hardened steel (HRC 58 - 65) Vc = 100 - 170 m/min vc = 80 - 150 m/min 0 6 - 8 woc < 0,1 mm n = 4000 - 9000 v f (mm/min) = 240 - 540 woc < 0,08 mm n = 3200 - 8000 V f (mm/min) = 150 - 370 0 10 - 12 woc < 0,15 mm n = 2700 - 5400 V f (mm/min) = 180 - 360 woc < 0,12 mm n = 2100 - 4800 Vf (mm/min) 120 - 270 0 14 - 16 woc < 0,2 mm n = 2000 - 3800 V f (mm/min) = 140 - 260 woc < 0,15 mm n = 1600 - 3400 V f (mm/min) = 110 - 230 Tooling example Depth of cut : doc < D Recommendation: Dry cutting (Air coolant) Down-cut milling Minimise the overhang Use a rigid machine Performance Long Tool Life and High Efficiency Excellent Surface Roughness 0,10 th idt 5 -f 0,08 0,06 5 g 0,04 n la Ll 0,02 0 Competitor’s coated solid carbide endmill for shoulder milling hardened steel -J- > Vibration „Helical Master“ BNES 1120 2 3 Cutting length (m) 4 010 mm Work material: X155CrVMo12-1 Hardness: HrC 60 Cutting data: Vc = 100 m/min (Helical Master) Vc = 40 m/min (Competitor’s coated solid carbide endmill) Vf = 186 mm/min Down-cut milling Dry cutting ’’Helical Master’ BNES 1080 0 8,0 2 m t 0.2S mm 2 iin 0.2S mm A direction B direction Conventional straight flute CBN endmill, 0 8,0 0.26 mm /Wwi/vvw A direction pjjtri Or2E mm B direction Work material: 15Cr3 Hardness: HrC 55-58 Cutting data: vc = 130 m/min Vf = 310 mm/min Down-cut milling Dry cutting J46 = Euro stock = DeliVery on request
