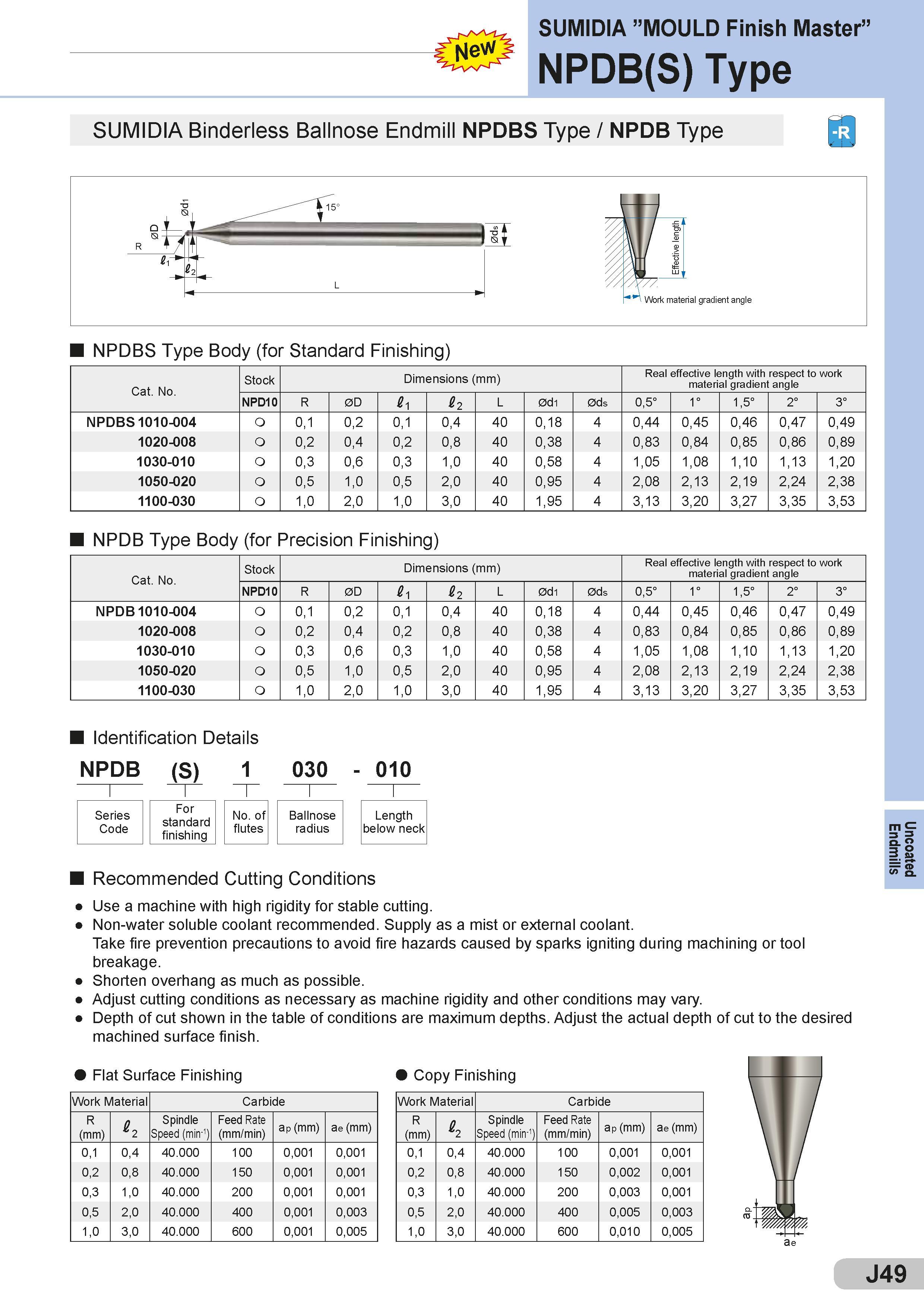

SUMIDIA ’’MOULD Finish Master” NPDB(S) Type SUMIDIA Binderless Ballnose Endmill NPDBS Type / NPDB Type jQ NPDBS Type Body (for Standard Finishing) Cat. No. Stock Dimensions (mm) Размеры указаны в мм Real effectiVe length with respect to work material gradient angle NPD10 R 0D h &2 L 0d1 0ds 0,5° 1° 1,5° 2° 3° NPDBS 1010-004 o 0,1 0,2 0,1 0,4 40 0,18 4 0,44 0,45 0,46 0,47 0,49 1020-008 o 0,2 0,4 0,2 0,8 40 0,38 4 0,83 0,84 0,85 0,86 0,89 1030-010 o 0,3 0,6 0,3 1,0 40 0,58 4 1,05 1,08 1,10 1,13 1,20 1050-020 o 0,5 1,0 0,5 2,0 40 0,95 4 2,08 2,13 2,19 2,24 2,38 1100-030 o 1,0 2,0 1,0 3,0 40 1,95 4 3,13 3,20 3,27 3,35 3,53 NPDB Type Body (for Precision Finishing) Cat. No. Stock Dimensions (mm) Размеры указаны в мм Real effectiVe length with respect to work material gradient angle NPD10 R 0D h 2 L 0d1 0ds 0,5° 1° 1,5° 2° 3° NPDB 1010-004 O 0,1 0,2 0,1 0,4 40 0,18 4 0,44 0,45 0,46 0,47 0,49 1020-008 o 0,2 0,4 0,2 0,8 40 0,38 4 0,83 0,84 0,85 0,86 0,89 1030-010 o 0,3 0,6 0,3 1,0 40 0,58 4 1,05 1,08 1,10 1,13 1,20 1050-020 o 0,5 1,0 0,5 2,0 40 0,95 4 2,08 2,13 2,19 2,24 2,38 1100-030 o 1,0 2,0 1,0 3,0 40 1,95 4 3,13 3,20 3,27 3,35 3,53 I Identification Details NPDB (S) 1 030 Series Code For standard finishing No. of flutes Ballnose radius - 010 Length below neck Recommended Cutting Conditions Use a machine with high rigidity for stable cutting. Non-water soluble coolant recommended. Supply as a mist or external coolant. Take fire prevention precautions to avoid fire hazards caused by sparks igniting during machining or tool breakage. Shorten oVerhang as much as possible. Adjust cutting conditions as necessary as machine rigidity and other conditions may Vary. Depth of cut shown in the table of conditions are maximum depths. Adjust the actual depth of cut to the desired machined surface finish. Flat Surface Finishing Copy Finishing Work Material Carbide R (mm) h Spindle Speed (min-1) Feed Rate (mm/min) ap (mm) ae (mm) 0,1 0,4 40.000 100 0,001 0,001 0,2 0,8 40.000 150 0,001 0,001 0,3 1,0 40.000 200 0,001 0,001 0,5 2,0 40.000 400 0,001 0,003 1,0 3,0 40.000 600 0,001 0,005 Work Material Carbide R (mm) k Spindle Speed (min-1) Feed Rate (mm/min) ap (mm) ae (mm) 0,1 0,4 40.000 100 0,001 0,001 0,2 0,8 40.000 150 0,002 0,001 0,3 1,0 40.000 200 0,003 0,001 0,5 2,0 40.000 400 0,005 0,003 1,0 3,0 40.000 600 0,010 0,005 J49 Uncoated Endmills
