374 Каталог SUMITOMO 2018 Инструмент металлорежущий Пластины Резцы Фрезы Сверла Стр.J28

Каталог SUMITOMO 2018 Инструмент металлорежущий Стр. J28 0374 Lab2u

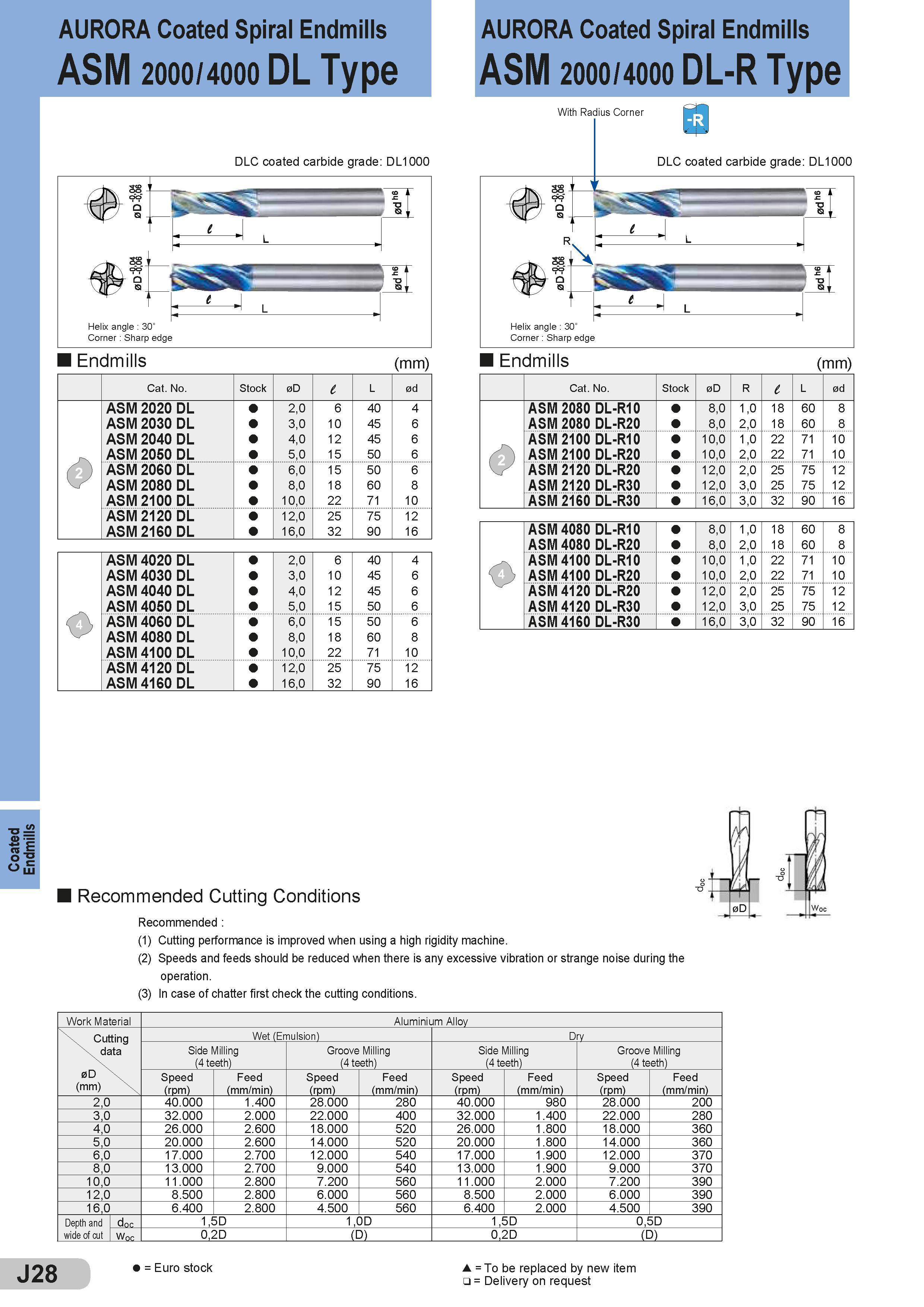

Coated Endmills AURORA Coated Spiral Endmills AURORA Coated Spiral Endmills ASM 2000/4000 DL Type ASM 2000/4000 DL-R Type With Radius Corner DLC coated carbide grade: DL1000 Helix angle : 30° Corner : Sharp edge Endmills (mm) DLC coated carbide grade: DL1000 Endmills (mm) Cat. No. Stock 0D l L 0d ASM 2020 DL 2,0 6 40 4 ASM 2030 DL 3,0 10 45 6 ASM 2040 DL 4,0 12 45 6 ASM 2050 DL 5,0 15 50 6 ASM 2060 DL 6,0 15 50 6 A'- ASM 2080 DL 8,0 18 60 8 ASM 2100 DL 10,0 22 71 10 ASM 2120 DL 1 2,0 25 75 12 ASM 2160 DL 16,0 32 90 16 ASM 4020 DL 2,0 6 40 4 ASM 4030 DL 3,0 10 45 6 ASM 4040 DL 4,0 12 45 6 R ASM 4050 DL 5,0 15 50 6 ASM 4060 DL 6,0 15 50 6 ASM 4080 DL 8,0 18 60 8 ASM 4100 DL 10,0 22 71 10 ASM 4120 DL 12,0 25 75 12 ASM 4160 DL 16,0 32 90 16 Cat. No. Stock 0D R l L 0d ASM 2080 DL-R10 8,0 1,0 18 60 8 ASM 2080 DL-R20 8,0 2,0 18 60 8 ASM 2100 DL-R10 10,0 1,0 22 71 10 F2 ASM 2100 DL-R20 10,0 2,0 22 71 10 LU ASM 2120 DL-R20 12,0 2,0 25 75 12 ASM 2120 DL-R30 12,0 3,0 25 75 12 ASM 2160 DL-R30 16,0 3,0 32 90 16 ASM 4080 DL-R10 8,0 1,0 18 60 8 ASM 4080 DL-R20 8,0 2,0 18 60 8 ASM 4100 DL-R10 10,0 1,0 22 71 10 ASM 4100 DL-R20 10,0 2,0 22 71 10 ASM 4120 DL-R20 12,0 2,0 25 75 12 ASM 4120 DL-R30 12,0 3,0 25 75 12 ASM 4160 DL-R30 16,0 3,0 32 90 16 Recommended Cutting Conditions Recommended : (1) Cutting performance is improved when using a high rigidity machine. (2) Speeds and feeds should be reduced when there is any excessive vibration or strange noise during the operation. (3) In case of chatter first check the cutting conditions. Work Material Aluminium Alloy \ Cutting data Wet (Emulsion) Dry Side Milling (4 teeth) Groove Milling (4 teeth) Side Milling (4 teeth) Groove Milling (4 teeth) o"e Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) 2,0 40.000 1.400 28.000 280 40.000 980 28.000 200 3,0 32.000 2.000 22.000 400 32.000 1 .400 22.000 280 4,0 26.000 2.600 18.000 520 26.000 1 .800 18.000 360 5,0 20.000 2.600 14.000 520 20.000 1.800 14.000 360 6,0 17.000 2.700 12.000 540 17.000 1 .900 1 2.000 370 8,0 13.000 2.700 9.000 540 13.000 1 .900 9.000 370 10,0 1 1 .000 2.800 7.200 560 1 1 .000 2.000 7.200 390 12,0 8.500 2.800 6.000 560 8.500 2.000 6.000 390 16,0 6.400 2.800 4.500 560 6.400 2.000 4.500 390 Depth and 1,5D 1,0D 1,5D 0,5D wide of cut Woc 0,2D (D) 0,2D (D) J28 = Euro stock s =To be replaced by new item = Delivery on request
