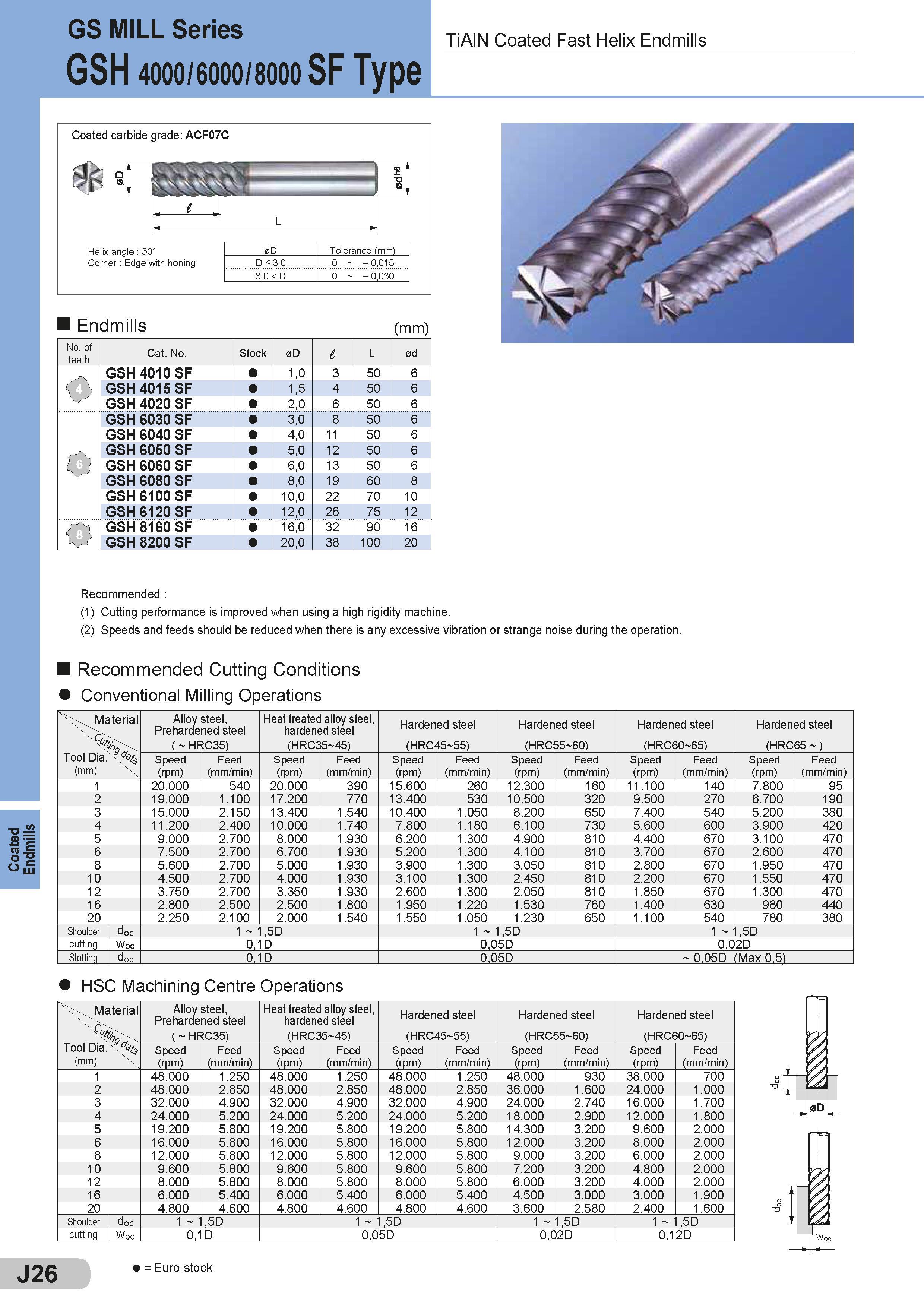

Coated Endmills GS MILL Series GSH 4000/6000/8000 SF Type TiAIN Coated Fast Helix Endmills Coated carbide grade: ACF07C Helix angle : 50° Corner : Edge with honing Endmills 0D Tolerance (mm) D < 3,0 0 - 0,015 3,0 < D 0 - 0,030 (mm) No. of teeth Cat. No. Stock 0D l L 0d A GSH 4010 SF 1,0 3 50 6 GSH 4015 SF 1,5 4 50 6 GSH 4020 SF 2,0 6 50 6 GSH 6030 SF 3,0 8 50 6 GSH 6040 SF 4,0 11 50 6 7 GSH 6050 SF 5,0 12 50 6 GSH 6060 SF 6,0 13 50 6 GSH 6080 SF 8,0 19 60 8 GSH 6100 SF 10,0 22 70 10 GSH 6120 SF 12,0 26 75 12 GSH 8160 SF 16,0 32 90 16 GSH 8200 SF 20,0 38 1 00 20 Recommended : (1) Cutting performance is improved when using a high rigidity machine. (2) Speeds and feeds should be reduced when there is any excessive vibration or strange noise during the operation. Recommended Cutting Conditions Conventional Milling Operations Material Alloy steel, Prehardened steel Heat treated alloy steel, hardened steel Hardened steel Hardened steel Hardened steel Hardened steel ( HRC35) (HRC35 45) (HRC45 55) (HRC55 60) (HRC60 65) (HRC65 ) Tool Dia. (mm) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) Speed (rpm) Feed (mm/min) 1 20.000 540 20.000 390 15.600 260 12.300 1 60 11.100 1 40 7.800 95 2 19.000 1.100 17.200 770 13.400 530 10.500 320 9.500 270 6.700 1 90 3 1 5.000 2.150 13.400 1 .540 10.400 1 .050 8.200 650 7.400 540 5.200 380 4 11.200 2.400 10.000 1 .740 7.800 1.180 6.100 730 5.600 600 3.900 420 5 9.000 2.700 8.000 1.930 6.200 1.300 4.900 810 4.400 670 3.100 470 6 7.500 2.700 6.700 1 .930 5.200 1.300 4.100 81 0 3.700 670 2.600 470 8 5.600 2.700 5.000 1 .930 3.900 1 .300 3.050 81 0 2.800 670 1 .950 470 10 4.500 2.700 4.000 1 .930 3.100 1.300 2.450 81 0 2.200 670 1 .550 470 12 3.750 2.700 3.350 1 .930 2.600 1 .300 2.050 81 0 1 .850 670 1 .300 470 16 2.800 2.500 2.500 1 .800 1 .950 1.220 1 .530 760 1 .400 630 980 440 20 2.250 2.100 2.000 1 .540 1 .550 1 .050 1 .230 650 1 .1 00 540 780 380 Shoulder doc 1 1,5D 1 1,5D 1 1,5D cutting Woc 0,1D 0,05D 0,02D Slotting doc 0,1D 0,05D 0,05D (Max 0,5) HSC Machining Centre Operations Material Alloy steel, Prehardened steel ( HRC35) Heat treated alloy steel, hardened steel (HRC35 45) Hardened steel (HRC45 55) Hardened steel (HRC55 60) Hardened steel (HRC60 65) Tool Dia. Speed Feed Speed Feed Speed Feed Speed Feed Speed Feed (mm) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) 1 48.000 1 .250 48.000 1 .250 48.000 1 .250 48.000 930 38.000 700 2 48.000 2.850 48.000 2.850 48.000 2.850 36.000 1 .600 24.000 1 .000 3 32.000 4.900 32.000 4.900 32.000 4.900 24.000 2.740 16.000 1 .700 4 24.000 5.200 24.000 5.200 24.000 5.200 18.000 2.900 12.000 1.800 5 19.200 5.800 19.200 5.800 19.200 5.800 14.300 3.200 9.600 2.000 6 16.000 5.800 16.000 5.800 16.000 5.800 12.000 3.200 8.000 2.000 8 12.000 5.800 12.000 5.800 12.000 5.800 9.000 3.200 6.000 2.000 10 9.600 5.800 9.600 5.800 9.600 5.800 7.200 3.200 4.800 2.000 12 8.000 5.800 8.000 5.800 8.000 5.800 6.000 3.200 4.000 2.000 16 6.000 5.400 6.000 5.400 6.000 5.400 4.500 3.000 3.000 1 .900 20 4.800 4.600 4.800 4.600 4.800 4.600 3.600 2.580 2.400 1 .600 Shoulder O o d 1 1,5D 1 1,5D 1 1,5D 1 1,5D cutting Woc 0,1D 0,05D 0,02D 0,12D J26 = Euro stock
