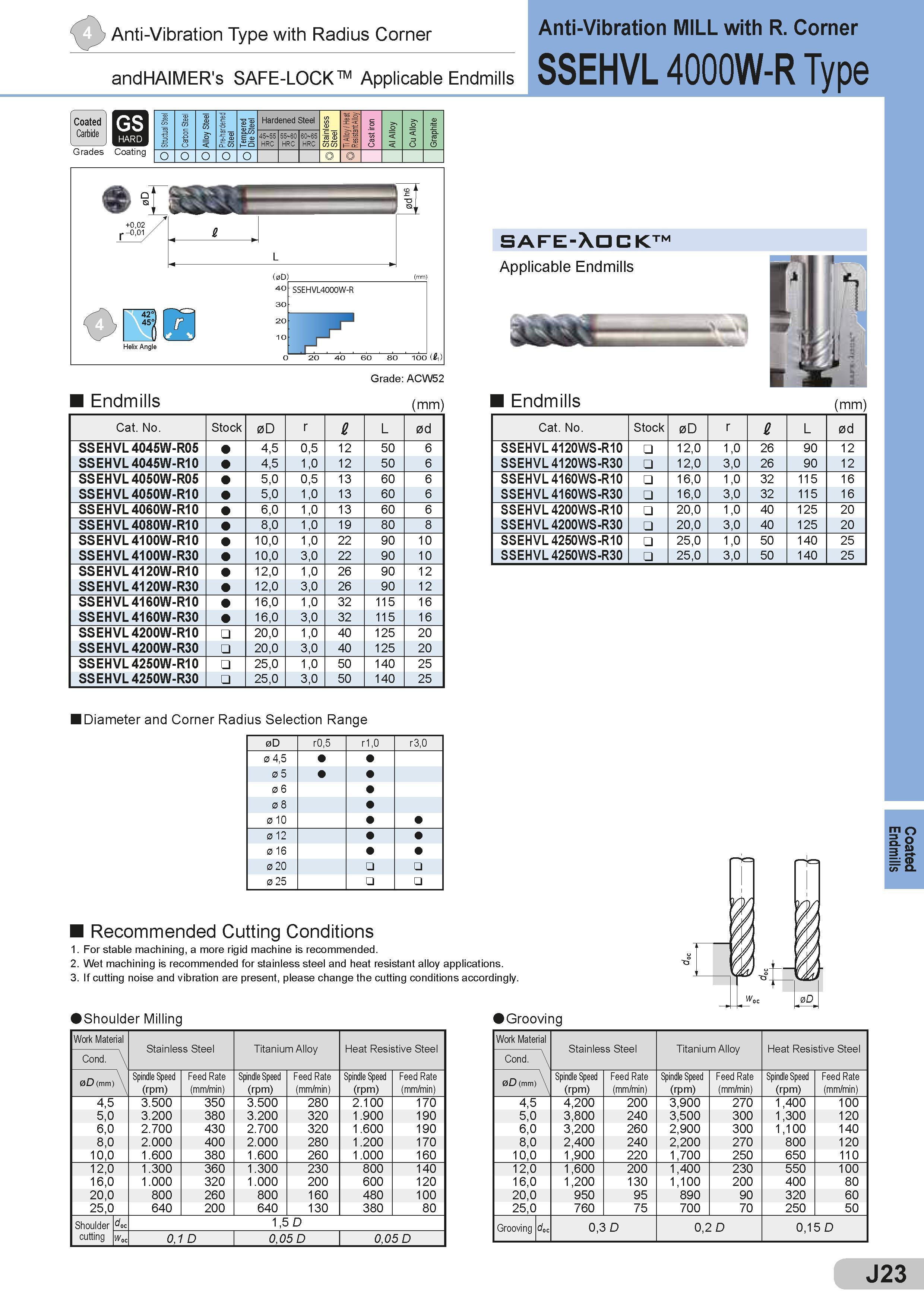

4 Anti-Vibration Type with Radius Corner Anti-Vibration MILL wrth R. C°mer andHAIMER's SAFE-LOCK TM Applicable Endmills SSEHVL 4000W-R Type Coated Carbide Grades Coating Stmctual Steel Carbon Steel Alloy Steel Pre-hardened Steel Tempered Die Steel Hardened Steel Stainless Steel Ti Alloy / Heat Resistant Alloy Cast iron Al Alloy Cu Alloy Graphite 45 55 HRC 55 60 HRC 60 65 HRC o +0,02 r -0,01/ i D SSEHVL4000W-R 20 40 60 80 100 (j£ i ) Endmills Grade: ACW52 (mm) safe-Aock Applicable Endmills Endmills (mm) L Helix Angle 0 Cat. No. Stock 0D r 2 L 0d SSEHVL 4045W-R05 4,5 0,5 12 50 6 SSEHVL 4045W-R10 4,5 1,0 12 50 6 SSEHVL 4050W-R05 5,0 0,5 13 60 6 SSEHVL 4050W-R10 5,0 1,0 13 60 6 SSEHVL 4060W-R10 6,0 1,0 13 60 6 SSEHVL 4080W-R10 8,0 1,0 19 80 8 SSEHVL 4100W-R10 10,0 1,0 22 90 10 SSEHVL 4100W-R30 10,0 3,0 22 90 10 SSEHVL 4120W-R10 12,0 1,0 26 90 12 SSEHVL 4120W-R30 12,0 3,0 26 90 12 SSEHVL 4160W-R10 16,0 1,0 32 115 16 SSEHVL 4160W-R30 16,0 3,0 32 115 16 SSEHVL 4200W-R10 20,0 1,0 40 125 20 SSEHVL 4200W-R30 20,0 3,0 40 125 20 SSEHVL 4250W-R10 25,0 1,0 50 140 25 SSEHVL 4250W-R30 25,0 3,0 50 140 25 Cat. No. Stock 0D r e L 0d SSEHVL 4120WS-R10 12,0 1,0 26 90 12 SSEHVL 4120WS-R30 12,0 3,0 26 90 12 SSEHVL 4160WS-R10 16,0 1,0 32 115 16 SSEHVL 4160WS-R30 16,0 3,0 32 115 16 SSEHVL 4200WS-R10 20,0 1,0 40 125 20 SSEHVL 4200WS-R30 20,0 3,0 40 125 20 SSEHVL 4250WS-R10 25,0 1,0 50 140 25 SSEHVL 4250WS-R30 25,0 3,0 50 140 25 Diameter and Corner Radius Selection Range 0D r0,5 r1,0 r3,0 0 4,5 0 5 0 6 0 8 0 10 0 12 0 16 0 20 0 25 Recommended Cutting Conditions 1. For stable machining, a more rigid machine is recommended. 2. Wet machining is recommended for stainless steel and heat resistant alloy applications. 3. If cutting noise and vibration are present, please change the cutting conditions accordingly. Shoulder Milling Grooving Work Material Stainless Steel Titanium Alloy Heat Resistive Steel Cond. \ Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) 4,5 3.500 350 3.500 280 2.100 170 5,0 3.200 380 3.200 320 1.900 190 6,0 2.700 430 2.700 320 1.600 190 8,0 2.000 400 2.000 280 1.200 170 10,0 1.600 380 1.600 260 1.000 160 12,0 1.300 360 1.300 230 800 140 16,0 1.000 320 1.000 200 600 120 20,0 800 260 800 160 480 100 25,0 640 200 640 130 380 80 Shoulder doc 1,5 D cutting Woc 0,1 D 0,05 D 0,05 D Work Material Titanium Alloy Cond. \ 0D (mm) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) 4,5 4,200 200 3,900 270 1,400 100 5,0 3,800 240 3,500 300 1,300 120 6,0 3,200 260 2,900 300 1,100 140 8,0 2,400 240 2,200 270 800 120 10,0 1,900 220 1,700 250 650 110 12,0 1,600 200 1,400 230 550 100 16,0 1,200 130 1,100 200 400 80 20,0 950 95 890 90 320 60 25,0 760 75 700 70 250 50 Grooving doc 0,3 D 0,2 D 0,15 D J23 Coated Endmills
