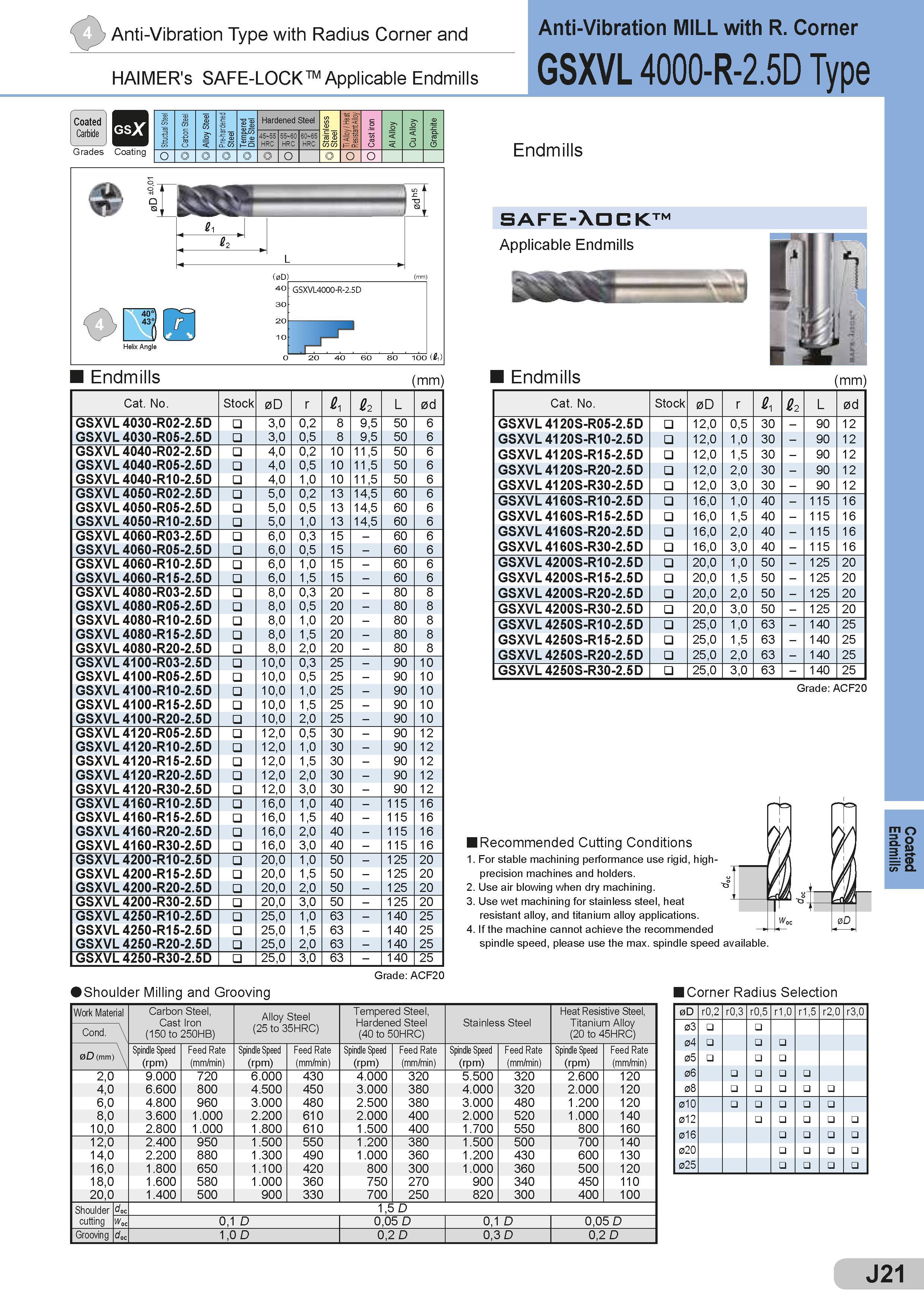

4 Anti-Vibration Type with Radius Corner and HAIMER's SAFE-LOCK TM Applicable Endmills Grades Coating Stmctual Steel Carbon Steel Alloy Steel Pre-hardened Steel Tempered Die Steel Hardened Steel Stainless Steel Ti Alloy / Heat Resistant Alloy Cast iron Al Alloy Cu Alloy Graphite 45 55 HRC 55 60 HRC 60 65 HRC 0 0 0 0 O O O 0 0 0 40 GSXVL4000-R-2.5D 30 IB 20 Helix Angle w 0 20 40 60 80 100 (£1) Anti-Vibration MILL with R. Corner GSXVL 4000-R-2.5D Type Endmills (mm) Endmills safe-Xdck Applicable Endmills Endmills li 1 5 i . 1 1 ll i , L 3 E mm (mm) L Cat. No. Stock 0D r 4 1.2 L 0d GSXVL 4030-R02-2.5D 3,0 0,2 8 9,5 50 6 GSXVL 4030-R05-2.5D 3,0 0,5 8 9,5 50 6 GSXVL 4040-R02-2.5D 4,0 0,2 10 11,5 50 6 GSXVL 4040-R05-2.5D 4,0 0,5 10 11,5 50 6 GSXVL 4040-R10-2.5D 4,0 1,0 10 11,5 50 6 GSXVL 4050-R02-2.5D 5,0 0,2 13 14,5 60 6 GSXVL 4050-R05-2.5D 5,0 0,5 13 14,5 60 6 GSXVL 4050-R10-2.5D 5,0 1,0 13 14,5 60 6 GSXVL 4060-R03-2.5D 6,0 0,3 15 - 60 6 GSXVL 4060-R05-2.5D 6,0 0,5 15 - 60 6 GSXVL 4060-R10-2.5D 6,0 1,0 15 - 60 6 GSXVL 4060-R15-2.5D 6,0 1,5 15 - 60 6 GSXVL 4080-R03-2.5D 8,0 0,3 20 - 80 8 GSXVL 4080-R05-2.5D 8,0 0,5 20 - 80 8 GSXVL 4080-R10-2.5D 8,0 1,0 20 - 80 8 GSXVL 4080-R15-2.5D 8,0 1,5 20 - 80 8 GSXVL 4080-R20-2.5D 8,0 2,0 20 - 80 8 GSXVL 4100-R03-2.5D 10,0 0,3 25 - 90 10 GSXVL 4100-R05-2.5D 10,0 0,5 25 - 90 10 GSXVL 4100-R10-2.5D 10,0 1,0 25 - 90 10 GSXVL 4100-R15-2.5D 10,0 1,5 25 - 90 10 GSXVL 4100-R20-2.5D 10,0 2,0 25 - 90 10 GSXVL 4120-R05-2.5D 12,0 0,5 30 - 90 12 GSXVL 4120-R10-2.5D 12,0 1,0 30 - 90 12 GSXVL 4120-R15-2.5D 12,0 1,5 30 - 90 12 GSXVL 4120-R20-2.5D 12,0 2,0 30 - 90 12 GSXVL 4120-R30-2.5D 12,0 3,0 30 - 90 12 GSXVL 4160-R10-2.5D 16,0 1,0 40 - 115 16 GSXVL 4160-R15-2.5D 16,0 1,5 40 - 115 16 GSXVL 4160-R20-2.5D 16,0 2,0 40 - 115 16 GSXVL 4160-R30-2.5D 16,0 3,0 40 - 115 16 GSXVL 4200-R10-2.5D 20,0 1,0 50 - 125 20 GSXVL 4200-R15-2.5D 20,0 1,5 50 - 125 20 GSXVL 4200-R20-2.5D 20,0 2,0 50 - 125 20 GSXVL 4200-R30-2.5D 20,0 3,0 50 - 125 20 GSXVL 4250-R10-2.5D 25,0 1,0 63 - 140 25 GSXVL 4250-R15-2.5D 25,0 1,5 63 - 140 25 GSXVL 4250-R20-2.5D 25,0 2,0 63 - 140 25 GSXVL 4250-R30-2.5D 25,0 3,0 63 - 140 25 Grade: ACF20 Cat. No. Stock 0D r 4 22 L 0d GSXVL 4120S-R05-2.5D 12,0 0,5 30 - 90 12 GSXVL 4120S-R10-2.5D 12,0 1,0 30 - 90 12 GSXVL 4120S-R15-2.5D 12,0 1,5 30 - 90 12 GSXVL 4120S-R20-2.5D 12,0 2,0 30 - 90 12 GSXVL 4120S-R30-2.5D 12,0 3,0 30 - 90 12 GSXVL 4160S-R10-2.5D 16,0 1,0 40 - 115 16 GSXVL 4160S-R15-2.5D 16,0 1,5 40 - 115 16 GSXVL 4160S-R20-2.5D 16,0 2,0 40 - 115 16 GSXVL 4160S-R30-2.5D 16,0 3,0 40 - 115 16 GSXVL 4200S-R10-2.5D 20,0 1,0 50 - 125 20 GSXVL 4200S-R15-2.5D 20,0 1,5 50 - 125 20 GSXVL 4200S-R20-2.5D 20,0 2,0 50 - 125 20 GSXVL 4200S-R30-2.5D 20,0 3,0 50 - 125 20 GSXVL 4250S-R10-2.5D 25,0 1,0 63 - 140 25 GSXVL 4250S-R15-2.5D 25,0 1,5 63 - 140 25 GSXVL 4250S-R20-2.5D 25,0 2,0 63 - 140 25 GSXVL 4250S-R30-2.5D 25,0 3,0 63 - 140 25 Grade: ACF20 Recommended Cutting Conditions 1. For stable machining performance use rigid, high-precision machines and holders. 2. Use air blowing when dry machining. 3. Use wet machining for stainless steel, heat resistant alloy, and titanium alloy applications. 4. If the machine cannot achieve the recommended spindle speed, please use the max. spindle speed available. Shoulder Milling and Grooving Corner Radius Selection Work Material Carbon Steel, Cast Iron (150 to 250HB) Alloy Steel Tempered Steel, Hardened Steel (40 to 50HRC) Heat Resistive Steel, Titanium Alloy (20 to 45HRC) Cond. \ (25 to 35HRC) 0D (mm) \ Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) 2,0 9.000 720 6.000 430 4.000 320 5.500 320 2.600 120 4,0 6.600 800 4.500 450 3.000 380 4.000 320 2.000 120 6,0 4.800 960 3.000 480 2.500 380 3.000 480 1.200 120 8,0 3.600 1.000 2.200 610 2.000 400 2.000 520 1.000 140 10,0 2.800 1.000 1.800 610 1.500 400 1.700 550 800 160 12,0 2.400 950 1.500 550 1.200 380 1.500 500 700 140 14,0 2.200 880 1.300 490 1.000 360 1.200 430 600 130 16,0 1.800 650 1.100 420 800 300 1.000 360 500 120 18,0 1.600 580 1.000 360 750 270 900 340 450 110 20,0 1.400 500 900 330 700 250 820 300 400 100 Shoulder doc 1,5 D cutting Woc 0,1 D 0,05 D 0,1 D 0,05 D Grooving doc 1,0 D 0,2 D 0,3 D 0,2 D 0D r0,2 r0,3 r0,5 r1,0 r1,5 r2,0 r3,0 03 04 05 06 08 010 012 016 020 025 J21 Coated Endmills
