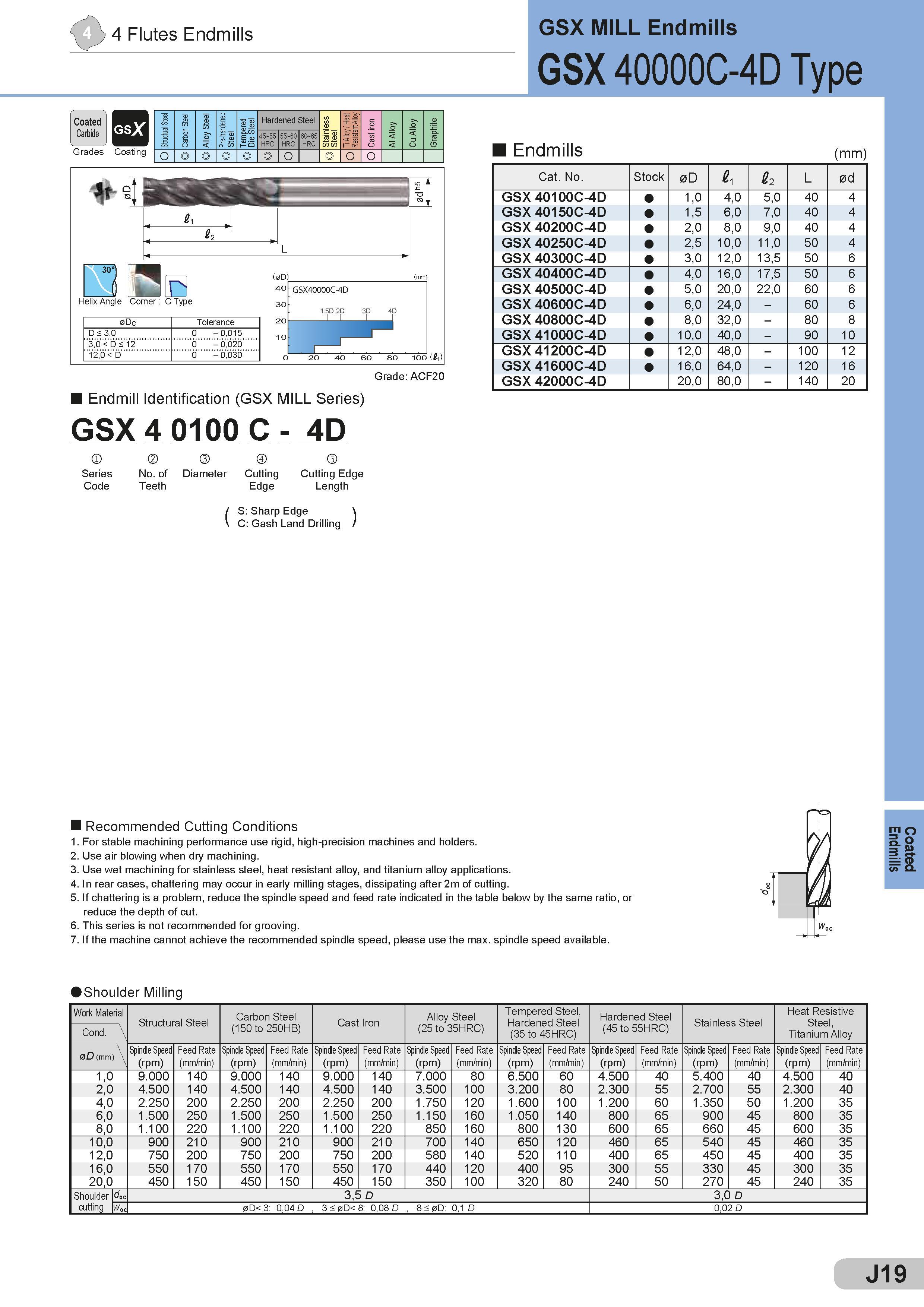

4 Flutes Endmills GSX MILL Endmills GSX 40000C-4D Type Grades Coating Stmctual Steel Carbon Steel Alloy Steel Pre-hardened Steel Tempered Die Steel Hardened Steel Stainless Steel Ti Alloy / Heat Resistant Alloy Cast iron Al Alloy Cu Alloy Graphite 45 55 HRC 55 60 HRC 60 65 HRC o o Helix Angle Corner : C Type 0Dc Tolerance D < 3,0 0 - 0,015 3,0 < D < 12 0 - 0,020 12,0 < D 0 - 0,030 GSX40000C-4D 1.5D 2D 3D 1 1 1 4D 20 40 60 80 100 (£1) Grade: ACF20 Endmill Identification (GSX MILL Series) GSX 4 0100 C - 4D j k i m Series No. of Diameter Cutting Cutting Edge Code Teeth Edge Length ( S: Sharp Edge ) C: Gash Land Drilling 0 Endmills (mm) Cat. No. Stock 0D 1 £2 L 0d GSX 40100C-4D 1,0 4,0 5,0 40 4 GSX 40150C-4D 1,5 6,0 7,0 40 4 GSX 40200C-4D 2,0 8,0 9,0 40 4 GSX 40250C-4D 2,5 10,0 11,0 50 4 GSX 40300C-4D 3,0 12,0 13,5 50 6 GSX 40400C-4D 4,0 16,0 17,5 50 6 GSX 40500C-4D 5,0 20,0 22,0 60 6 GSX 40600C-4D 6,0 24,0 - 60 6 GSX 40800C-4D 8,0 32,0 - 80 8 GSX 41000C-4D 10,0 40,0 - 90 10 GSX 41200C-4D 12,0 48,0 - 100 12 GSX 41600C-4D 16,0 64,0 - 120 16 GSX 42000C-4D 20,0 80,0 - 140 20 Recommended Cutting Conditions 1. For stable machining performance use rigid, high-precision machines and holders. 2. Use air blowing when dry machining. 3. Use wet machining for stainless steel, heat resistant alloy, and titanium alloy applications. 4. In rear cases, chattering may occur in early milling stages, dissipating after 2m of cutting. 5. If chattering is a problem, reduce the spindle speed and feed rate indicated in the table below by the same ratio, or reduce the depth of cut. 6. This series is not recommended for grooving. 7. If the machine cannot achieve the recommended spindle speed, please use the max. spindle speed available. Shoulder Milling Work Material Structural Steel Carbon Steel (150 to 250HB) Cast Iron Alloy Steel (25 to 35HRC) Tempered Steel, Hardened Steel (35 to 45HRC) Hardened Steel (45 to 55HRC) Stainless Steel Heat Resistive Steel, Titanium Alloy Cond. \ Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) 1,0 9.000 140 9.000 140 9.000 140 7.000 80 6.500 60 4.500 40 5.400 40 4.500 40 2,0 4.500 140 4.500 140 4.500 140 3.500 100 3.200 80 2.300 55 2.700 55 2.300 40 4,0 2.250 200 2.250 200 2.250 200 1.750 120 1.600 100 1.200 60 1.350 50 1.200 35 6,0 1.500 250 1.500 250 1.500 250 1.150 160 1.050 140 800 65 900 45 800 35 8,0 1.100 220 1.100 220 1.100 220 850 160 800 130 600 65 660 45 600 35 10,0 900 210 900 210 900 210 700 140 650 120 460 65 540 45 460 35 12,0 750 200 750 200 750 200 580 140 520 110 400 65 450 45 400 35 16,0 550 170 550 170 550 170 440 120 400 95 300 55 330 45 300 35 20,0 450 150 450 150 450 150 350 100 320 80 240 50 270 45 240 35 Shoulder doc 3,5 D 3,0 D cutting Woc 0D< 3: 0,04 D 3 < 0D< 8: 0,08 D , 8 < 0D: 0,1 D 0,02 D J19 Coated Endmills
