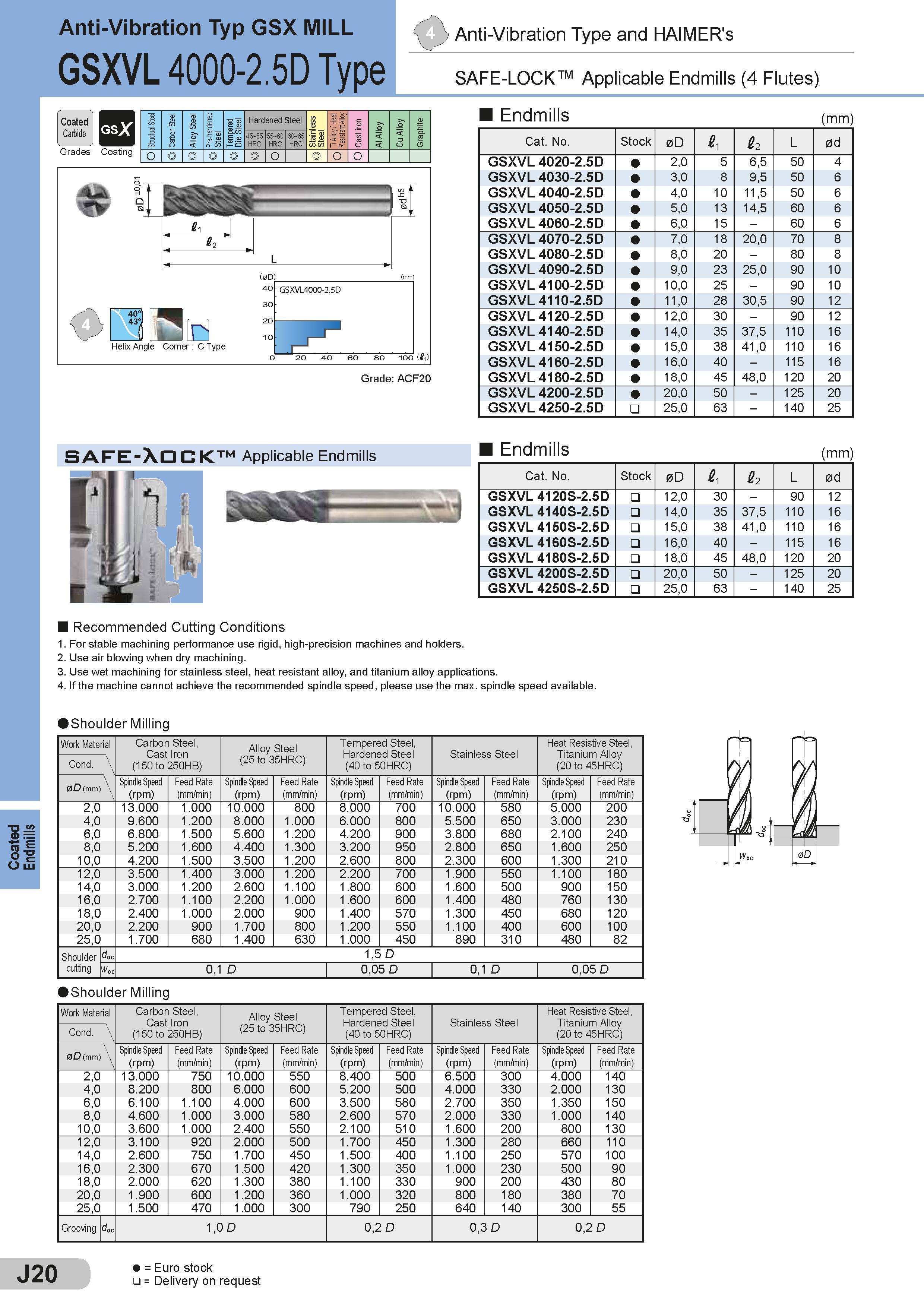

366 Каталог SUMITOMO 2018 Инструмент металлорежущий Пластины Резцы Фрезы Сверла Стр.J20

Каталог SUMITOMO 2018 Инструмент металлорежущий Стр. J20 0366 Lab2u

Coated Endmills Anti-Vibration Typ GSX MILL Anti-Vibration Type and HAIMER's GSXVL 4000-2.5D Type I Coated I Carbide Grades Coating Stmctual Steel Carbon Steel Alloy Steel Pre-hardened Steel Tempered Die Steel Hardened Steel Stainless Steel Ti Alloy / Heat Resistant Alloy Cast iron Al Alloy Cu Alloy Graphite 45 55 HRC 55 60 HRC 60 65 HRC o o Helix Angle Corner : C Type 20 40 60 80 100 (tfi) Grade: ACF20 SAFE-LOCK TM Applicable Endmills (4 Flutes) Endmills (mm) Cat. No. Stock 0D 4 2 L 0d GSXVL 4020-2.5D 2,0 5 6,5 50 4 GSXVL 4030-2.5D 3,0 8 9,5 50 6 GSXVL 4040-2.5D 4,0 10 11,5 50 6 GSXVL 4050-2.5D 5,0 13 14,5 60 6 GSXVL 4060-2.5D 6,0 15 - 60 6 GSXVL 4070-2.5D 7,0 18 20,0 70 8 GSXVL 4080-2.5D 8,0 20 - 80 8 GSXVL 4090-2.5D 9,0 23 25,0 90 10 GSXVL 4100-2.5D 10,0 25 - 90 10 GSXVL 4110-2.5D 11,0 28 30,5 90 12 GSXVL 4120-2.5D 12,0 30 - 90 12 GSXVL 4140-2.5D 14,0 35 37,5 110 16 GSXVL 4150-2.5D 15,0 38 41,0 110 16 GSXVL 4160-2.5D 16,0 40 - 115 16 GSXVL 4180-2.5D 18,0 45 48,0 120 20 GSXVL 4200-2.5D 20,0 50 - 125 20 GSXVL 4250-2.5D 25,0 63 - 140 25 0 SAFE-XD C K Applicable Endmills Endmills (mm) Cat. No. Stock 0D 4 &2 L 0d GSXVL 4120S-2.5D 12,0 30 - 90 12 GSXVL 4140S-2.5D 14,0 35 37,5 110 16 GSXVL 4150S-2.5D 15,0 38 41,0 110 16 GSXVL 4160S-2.5D 16,0 40 - 115 16 GSXVL 4180S-2.5D 18,0 45 48,0 120 20 GSXVL 4200S-2.5D 20,0 50 - 125 20 GSXVL 4250S-2.5D 25,0 63 - 140 25 Recommended Cutting Conditions 1. For stable machining performance use rigid, high-precision machines and holders. 2. Use air blowing when dry machining. 3. Use wet machining for stainless steel, heat resistant alloy, and titanium alloy applications. 4. If the machine cannot achieve the recommended spindle speed, please use the max. spindle speed available. Shoulder Milling Work Material Carbon Steel, Cast Iron (150 to 250HB) Alloy Steel Tempered Steel, Hardened Steel (40 to 50HRC) Heat Resistive Steel, Titanium Alloy (20 to 45HRC) Cond. \ (25 to 35HRC) 0D (mm) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) 2,0 13.000 1.000 10.000 800 8.000 700 10.000 580 5.000 200 4,0 9.600 1.200 8.000 1.000 6.000 800 5.500 650 3.000 230 6,0 6.800 1.500 5.600 1.200 4.200 900 3.800 680 2.100 240 8,0 5.200 1.600 4.400 1.300 3.200 950 2.800 650 1.600 250 10,0 4.200 1.500 3.500 1.200 2.600 800 2.300 600 1.300 210 12,0 3.500 1.400 3.000 1.200 2.200 700 1.900 550 1.100 180 14,0 3.000 1.200 2.600 1.100 1.800 600 1.600 500 900 150 16,0 2.700 1.100 2.200 1.000 1.600 600 1.400 480 760 130 18,0 2.400 1.000 2.000 900 1.400 570 1.300 450 680 120 20,0 2.200 900 1.700 800 1.200 550 1.100 400 600 100 25,0 1.700 680 1.400 630 1.000 450 890 310 480 82 Shoulder doc 1,5 D cutting Woc 0,1 D 0,05 D 0,1 D 0,05 D Shoulder Milling Work Material Carbon Steel, Cast Iron (150 to 250HB) Alloy Steel Tempered Steel, Hardened Steel (40 to 50HRC) Heat Resistive Steel, Titanium Alloy (20 to 45HRC) Cond. \ (25 to 35HRC) 0D (mm) \ Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) 2,0 13.000 750 10.000 550 8.400 500 6.500 300 4.000 140 4,0 8.200 800 6.000 600 5.200 500 4.000 330 2.000 130 6,0 6.100 1.100 4.000 600 3.500 580 2.700 350 1.350 150 8,0 4.600 1.000 3.000 580 2.600 570 2.000 330 1.000 140 10,0 3.600 1.000 2.400 550 2.100 510 1.600 200 800 130 12,0 3.100 920 2.000 500 1.700 450 1.300 280 660 110 14,0 2.600 750 1.700 450 1.500 400 1.100 250 570 100 16,0 2.300 670 1.500 420 1.300 350 1.000 230 500 90 18,0 2.000 620 1.300 380 1.100 330 900 200 430 80 20,0 1.900 600 1.200 360 1.000 320 800 180 380 70 25,0 1.500 470 1.000 300 790 250 640 140 300 55 Grooving doc 1,0 D 0,2 D 0,3 D 0,2 D J20 = Euro stock = Delivery on request
