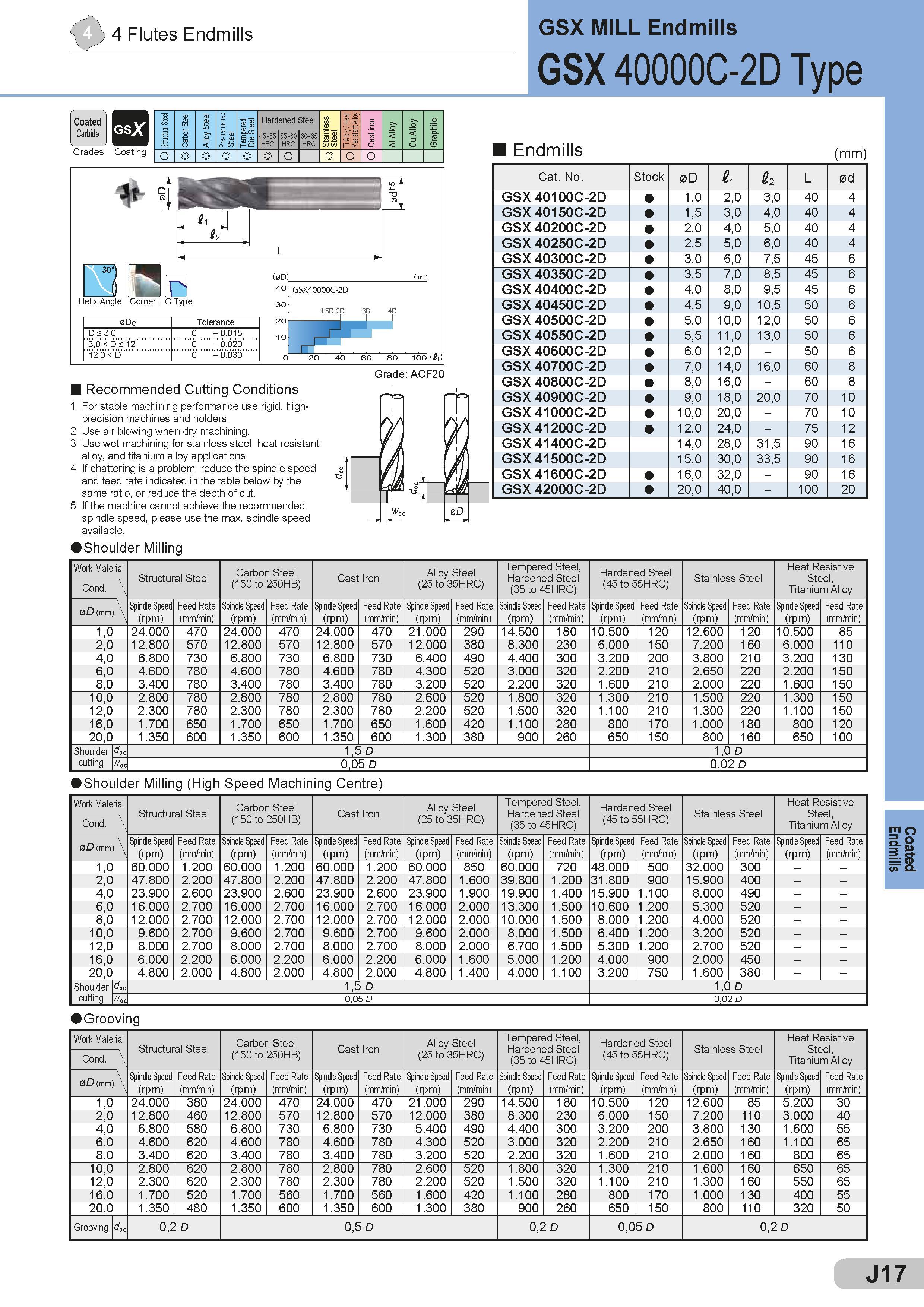

363 Каталог SUMITOMO 2018 Инструмент металлорежущий Пластины Резцы Фрезы Сверла Стр.J17

Каталог SUMITOMO 2018 Инструмент металлорежущий Стр. J17 0363 Lab2u

4 Flutes Endmills Grades Coating Stmctual Steel Carbon Steel Alloy Steel Pre-hardened Steel Tempered Die Steel Hardened Steel Stainless Steel Ti Alloy / Heat Resistant Alloy Cast iron Al Alloy Cu Alloy Graphite 45 55 HRC 55 60 HRC 60 65 HRC o o 12 elix Angle Corner : C Type ( 0D) 40 0Dc Tolerance D < 3,0 0 - 0,015 3,0 < D < 12 0 - 0,020 12,0 < D 0 - 0,030 GSX40000C-2D 20 40 60 80 100 ( £i) Grade: ACF20 Recommended Cutting Conditions 1. For stable machining performance use rigid, high-precision machines and holders. 2. Use air blowing when dry machining. 3. Use wet machining for stainless steel, heat resistant alloy, and titanium alloy applications. 4. If chattering is a problem, reduce the spindle speed and feed rate indicated in the table below by the same ratio, or reduce the depth of cut. 5. If the machine cannot achieve the recommended spindle speed, please use the max. spindle speed available. Shoulder Milling GSX MILL Endmills GSX 40000C-2D Type Endmills (mm) Cat. No. Stock 0D 1 2 L 0d GSX 40100C-2D 1,0 2,0 3,0 40 4 GSX 40150C-2D 1,5 3,0 4,0 40 4 GSX 40200C-2D 2,0 4,0 5,0 40 4 GSX 40250C-2D 2,5 5,0 6,0 40 4 GSX 40300C-2D 3,0 6,0 7,5 45 6 GSX 40350C-2D 3,5 7,0 8,5 45 6 GSX 40400C-2D 4,0 8,0 9,5 45 6 GSX 40450C-2D 4,5 9,0 10,5 50 6 GSX 40500C-2D 5,0 10,0 12,0 50 6 GSX 40550C-2D 5,5 11,0 13,0 50 6 GSX 40600C-2D 6,0 12,0 - 50 6 GSX 40700C-2D 7,0 14,0 16,0 60 8 GSX 40800C-2D 8,0 16,0 - 60 8 GSX 40900C-2D 9,0 18,0 20,0 70 10 GSX 41000C-2D 10,0 20,0 - 70 10 GSX 41200C-2D 12,0 24,0 - 75 12 GSX 41400C-2D 14,0 28,0 31,5 90 16 GSX 41500C-2D 15,0 30,0 33,5 90 16 GSX 41600C-2D 16,0 32,0 - 90 16 GSX 42000C-2D 20,0 40,0 - 100 20 L 4D 20 Work Material Structural Steel Carbon Steel (150 to 250HB) Cast Iron Alloy Steel (25 to 35HRC) Tempered Steel, Hardened Steel (35 to 45HRC) Hardened Steel (45 to 55HRC) Stainless Steel Heat Resistive Steel, Titanium Alloy Cond. \ 0D (mm) \ Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) 1,0 24.000 470 24.000 470 24.000 470 21.000 290 14.500 180 10.500 120 12.600 120 10.500 85 2,0 4,0 12.800 6.800 570 730 12.800 6.800 570 730 12.800 6.800 570 730 12.000 6.400 380 490 8.300 4.400 230 300 6.000 3.200 150 200 7.200 3.800 160 210 6.000 3.200 110 130 6,0 8,0 4.600 3.400 780 780 4.600 3.400 780 780 4.600 3.400 780 780 4.300 3.200 520 520 3.000 2.200 320 320 2.200 1.600 210 210 2.650 2.000 220 220 2.200 1.600 150 150 10,0 12,0 2.800 2.300 780 780 2.800 2.300 780 780 2.800 2.300 780 780 2.600 2.200 520 520 1.800 1.500 320 320 1.300 1.100 210 210 1.500 1.300 220 220 1.300 1.100 150 150 16,0 20,0 1.700 1.350 650 600 1.700 1.350 650 600 1.700 1.350 650 600 1.600 1.300 420 380 1.100 900 280 260 800 650 170 150 1.000 800 180 160 800 650 120 100 Shoulder cutting doc 1,5 D 1,0 D Woc 0,05 D 0,02 D Shoulder Milling (High Speed Machining Centre) Work Material Structural Steel Carbon Steel (150 to 250HB) Cast Iron Alloy Steel (25 to 35HRC) Tempered Steel, Hardened Steel (35 to 45HRC) Hardened Steel (45 to 55HRC) Stainless Steel Heat Resistive Steel, Titanium Alloy Cond. \ Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) 1,0 60.000 1.200 60.000 1.200 60.000 1.200 60.000 850 60.000 720 48.000 500 32.000 300 - - 2,0 47.800 2.200 47.800 2.200 47.800 2.200 47.800 1.600 39.800 1.200 31.800 900 15.900 400 - - 4,0 23.900 2.600 23.900 2.600 23.900 2.600 23.900 1.900 19.900 1.400 15.900 1.100 8.000 490 - - 6,0 16.000 2.700 16.000 2.700 16.000 2.700 16.000 2.000 13.300 1.500 10.600 1.200 5.300 520 - - 8,0 12.000 2.700 12.000 2.700 12.000 2.700 12.000 2.000 10.000 1.500 8.000 1.200 4.000 520 - - 10,0 9.600 2.700 9.600 2.700 9.600 2.700 9.600 2.000 8.000 1.500 6.400 1.200 3.200 520 - - 12,0 8.000 2.700 8.000 2.700 8.000 2.700 8.000 2.000 6.700 1.500 5.300 1.200 2.700 520 - - 16,0 6.000 2.200 6.000 2.200 6.000 2.200 6.000 1.600 5.000 1.200 4.000 900 2.000 450 - - 20,0 4.800 2.000 4.800 2.000 4.800 2.000 4.800 1.400 4.000 1.100 3.200 750 1.600 380 - - Shoulder doc 1,5 D 1,0 D cutting Woc 0,05 D 0,02 D Grooving Work Material Cond. \ Structural Steel Carbon Steel (150 to 250HB) Cast Iron Alloy Steel (25 to 35HRC) Tempered Steel, Hardened Steel (35 to 45HRC) Hardened Steel (45 to 55HRC) Stainless Steel Heat Resistive Steel, Titanium Alloy 0D (mm) \ Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) 1,0 24.000 380 24.000 470 24.000 470 21.000 290 14.500 180 10.500 120 12.600 85 5.200 30 2,0 4,0 12.800 6.800 460 580 12.800 6.800 570 730 12.800 6.800 570 730 12.000 5.400 380 490 8.300 4.400 230 300 6.000 3.200 150 200 7.200 3.800 110 130 3.000 1.600 40 55 6,0 8,0 4.600 3.400 620 620 4.600 3.400 780 780 4.600 3.400 780 780 4.300 3.200 520 520 3.000 2.200 320 320 2.200 1.600 210 210 2.650 2.000 160 160 1.100 800 65 65 10,0 12,0 2.800 2.300 620 620 2.800 2.300 780 780 2.800 2.300 780 780 2.600 2.200 520 520 1.800 1.500 320 320 1.300 1.100 210 210 1.600 1.300 160 160 650 550 65 65 16,0 20,0 1.700 1.350 520 480 1.700 1.350 560 600 1.700 1.350 560 600 1.600 1.300 420 380 1.100 900 280 260 800 650 170 150 1.000 800 130 110 400 320 55 50 Grooving doc 0,2 D 0,5 D 0,2 D 0,05 D 0,2 D J17 Coated Endmills
