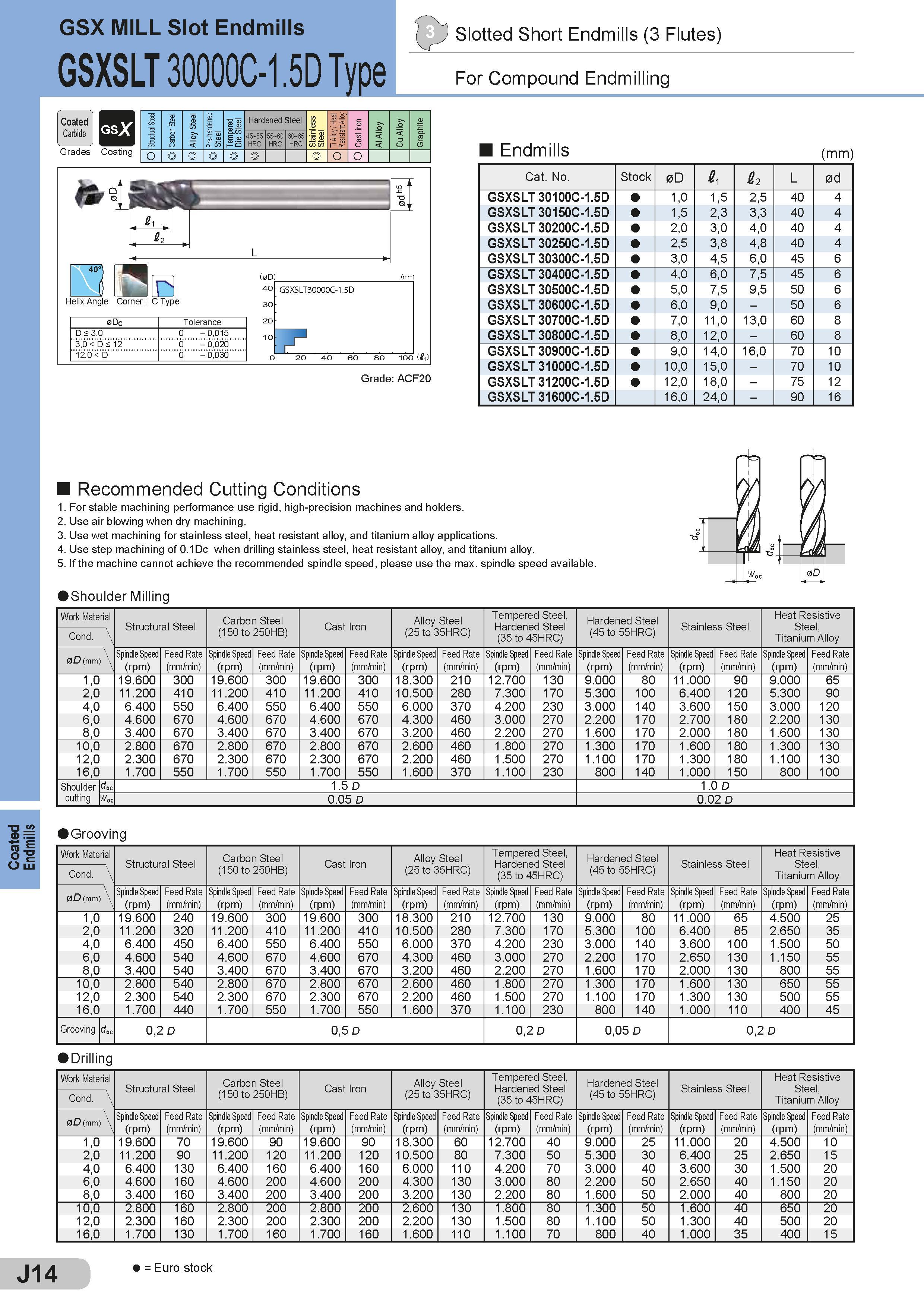

Coated Endmills GSX MILL Slot Endmills E Slotted Short Endmills (3 Flutes) GSXSLT 30000C-1.5D Type For Compound Endmilling Grades Coating Stmctual Steel Carbon Steel Alloy Steel Pre-hardened Steel Tempered Die Steel Hardened Steel Stainless Steel Ti Alloy / Heat Resistant Alloy Cast iron Al Alloy Cu Alloy Graphite 45 55 HRC 55 60 HRC 60 65 HRC o Helix Angle Corner : C Type 0Dc Tolerance D < 3,0 0 - 0,015 3,0 < D < 12 0 - 0,020 12,0 < D 0 - 0,030 20 40 60 80 100 (tfi) Grade: ACF20 3U 20 0 Endmills (mm) Cat. No. Stock 0D 4 &2 L 0d GSXSLT 30100C-1.5D 1,0 1,5 2,5 40 4 GSXSLT 30150C-1.5D 1,5 2,3 3,3 40 4 GSXSLT 30200C-1.5D 2,0 3,0 4,0 40 4 GSXSLT 30250C-1.5D 2,5 3,8 4,8 40 4 GSXSLT 30300C-1.5D 3,0 4,5 6,0 45 6 GSXSLT 30400C-1.5D 4,0 6,0 7,5 45 6 GSXSLT 30500C-1.5D 5,0 7,5 9,5 50 6 GSXSLT 30600C-1.5D 6,0 9,0 - 50 6 GSXSLT 30700C-1.5D 7,0 11,0 13,0 60 8 GSXSLT 30800C-1.5D 8,0 12,0 - 60 8 GSXSLT 30900C-1.5D 9,0 14,0 16,0 70 10 GSXSLT 31000C-1.5D 10,0 15,0 - 70 10 GSXSLT 31200C-1.5D 12,0 18,0 - 75 12 GSXSLT 31600C-1.5D 16,0 24,0 - 90 16 Recommended Cutting Conditions 1. For stable machining performance use rigid, high-precision machines and holders. 2. Use air blowing when dry machining. 3. Use wet machining for stainless steel, heat resistant alloy, and titanium alloy applications. 4. Use step machining of 0.1Dc when drilling stainless steel, heat resistant alloy, and titanium alloy. 5. If the machine cannot achieve the recommended spindle speed, please use the max. spindle speed available. Shoulder Milling Work Material Carbon Steel Alloy Steel Tempered Steel, Hardened Steel (35 to 45HRC) Hardened Steel Heat Resistive Steel, Titanium Alloy Cond. \ (150 to 250HB) (25 to 35HRC) (45 to 55HRC) 0D (mm) \ Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) 1,0 19.600 300 19.600 300 19.600 300 18.300 210 12.700 130 9.000 80 11.000 90 9.000 65 2,0 11.200 410 11.200 410 11.200 410 10.500 280 7.300 170 5.300 100 6.400 120 5.300 90 4,0 6.400 550 6.400 550 6.400 550 6.000 370 4.200 230 3.000 140 3.600 150 3.000 120 6,0 4.600 670 4.600 670 4.600 670 4.300 460 3.000 270 2.200 170 2.700 180 2.200 130 8,0 3.400 670 3.400 670 3.400 670 3.200 460 2.200 270 1.600 170 2.000 180 1.600 130 10,0 2.800 670 2.800 670 2.800 670 2.600 460 1.800 270 1.300 170 1.600 180 1.300 130 12,0 2.300 670 2.300 670 2.300 670 2.200 460 1.500 270 1.100 170 1.300 180 1.100 130 16,0 1.700 550 1.700 550 1.700 550 1.600 370 1.100 230 800 140 1.000 150 800 100 Shoulder doc 1.5 D 1.0 D cutting Woc 0.05 D 0.02 D Grooving Work Material Carbon Steel Alloy Steel Tempered Steel, Hardened Steel (35 to 45HRC) Hardened Steel Heat Resistive Steel, Titanium Alloy Cond. \ (150 to 250HB) (25 to 35HRC) (45 to 55HRC) 0D (mm) \ Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) 1,0 19.600 240 19.600 300 19.600 300 18.300 210 12.700 130 9.000 80 11.000 65 4.500 25 2,0 11.200 320 11.200 410 11.200 410 10.500 280 7.300 170 5.300 100 6.400 85 2.650 35 4,0 6.400 450 6.400 550 6.400 550 6.000 370 4.200 230 3.000 140 3.600 100 1.500 50 6,0 4.600 540 4.600 670 4.600 670 4.300 460 3.000 270 2.200 170 2.650 130 1.150 55 8,0 3.400 540 3.400 670 3.400 670 3.200 460 2.200 270 1.600 170 2.000 130 800 55 10,0 2.800 540 2.800 670 2.800 670 2.600 460 1.800 270 1.300 170 1.600 130 650 55 12,0 2.300 540 2.300 670 2.300 670 2.200 460 1.500 270 1.100 170 1.300 130 500 55 16,0 1.700 440 1.700 550 1.700 550 1.600 370 1.100 230 800 140 1.000 110 400 45 Grooving doc 0,2 D 0,5 D 0,2 D 0,05 D 0,2 D Drilling Work Material Structural Steel Carbon Steel (150 to 250HB) Cast Iron Alloy Steel (25 to 35HRC) Tempered Steel, Hardened Steel (35 to 45HRC) Hardened Steel (45 to 55HRC) Stainless Steel Heat Resistive Steel, Titanium Alloy Cond. \ Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) 1,0 19.600 70 19.600 90 19.600 90 18.300 60 12.700 40 9.000 25 11.000 20 4.500 10 2,0 11.200 90 11.200 120 11.200 120 10.500 80 7.300 50 5.300 30 6.400 25 2.650 15 4,0 6.400 130 6.400 160 6.400 160 6.000 110 4.200 70 3.000 40 3.600 30 1.500 20 6,0 4.600 160 4.600 200 4.600 200 4.300 130 3.000 80 2.200 50 2.650 40 1.150 20 8,0 3.400 160 3.400 200 3.400 200 3.200 130 2.200 80 1.600 50 2.000 40 800 20 10,0 2.800 160 2.800 200 2.800 200 2.600 130 1.800 80 1.300 50 1.600 40 650 20 12,0 2.300 160 2.300 200 2.300 200 2.200 130 1.500 80 1.100 50 1.300 40 500 20 16,0 1.700 130 1.700 160 1.700 160 1.600 110 1.100 70 800 40 1.000 35 400 15 J14 = Euro stock
