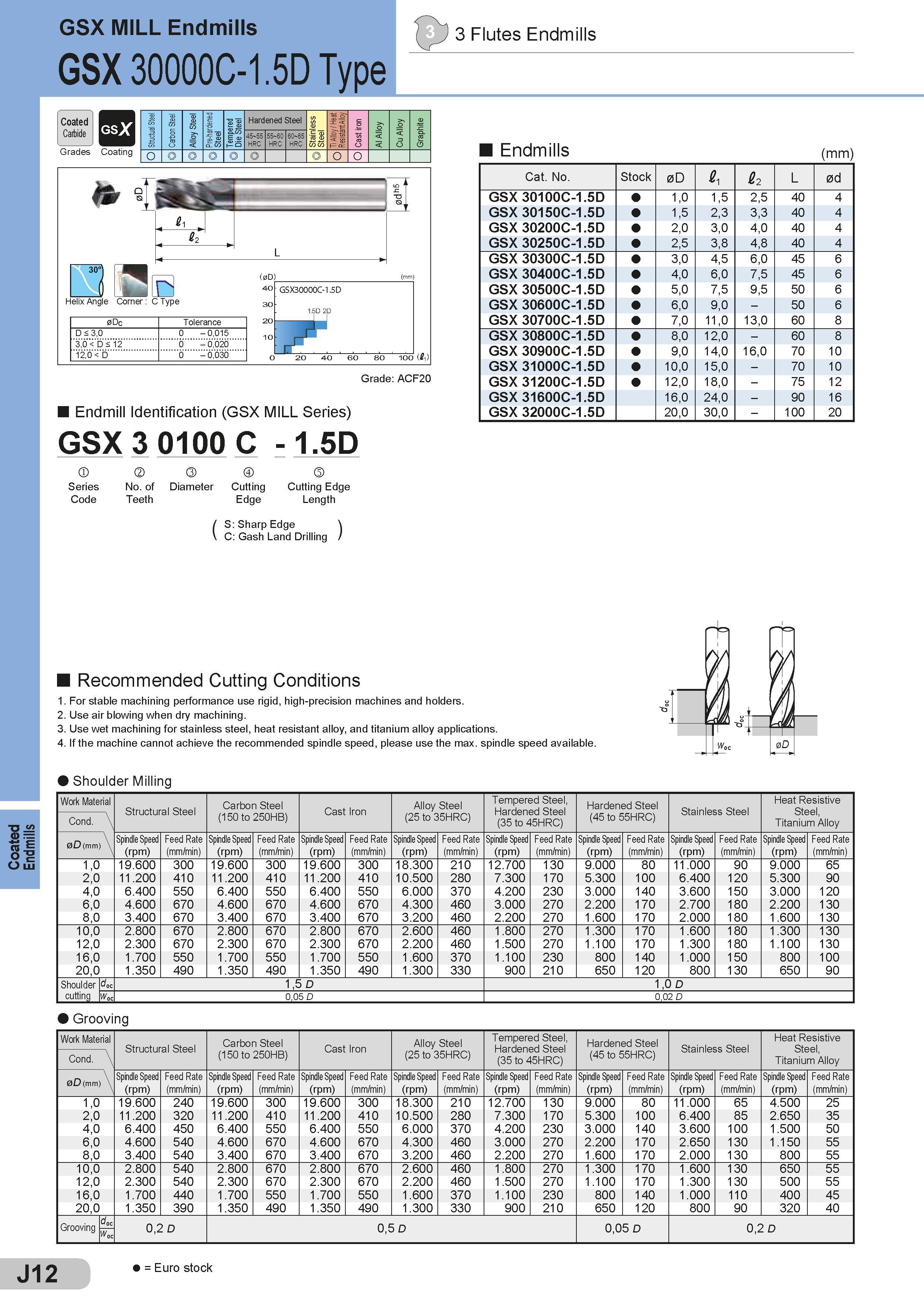

Coated Endmills GSX MILL Endmills GSX 30000C-1.5D Type & 3 Flutes Endmills Grades Coating Stmctual Steel Carbon Steel Alloy Steel Pre-hardened Steel Tempered Die Steel Hardened Steel Stainless Steel Ti Alloy / Heat Resistant Alloy Cast iron Al Alloy Cu Alloy Graphite 45 55 HRC 55 60 HRC 60 65 HRC o Helix Angle Corner : C Type 0Dc Tolerance D < 3,0 0 - 0,015 3,0 < D < 12 0 - 0,020 12,0 < D 0 - 0,030 20 40 60 80 100 (tfi) Grade: ACF20 Endmill Identification (GSX MILL Series) GSX 3 0100 C - 1.5D j Series Code k No. of Teeth Количество режущих зубьев Diameter Cutting Edge Cutting Edge Length ( S: Sharp Edge ) C: Gash Land Drilling Endmills (mm) Cat. No. Stock 0D 4 &2 L 0d GSX 30100C-1.5D 1,0 1,5 2,5 40 4 GSX 30150C-1.5D 1,5 2,3 3,3 40 4 GSX 30200C-1.5D 2,0 3,0 4,0 40 4 GSX 30250C-1.5D 2,5 3,8 4,8 40 4 GSX 30300C-1.5D 3,0 4,5 6,0 45 6 GSX 30400C-1.5D 4,0 6,0 7,5 45 6 GSX 30500C-1.5D 5,0 7,5 9,5 50 6 GSX 30600C-1.5D 6,0 9,0 - 50 6 GSX 30700C-1.5D 7,0 11,0 13,0 60 8 GSX 30800C-1.5D 8,0 12,0 - 60 8 GSX 30900C-1.5D 9,0 14,0 16,0 70 10 GSX 31000C-1.5D 10,0 15,0 - 70 10 GSX 31200C-1.5D 12,0 18,0 - 75 12 GSX 31600C-1.5D 16,0 24,0 - 90 16 GSX 32000C-1.5D 20,0 30,0 - 100 20 0 Recommended Cutting Conditions 1. For stable machining performance use rigid, high-precision machines and holders. 2. Use air blowing when dry machining. 3. Use wet machining for stainless steel, heat resistant alloy, and titanium alloy applications. 4. If the machine cannot achieve the recommended spindle speed, please use the max. spindle speed available. Shoulder Milling Work Material Carbon Steel Alloy Steel Tempered Steel, Hardened Steel (35 to 45HRC) Hardened Steel Heat Resistive Steel, Titanium Alloy Cond. \ (150 to 250HB) (25 to 35HRC) (45 to 55HRC) 0D (mm) \ Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) 1,0 19.600 300 19.600 300 19.600 300 18.300 210 12.700 130 9.000 80 11.000 90 9.000 65 2,0 11.200 410 11.200 410 11.200 410 10.500 280 7.300 170 5.300 100 6.400 120 5.300 90 4,0 6.400 550 6.400 550 6.400 550 6.000 370 4.200 230 3.000 140 3.600 150 3.000 120 6,0 4.600 670 4.600 670 4.600 670 4.300 460 3.000 270 2.200 170 2.700 180 2.200 130 8,0 3.400 670 3.400 670 3.400 670 3.200 460 2.200 270 1.600 170 2.000 180 1.600 130 10,0 2.800 670 2.800 670 2.800 670 2.600 460 1.800 270 1.300 170 1.600 180 1.300 130 12,0 2.300 670 2.300 670 2.300 670 2.200 460 1.500 270 1.100 170 1.300 180 1.100 130 16,0 1.700 550 1.700 550 1.700 550 1.600 370 1.100 230 800 140 1.000 150 800 100 20,0 1.350 490 1.350 490 1.350 490 1.300 330 900 210 650 120 800 130 650 90 Shoulder doc 1,5 D 1,0 D cutting Woc 0,05 D 0,02 D Grooving Work Material Cond. \ Structural Steel Carbon Steel (150 to 250HB) Cast Iron Alloy Steel (25 to 35HRC) Tempered Steel, Hardened Steel (35 to 45HRC) Hardened Steel (45 to 55HRC) Stainless Steel Heat Resistive Steel, Titanium Alloy 0D (mm) \ Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) 1,0 19.600 240 19.600 300 19.600 300 18.300 210 12.700 130 9.000 80 11.000 65 4.500 25 2,0 4,0 11.200 6.400 320 450 11.200 6.400 410 550 11.200 6.400 410 550 10.500 6.000 280 370 7.300 4.200 170 230 5.300 3.000 100 140 6.400 3.600 85 100 2.650 1.500 35 50 6,0 8,0 4.600 3.400 540 540 4.600 3.400 670 670 4.600 3.400 670 670 4.300 3.200 460 460 3.000 2.200 270 270 2.200 1.600 170 170 2.650 2.000 130 130 1.150 800 55 55 10,0 12,0 2.800 2.300 540 540 2.800 2.300 670 670 2.800 2.300 670 670 2.600 2.200 460 460 1.800 1.500 270 270 1.300 1.100 170 170 1.600 1.300 130 130 650 500 55 55 16,0 20,0 1.700 1.350 440 390 1.700 1.350 550 490 1.700 1.350 550 490 1.600 1.300 370 330 1.100 900 230 210 800 650 140 120 1.000 800 110 90 400 320 45 40 Grooving jfe 0,2 D 0,5 D 0,05 D 0,2 D J12 = Euro stock
