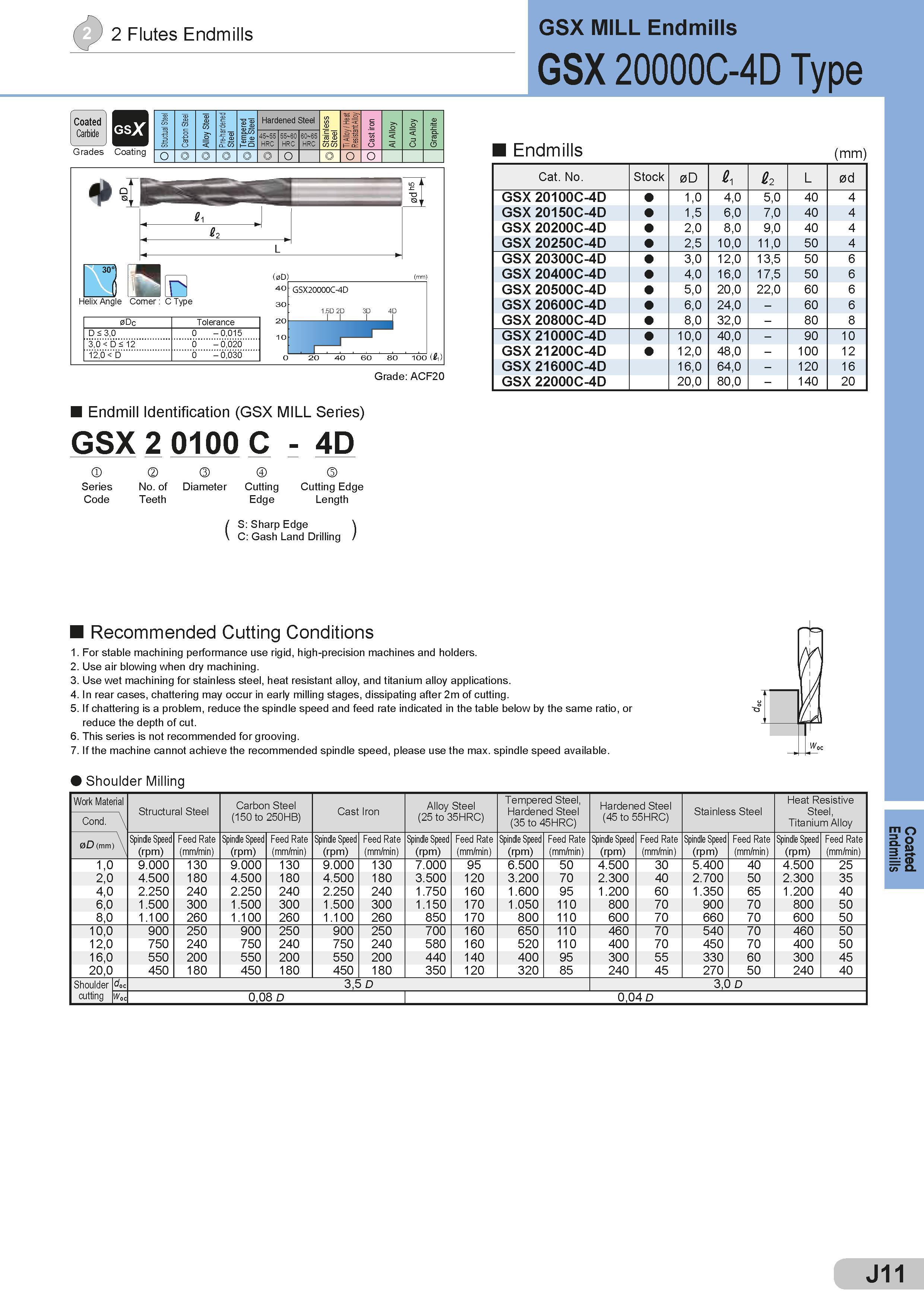

2 2 Flutes Endmills GSX MILL Endmills GSX 20000C-4D Type Grades Coating Stmctual Steel Carbon Steel Alloy Steel Pre-hardened Steel Tempered Die Steel Hardened Steel Stainless Steel Ti Alloy / Heat Resistant Alloy Cast iron Al Alloy Cu Alloy Graphite 45 55 HRC 55 60 HRC 60 65 HRC o o 12 elix Angle Corner : C Type 0Dc Tolerance D < 3,0 0 - 0,015 3,0 < D < 12 0 - 0,020 12,0 < D 0 - 0,030 ( 0D) 40 30 20 GSX20000C-4D 1.5D2D 3D 1 1 1 4D 20 40 60 80 100 ( th) Grade: ACF20 L 0 Endmills (mm) Cat. No. Stock 0D 1 2 L 0d GSX 20100C-4D 1,0 4,0 5,0 40 4 GSX 20150C-4D 1,5 6,0 7,0 40 4 GSX 20200C-4D 2,0 8,0 9,0 40 4 GSX 20250C-4D 2,5 10,0 11,0 50 4 GSX 20300C-4D 3,0 12,0 13,5 50 6 GSX 20400C-4D 4,0 16,0 17,5 50 6 GSX 20500C-4D 5,0 20,0 22,0 60 6 GSX 20600C-4D 6,0 24,0 - 60 6 GSX 20800C-4D 8,0 32,0 - 80 8 GSX 21000C-4D 10,0 40,0 - 90 10 GSX 21200C-4D 12,0 48,0 - 100 12 GSX 21600C-4D 16,0 64,0 - 120 16 GSX 22000C-4D 20,0 80,0 - 140 20 Endmill Identification (GSX MILL Series) GSX 2 0100 C - 4D j k m Series No. of Diameter Cutting Cutting Edge Code Teeth Edge Length ( S: Sharp Edge ) C: Gash Land Drilling Recommended Cutting Conditions 1. For stable machining performance use rigid, high-precision machines and holders. 2. Use air blowing when dry machining. 3. Use wet machining for stainless steel, heat resistant alloy, and titanium alloy applications. 4. In rear cases, chattering may occur in early milling stages, dissipating after 2m of cutting. 5. If chattering is a problem, reduce the spindle speed and feed rate indicated in the table below by the same ratio, or reduce the depth of cut. 6. This series is not recommended for grooving. 7. If the machine cannot achieve the recommended spindle speed, please use the max. spindle speed available. Shoulder Milling Work Material Structural Steel Carbon Steel (150 to 250HB) Cast Iron Alloy Steel (25 to 35HRC) Tempered Steel, Hardened Steel (35 to 45HRC) Hardened Steel (45 to 55HRC) Stainless Steel Heat Resistive Steel, Titanium Alloy Cond. \ Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) 1,0 9.000 130 9.000 130 9.000 130 7.000 95 6.500 50 4.500 30 5.400 40 4.500 25 2,0 4.500 180 4.500 180 4.500 180 3.500 120 3.200 70 2.300 40 2.700 50 2.300 35 4,0 2.250 240 2.250 240 2.250 240 1.750 160 1.600 95 1.200 60 1.350 65 1.200 40 6,0 1.500 300 1.500 300 1.500 300 1.150 170 1.050 110 800 70 900 70 800 50 8,0 1.100 260 1.100 260 1.100 260 850 170 800 110 600 70 660 70 600 50 10,0 900 250 900 250 900 250 700 160 650 110 460 70 540 70 460 50 12,0 750 240 750 240 750 240 580 160 520 110 400 70 450 70 400 50 16,0 550 200 550 200 550 200 440 140 400 95 300 55 330 60 300 45 20,0 450 180 450 180 450 180 350 120 320 85 240 45 270 50 240 40 Shoulder doc 3,5 D 3,0 D cutting Woc 0,08 D 0,04 D J11 Coated Endmills
