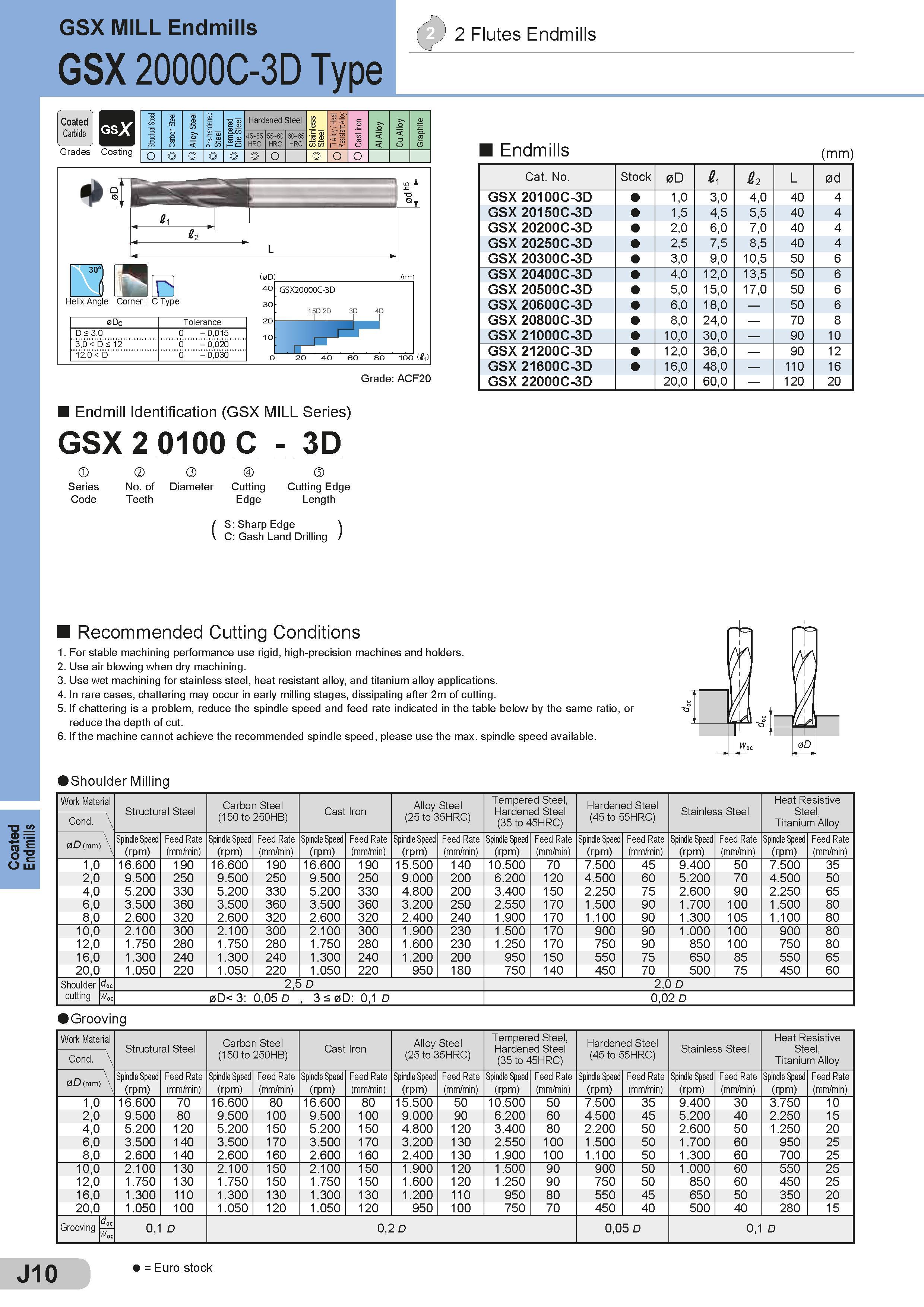

Coated Endmills GSX MILL Endmills GSX 20000C-3D Type 5 2 Flutes Endmills Grades Coating Stmctual Steel Carbon Steel Alloy Steel Pre-hardened Steel Tempered Die Steel Hardened Steel Stainless Steel Ti Alloy / Heat Resistant Alloy Cast iron Al Alloy Cu Alloy Graphite 45 55 HRC 55 60 HRC 60 65 HRC o o Helix Angle Corner : C Type 0Dc Tolerance D < 3,0 0 - 0,015 3,0 < D < 12 0 - 0,020 12,0 < D 0 - 0,030 GSX20000C-3D 15D2D 3D 4 1 1 1 D 20 40 60 80 100 (tfi) Grade: ACF20 Endmills (mm) Cat. No. Stock 0D 4 &2 L 0d GSX 20100C-3D 1,0 3,0 4,0 40 4 GSX 20150C-3D 1,5 4,5 5,5 40 4 GSX 20200C-3D 2,0 6,0 7,0 40 4 GSX 20250C-3D 2,5 7,5 8,5 40 4 GSX 20300C-3D 3,0 9,0 10,5 50 6 GSX 20400C-3D 4,0 12,0 13,5 50 6 GSX 20500C-3D 5,0 15,0 17,0 50 6 GSX 20600C-3D 6,0 18,0 50 6 GSX 20800C-3D 8,0 24,0 70 8 GSX 21000C-3D 10,0 30,0 90 10 GSX 21200C-3D 12,0 36,0 90 12 GSX 21600C-3D 16,0 48,0 110 16 GSX 22000C-3D 20,0 60,0 120 20 0 Endmill Identification (GSX MILL Series) GSX 2 0100 C - 3D j k m Series No. of Diameter Cutting Cutting Edge Code Teeth Edge Length ( S:Sharp Edge ) C: Gash Land Drilling Recommended Cutting Conditions 1. For stable machining performance use rigid, high-precision machines and holders. 2. Use air blowing when dry machining. 3. Use wet machining for stainless steel, heat resistant alloy, and titanium alloy applications. 4. In rare cases, chattering may occur in early milling stages, dissipating after 2m of cutting. 5. If chattering is a problem, reduce the spindle speed and feed rate indicated in the table below by the same ratio, or reduce the depth of cut. 6. If the machine cannot achieve the recommended spindle speed, please use the max. spindle speed available. Shoulder Milling Work Material Carbon Steel Alloy Steel Tempered Steel, Hardened Steel (35 to 45HRC) Hardened Steel Heat Resistive Steel, Titanium Alloy Cond. \ (150 to 250HB) (25 to 35HRC) (45 to 55HRC) 0D (mm) \ Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) 1,0 16.600 190 16.600 190 16.600 190 15.500 140 10.500 70 7.500 45 9.400 50 7.500 35 2,0 9.500 250 9.500 250 9.500 250 9.000 200 6.200 120 4.500 60 5.200 70 4.500 50 4,0 5.200 330 5.200 330 5.200 330 4.800 200 3.400 150 2.250 75 2.600 90 2.250 65 6,0 3.500 360 3.500 360 3.500 360 3.200 250 2.550 170 1.500 90 1.700 100 1.500 80 8,0 2.600 320 2.600 320 2.600 320 2.400 240 1.900 170 1.100 90 1.300 105 1.100 80 10,0 2.100 300 2.100 300 2.100 300 1.900 230 1.500 170 900 90 1.000 100 900 80 12,0 1.750 280 1.750 280 1.750 280 1.600 230 1.250 170 750 90 850 100 750 80 16,0 1.300 240 1.300 240 1.300 240 1.200 200 950 150 550 75 650 85 550 65 20,0 1.050 220 1.050 220 1.050 220 950 180 750 140 450 70 500 75 450 60 Shoulder doc 2,5 D 2,0 D cutting Woc 0D< 3: 0,05 D , 3 < 0D: 0,1 D 0,02 D Grooving Work Material Carbon Steel Alloy Steel Tempered Steel, Hardened Steel (35 to 45HRC) Hardened Steel Heat Resistive Steel, Titanium Alloy Cond. \ (150 to 250HB) (25 to 35HRC) (45 to 55HRC) 0D (mm) \ Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) 1,0 16.600 70 16.600 80 16.600 80 15.500 50 10.500 50 7.500 35 9.400 30 3.750 10 2,0 9.500 80 9.500 100 9.500 100 9.000 90 6.200 60 4.500 45 5.200 40 2.250 15 4,0 5.200 120 5.200 150 5.200 150 4.800 120 3.400 80 2.200 50 2.600 50 1.250 20 6,0 3.500 140 3.500 170 3.500 170 3.200 130 2.550 100 1.500 50 1.700 60 950 25 8,0 2.600 140 2.600 160 2.600 160 2.400 130 1.900 100 1.100 50 1.300 60 700 25 10,0 2.100 130 2.100 150 2.100 150 1.900 120 1.500 90 900 50 1.000 60 550 25 12,0 1.750 130 1.750 150 1.750 150 1.600 120 1.250 90 750 50 850 60 450 25 16,0 1.300 110 1.300 130 1.300 130 1.200 110 950 80 550 45 650 50 350 20 20,0 1.050 100 1.050 120 1.050 120 950 100 750 70 450 40 500 40 280 15 Grooving doc Woc 0,1 D 0,2 D 0,05 D 0,1 D J10 = Euro stock
