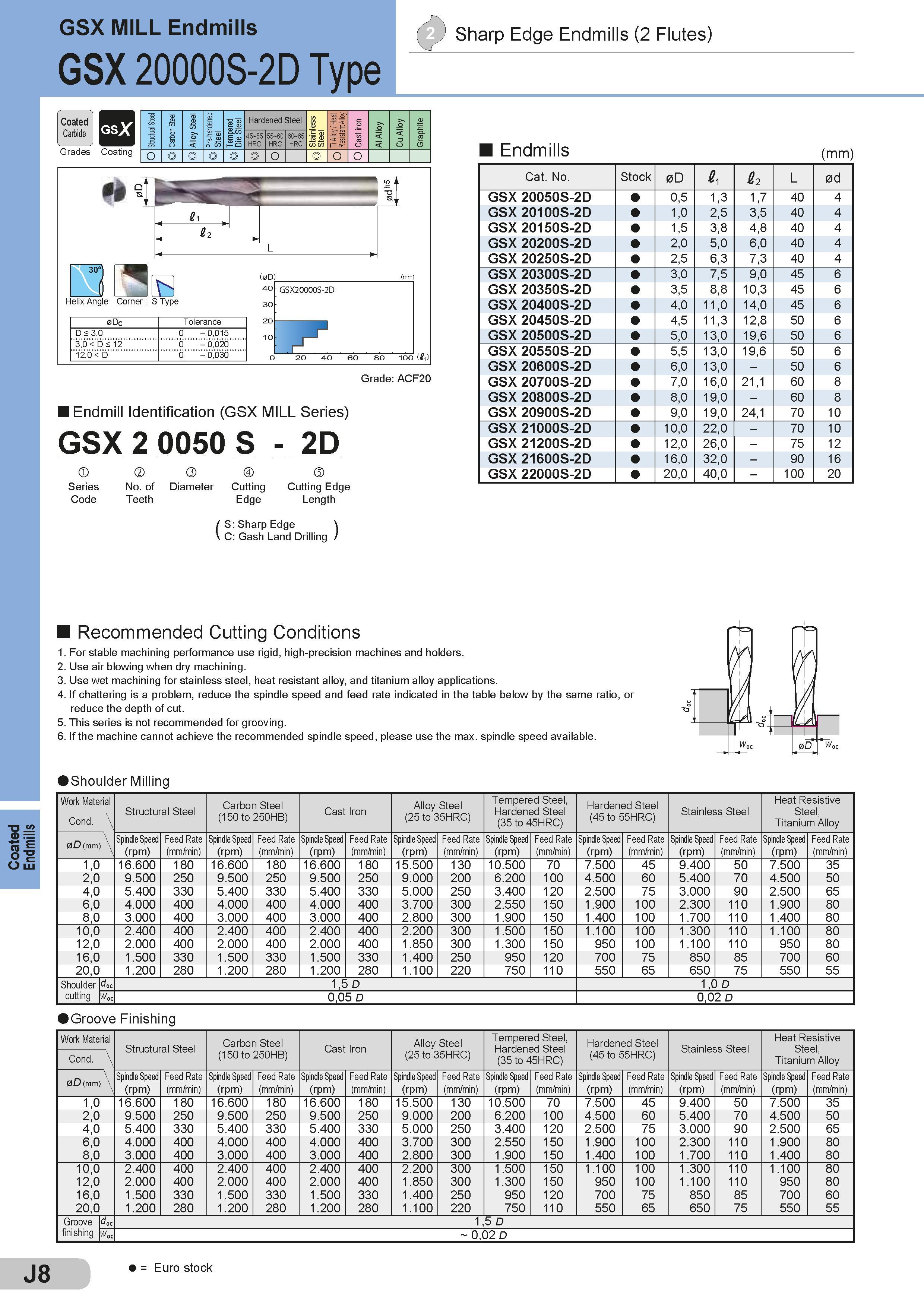

Coated Endmills GSX MILL Endmills GSX 20000S-2D Type 2 Sharp Edge Endmills (2 Flutes) Grades Coating Stmctual Steel Carbon Steel Alloy Steel Pre-hardened Steel Tempered Die Steel Hardened Steel Stainless Steel Ti Alloy / Heat Resistant Alloy Cast iron Al Alloy Cu Alloy Graphite 45 55 HRC 55 60 HRC 60 65 HRC o o 30° J Helix Angle Corner : S Type 0Dc Tolerance D < 3,0 0 - 0,015 3,0 < D < 12 0 - 0,020 12,0 < D 0 - 0,030 20 40 60 80 100 (tfi) Grade: ACF20 Endmill Identification (GSX MILL Series) GSX 2 0050 S - 2D j k Series No. of Code Teeth l Diameter Cutting Edge Cutting Edge Length ( S: Sharp Edge ) C: Gash Land Drilling Endmills (mm) Cat. No. Stock 0D 4 &2 L 0d GSX 20050S-2D 0,5 1,3 1,7 40 4 GSX 20100S-2D 1,0 2,5 3,5 40 4 GSX 20150S-2D 1,5 3,8 4,8 40 4 GSX 20200S-2D 2,0 5,0 6,0 40 4 GSX 20250S-2D 2,5 6,3 7,3 40 4 GSX 20300S-2D 3,0 7,5 9,0 45 6 GSX 20350S-2D 3,5 8,8 10,3 45 6 GSX 20400S-2D 4,0 11,0 14,0 45 6 GSX 20450S-2D 4,5 11,3 12,8 50 6 GSX 20500S-2D 5,0 13,0 19,6 50 6 GSX 20550S-2D 5,5 13,0 19,6 50 6 GSX 20600S-2D 6,0 13,0 - 50 6 GSX 20700S-2D 7,0 16,0 21,1 60 8 GSX 20800S-2D 8,0 19,0 - 60 8 GSX 20900S-2D 9,0 19,0 24,1 70 10 GSX 21000S-2D 10,0 22,0 - 70 10 GSX 21200S-2D 12,0 26,0 - 75 12 GSX 21600S-2D 16,0 32,0 - 90 16 GSX 22000S-2D 20,0 40,0 - 100 20 20 0 Recommended Cutting Conditions 1. For stable machining performance use rigid, high-precision machines and holders. 2. Use air blowing when dry machining. 3. Use wet machining for stainless steel, heat resistant alloy, and titanium alloy applications. 4. If chattering is a problem, reduce the spindle speed and feed rate indicated in the table below by the same ratio, or reduce the depth of cut. 5. This series is not recommended for grooving. 6. If the machine cannot achieve the recommended spindle speed, please use the max. spindle speed available. Shoulder Milling Work Material Carbon Steel Alloy Steel Tempered Steel, Hardened Steel (35 to 45HRC) Hardened Steel Heat Resistive Steel, Titanium Alloy Cond. \ (150 to 250HB) (25 to 35HRC) (45 to 55HRC) 0D (mm) \ Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) 1,0 16.600 180 16.600 180 16.600 180 15.500 130 10.500 70 7.500 45 9.400 50 7.500 35 2,0 9.500 250 9.500 250 9.500 250 9.000 200 6.200 100 4.500 60 5.400 70 4.500 50 4,0 5.400 330 5.400 330 5.400 330 5.000 250 3.400 120 2.500 75 3.000 90 2.500 65 6,0 4.000 400 4.000 400 4.000 400 3.700 300 2.550 150 1.900 100 2.300 110 1.900 80 8,0 3.000 400 3.000 400 3.000 400 2.800 300 1.900 150 1.400 100 1.700 110 1.400 80 10,0 2.400 400 2.400 400 2.400 400 2.200 300 1.500 150 1.100 100 1.300 110 1.100 80 12,0 2.000 400 2.000 400 2.000 400 1.850 300 1.300 150 950 100 1.100 110 950 80 16,0 1.500 330 1.500 330 1.500 330 1.400 250 950 120 700 75 850 85 700 60 20,0 1.200 280 1.200 280 1.200 280 1.100 220 750 110 550 65 650 75 550 55 Shoulder doc 1,5 D 1,0 D cutting Woc 0,05 D 0,02 D Groove Finishing Work Material Structural Steel Carbon Steel (150 to 250HB) Cast Iron Alloy Steel (25 to 35HRC) Tempered Steel, Hardened Steel (35 to 45HRC) Hardened Steel (45 to 55HRC) Stainless Steel Heat Resistive Steel, Titanium Alloy Cond. \ Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) 1,0 16.600 180 16.600 180 16.600 180 15.500 130 10.500 70 7.500 45 9.400 50 7.500 35 2,0 9.500 250 9.500 250 9.500 250 9.000 200 6.200 100 4.500 60 5.400 70 4.500 50 4,0 5.400 330 5.400 330 5.400 330 5.000 250 3.400 120 2.500 75 3.000 90 2.500 65 6,0 4.000 400 4.000 400 4.000 400 3.700 300 2.550 150 1.900 100 2.300 110 1.900 80 8,0 3.000 400 3.000 400 3.000 400 2.800 300 1.900 150 1.400 100 1.700 110 1.400 80 10,0 2.400 400 2.400 400 2.400 400 2.200 300 1.500 150 1.100 100 1.300 110 1.100 80 12,0 2.000 400 2.000 400 2.000 400 1.850 300 1.300 150 950 100 1.100 110 950 80 16,0 1.500 330 1.500 330 1.500 330 1.400 250 950 120 700 75 850 85 700 60 20,0 1.200 280 1.200 280 1.200 280 1.100 220 750 110 550 65 650 75 550 55 Groove doc 1,5 D finishing Woc 0,02 D J8 = Euro stock
