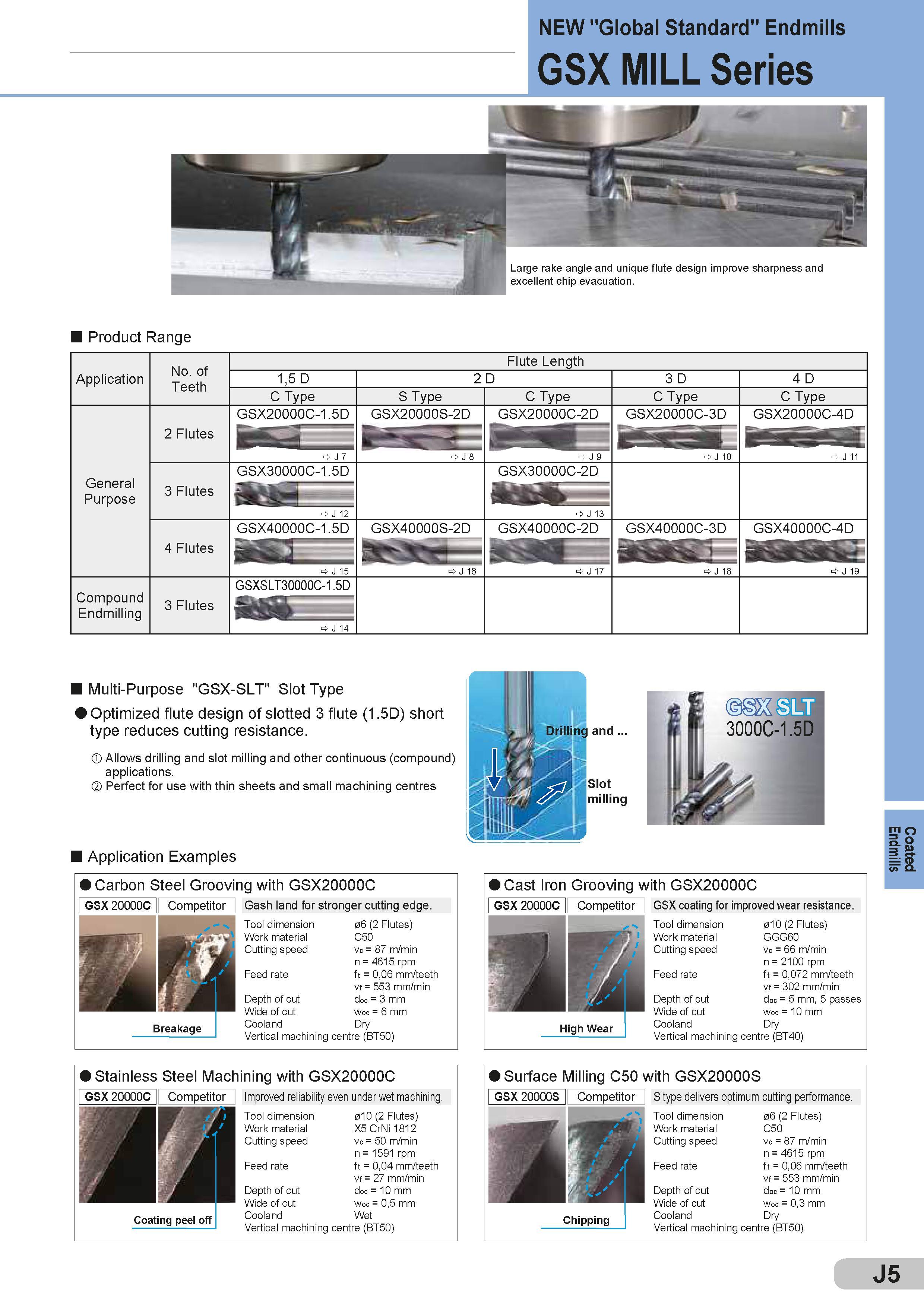

351 Каталог SUMITOMO 2018 Инструмент металлорежущий Пластины Резцы Фрезы Сверла Стр.J5

Каталог SUMITOMO 2018 Инструмент металлорежущий Стр. J5 0351 Lab2u

NEW "Global Standard" Endmills Product Range No. of Teeth Количество режущих зубьев Flute Length Application 1,5 D 2 D 3 D 4 D C Type S Type C Type C Type C Type 2 Flutes GSX20000C-1.5D GSX20000S-2D GSX20000C-2D GSX20000C-3D GSX20000C-4D < j 7 V TL- => J 8 => J 9 < j 10 < j 11 General Purpose GSX30000C-1.5D GSX30000C-2D 3 Flutes < j 12 < J 13 4 Flutes GSX40000C-1.5D GSX40000S-2D GSX40000C-2D GSX40000C-3D GSX40000C-4D a j 15 => J 16 => J 17 < J 18 => J 19 Compound Endmilling GSXSLT30000C-1.5D 3 Flutes < J 14 Multi-Purpose "GSX-SLT" Slot Type Optimized flute design of slotted 3 flute (1.5D) short type reduces cutting resistance. Allows drilling and slot milling and other continuous (compound) applications. Perfect for use with thin sheets and small machining centres Application Examples and ... Slot milling GSX SLT 3000C-1.5D Carbon Steel Grooving with GSX20000C Competitor Gash land for stronger cutting edge. Tool dimension Work material Cutting speed Feed rate Depth of cut Wide of cut Cooland 06 (2 Flutes) C50 vc = 87 m/min n = 4615 rpm ft = 0,06 mm/teeth vf = 553 mm/min doc = 3 mm woc = 6 mm Dry Vertical machining centre (BT50) Stainless Steel Machining with GSX20000C GSX 20000C Competitor Improved reliability even under wet machining. Tool dimension Work material Cutting speed Feed rate Depth of cut Wide of cut Cooland 010 (2 Flutes) X5 CrNi 1812 vc = 50 m/min n = 1591 rpm ft = 0,04 mm/teeth vf = 27 mm/min doc = 10 mm woc = 0,5 mm Wet Vertical machining centre (BT50) Cast Iron Grooving with GSX20000C GSX coating for improved wear resistance. Tool dimension Work material Cutting speed Feed rate Depth of cut Wide of cut Cooland Vertical machining centre (BT40) 010 (2 Flutes) GGG60 vc = 66 m/min n = 2100 rpm ft = 0,072 mm/teeth vf = 302 mm/min doc = 5 mm, 5 passes woc = 10 mm Dry Surface Milling C50 with GSX20000S GSX 20000S Competitor S type delivers optimum cutting performance. Tool dimension Work material Cutting speed Feed rate Depth of cut Wide of cut Cooland 06 (2 Flutes) C50 vc = 87 m/min n = 4615 rpm ft = 0,06 mm/teeth vf = 553 mm/min doc = 10 mm woc = 0,3 mm Dry Vertical machining centre (BT50) J5 Coated Endmills
