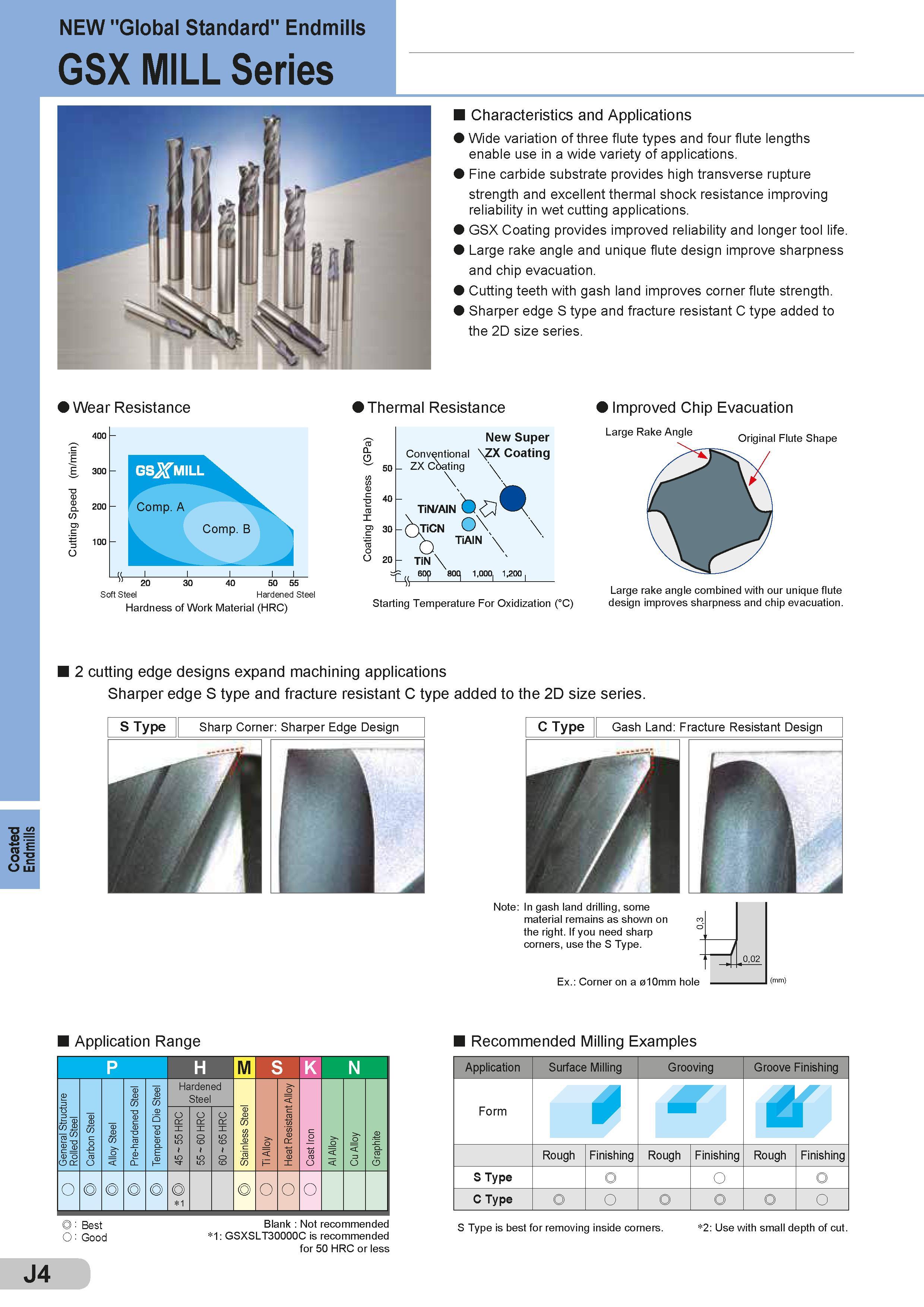

Coated Endmills NEW "Global Standard" Endmills GSX MILL Series Characteristics and Applications Wide variation of three flute types and four flute lengths enable use in a wide variety of applications. Fine carbide substrate provides high transverse rupture strength and excellent thermal shock resistance improving reliability in wet cutting applications. GSX Coating provides improved reliability and longer tool life. Large rake angle and unique flute design improve sharpness and chip evacuation. Cutting teeth with gash land improves corner flute strength. Sharper edge S type and fracture resistant C type added to the 2D size series. Wear Resistance Comp. A Comp. B 20 30 40 SO 55 Soft Steel Hardened Steel Hardness of Work Material (HRC) Thermal Resistance o. O H o> 30 at o O 20 New Super Conventional \£X Coating ZX Coating \ TiN/AIN TiCN OX TiAlN TiN \ , 60p 80q 1,0QQ Starting Temperature For Oxidization (°C) Improved Chip Evacuation Large Rake Angle Original Flute Shape Large rake angle combined with our unique flute design improves sharpness and chip evacuation. 2 cutting edge designs expand machining applications Sharper edge S type and fracture resistant C type added to the 2D size series. Note: In gash land drilling, some material remains as shown on the right. If you need sharp corners, use the S Type. Ex.: Corner on a 010mm hole 0,02 / Application Range P H S K N General Structure Rolled Steel Pre-hardened Steel Tempered Die Steel Hardened Steel Stainless Steel Heat Resistant Alloy n Carbon Steel Alloy Steel 45 55 HRC 55 60 HRC 60 65 HRC Ti Alloy Cast Iron Al Alloy Cu Alloy Graphite O 1 O O O : Best Blank : Not recommended O : Good 1: GSXSLT30000C is recommended for 50 HRC or less Recommended Milling Examples Application Surface Milling Grooving Groove Finishing Form if n Rough Finishing Rough Finishing Rough Finishing S Type O O Q C Type O O Q O o O S Type is best for removing inside corners. 2: Use with small depth of cut. J4
