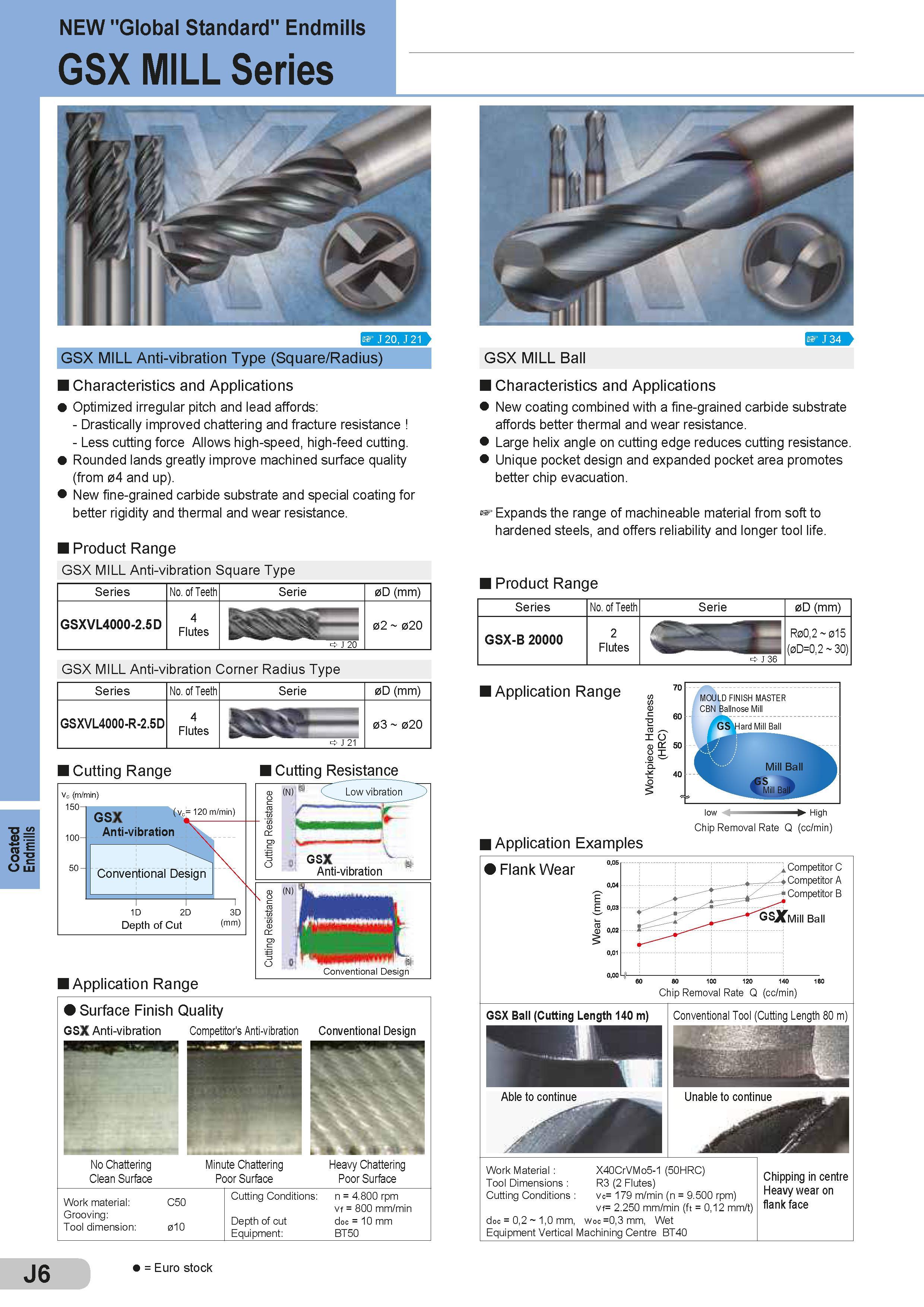

Coated Endmills NEW "Global Standard" Endmills GSX MILL Series GSX MILL Anti-vibration Type (Square/Radius) Characteristics and Applications Optimized irregular pitch and lead affords: - Drastically improved chattering and fracture resistance - Less cutting force Allows high-speed, high-feed cutting. Rounded lands greatly improve machined surface quality (from 04 and up). New fine-grained carbide substrate and special coating for better rigidity and thermal and wear resistance. Product Range GSX MILL Anti-vibration Square Type Series No. of Teeth Количество режущих зубьев Serie 0D (mm) GSXVL4000-2.5D 4 Flutes A J 2O 02 02O GSX MILL Anti-vibration Corner Radius Type Series No. of Teeth Количество режущих зубьев Serie 0D (mm) GSXVL4000-R-2.5D 4 03 02O Flutes A J 21 Cutting Range Cutting Resistance Application Range Surface Finish Quality GSX Anti-vibration Competitor's Anti-vibration Conventional Design No Chattering Clean Surface Work material: Grooving: Tool dimension: C5O 01O Minute Chattering Poor Surface Cutting Conditions: Depth of cut Equipment: ¥ i Heavy Chattering Poor Surface n = 4.8OO rpm vf = 8OO mm/min doc = 1O mm BT5O GSX MILL Ball Characteristics and Applications New coating combined with a fine-grained carbide substrate affords better thermal and wear resistance. Large helix angle on cutting edge reduces cutting resistance. Unique pocket design and expanded pocket area promotes better chip evacuation. + Expands the range of machineable material from soft to hardened steels, and offers reliability and longer tool life. Product Range Series No. of Teeth Количество режущих зубьев Serie 0D (mm) GSX-B 20000 2 Flutes A J 36 R0O,2 015 (0D=O,2 3O) Application Range MOULD FINISH MASTER CBN Ballnose Mill GS Hard Mill Ball I O d) E 50 o I Mill Ball Bal) Application Examples Flank Wear " E E 0.0 low High Chip Removal Rate Q (cc/min) Competitor C - Competitor A Competitor B GSXl Mill Ball Chip Removal Rate Q (cc/min) GSX Ball (Cutting Length 140 m) Conventional Tool (Cutting Length 8O m) Work Material : X4OCrVMo5-1 (5OHRC) Tool Dimensions : R3 (2 Flutes) Cutting Conditions : vc= 179 m/min (n = 9.5OO rpm) vf= 2.25O mm/min (ft = O,12 mm/t) doc = O,2 1,O mm, woc =O,3 mm, Wet Equipment Vertical Machining Centre BT4O Chipping in centre Heavy wear on flank face J6 = Euro stock
