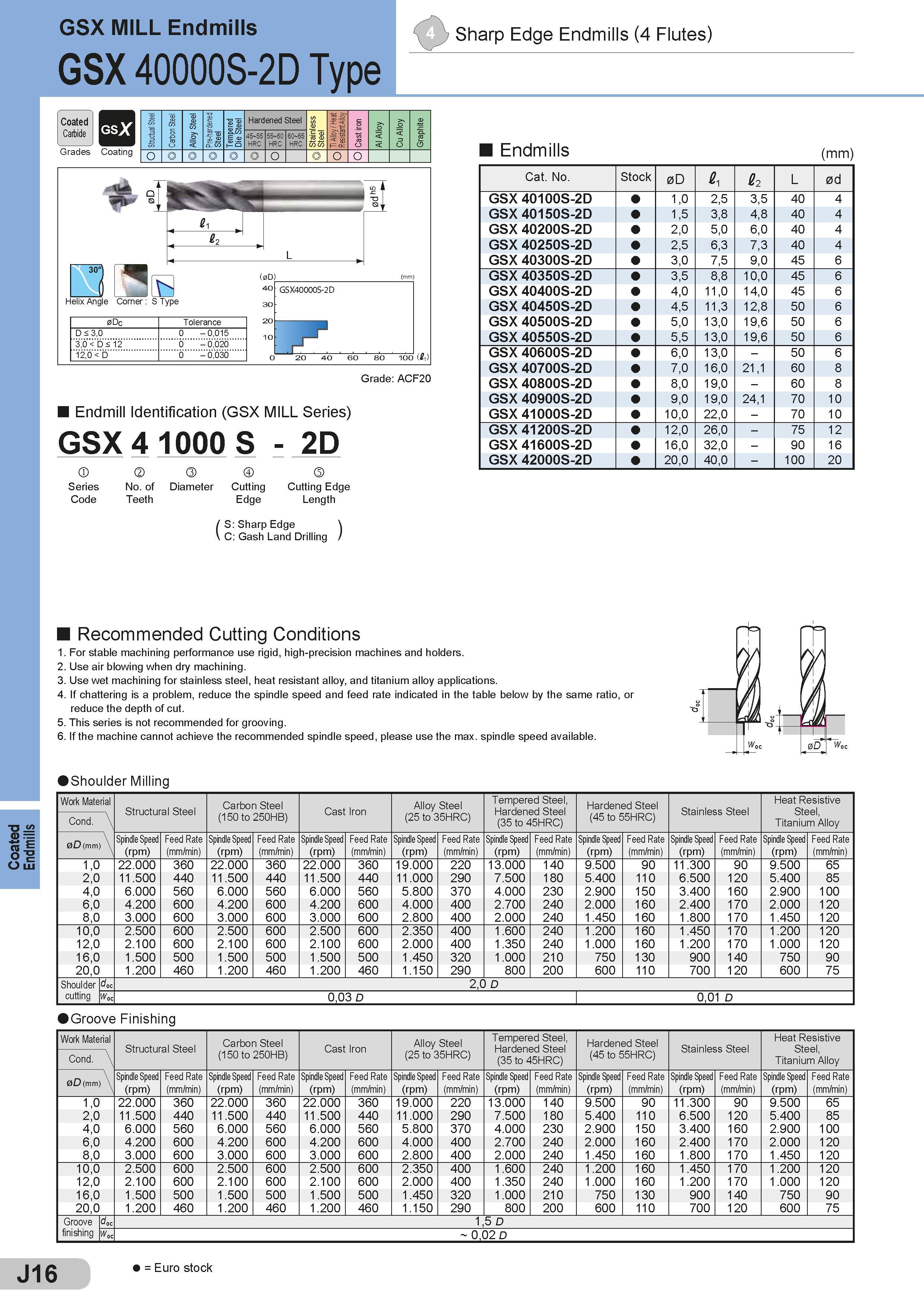

Coated Endmills GSX MILL Endmi s Sharp Edge Endmills (4 Flutes) GSX 40000S-2D Type Grades Coating Stmctual Steel Carbon Steel Alloy Steel Pre-hardened Steel Tempered Die Steel Hardened Steel Stainless Steel Ti Alloy / Heat Resistant Alloy Cast iron Al Alloy Cu Alloy Graphite 45 55 HRC 55 60 HRC 60 65 HRC o o ii L . . , 30° J Helix Angle Corner : S Type ( 0D) 40 0Dc Tolerance D < 3,0 0 - 0,015 3,0 < D < 12 0 - 0,020 12,0 < D 0 - 0,030 20 40 60 80 100 (Si) Grade: ACF20 Endmill Identification (GSX MILL Series) GSX 4 1000 S - 2D j Series Code k No. of Teeth Количество режущих зубьев Diameter Cutting Edge Cutting Edge Length ( S: Sharp Edge ) C: Gash Land Drilling Endmills (mm) Cat. No. Stock 0D 4 02 L 0d GSX 40100S-2D 1,0 2,5 3,5 40 4 GSX 40150S-2D 1,5 3,8 4,8 40 4 GSX 40200S-2D 2,0 5,0 6,0 40 4 GSX 40250S-2D 2,5 6,3 7,3 40 4 GSX 40300S-2D 3,0 7,5 9,0 45 6 GSX 40350S-2D 3,5 8,8 10,0 45 6 GSX 40400S-2D 4,0 11,0 14,0 45 6 GSX 40450S-2D 4,5 11,3 12,8 50 6 GSX 40500S-2D 5,0 13,0 19,6 50 6 GSX 40550S-2D 5,5 13,0 19,6 50 6 GSX 40600S-2D 6,0 13,0 - 50 6 GSX 40700S-2D 7,0 16,0 21,1 60 8 GSX 40800S-2D 8,0 19,0 - 60 8 GSX 40900S-2D 9,0 19,0 24,1 70 10 GSX 41000S-2D 10,0 22,0 - 70 10 GSX 41200S-2D 12,0 26,0 - 75 12 GSX 41600S-2D 16,0 32,0 - 90 16 GSX 42000S-2D 20,0 40,0 - 100 20 3U 20 0 Recommended Cutting Conditions 1. For stable machining performance use rigid, high-precision machines and holders. 2. Use air blowing when dry machining. 3. Use wet machining for stainless steel, heat resistant alloy, and titanium alloy applications. 4. If chattering is a problem, reduce the spindle speed and feed rate indicated in the table below by the same ratio, or reduce the depth of cut. 5. This series is not recommended for grooving. 6. If the machine cannot achieve the recommended spindle speed, please use the max. spindle speed available. Shoulder Milling Work Material Carbon Steel Alloy Steel Tempered Steel, Hardened Steel (35 to 45HRC) Hardened Steel Heat Resistive Steel, Titanium Alloy Cond. \ (150 to 250HB) (25 to 35HRC) (45 to 55HRC) 0D (mm) \ Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) Spindle Speed (rpm) Feed Rate (mm/min) 1,0 22.000 360 22.000 360 22.000 360 19.000 220 13.000 140 9.500 90 11.300 90 9.500 65 2,0 11.500 440 11.500 440 11.500 440 11.000 290 7.500 180 5.400 110 6.500 120 5.400 85 4,0 6.000 560 6.000 560 6.000 560 5.800 370 4.000 230 2.900 150 3.400 160 2.900 100 6,0 4.200 600 4.200 600 4.200 600 4.000 400 2.700 240 2.000 160 2.400 170 2.000 120 8,0 3.000 600 3.000 600 3.000 600 2.800 400 2.000 240 1.450 160 1.800 170 1.450 120 10,0 2.500 600 2.500 600 2.500 600 2.350 400 1.600 240 1.200 160 1.450 170 1.200 120 12,0 2.100 600 2.100 600 2.100 600 2.000 400 1.350 240 1.000 160 1.200 170 1.000 120 16,0 1.500 500 1.500 500 1.500 500 1.450 320 1.000 210 750 130 900 140 750 90 20,0 1.200 460 1.200 460 1.200 460 1.150 290 800 200 600 110 700 120 600 75 Shoulder doc 2,0 D cutting Woc 0,03 D 0,01 D Groove Finishing Work Material Structural Steel Carbon Steel (150 to 250HB) Cast Iron Alloy Steel (25 to 35HRC) Tempered Steel, Hardened Steel (35 to 45HRC) Hardened Steel (45 to 55HRC) Stainless Steel Heat Resistive Steel, Titanium Alloy Cond. \ Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) (rpm) (mm/min) 1,0 22.000 360 22.000 360 22.000 360 19.000 220 13.000 140 9.500 90 11.300 90 9.500 65 2,0 11.500 440 11.500 440 11.500 440 11.000 290 7.500 180 5.400 110 6.500 120 5.400 85 4,0 6.000 560 6.000 560 6.000 560 5.800 370 4.000 230 2.900 150 3.400 160 2.900 100 6,0 4.200 600 4.200 600 4.200 600 4.000 400 2.700 240 2.000 160 2.400 170 2.000 120 8,0 3.000 600 3.000 600 3.000 600 2.800 400 2.000 240 1.450 160 1.800 170 1.450 120 10,0 2.500 600 2.500 600 2.500 600 2.350 400 1.600 240 1.200 160 1.450 170 1.200 120 12,0 2.100 600 2.100 600 2.100 600 2.000 400 1.350 240 1.000 160 1.200 170 1.000 120 16,0 1.500 500 1.500 500 1.500 500 1.450 320 1.000 210 750 130 900 140 750 90 20,0 1.200 460 1.200 460 1.200 460 1.150 290 800 200 600 110 700 120 600 75 Groove doc 1,5 D finishing Woc 0,02 D J16 = Euro stock
