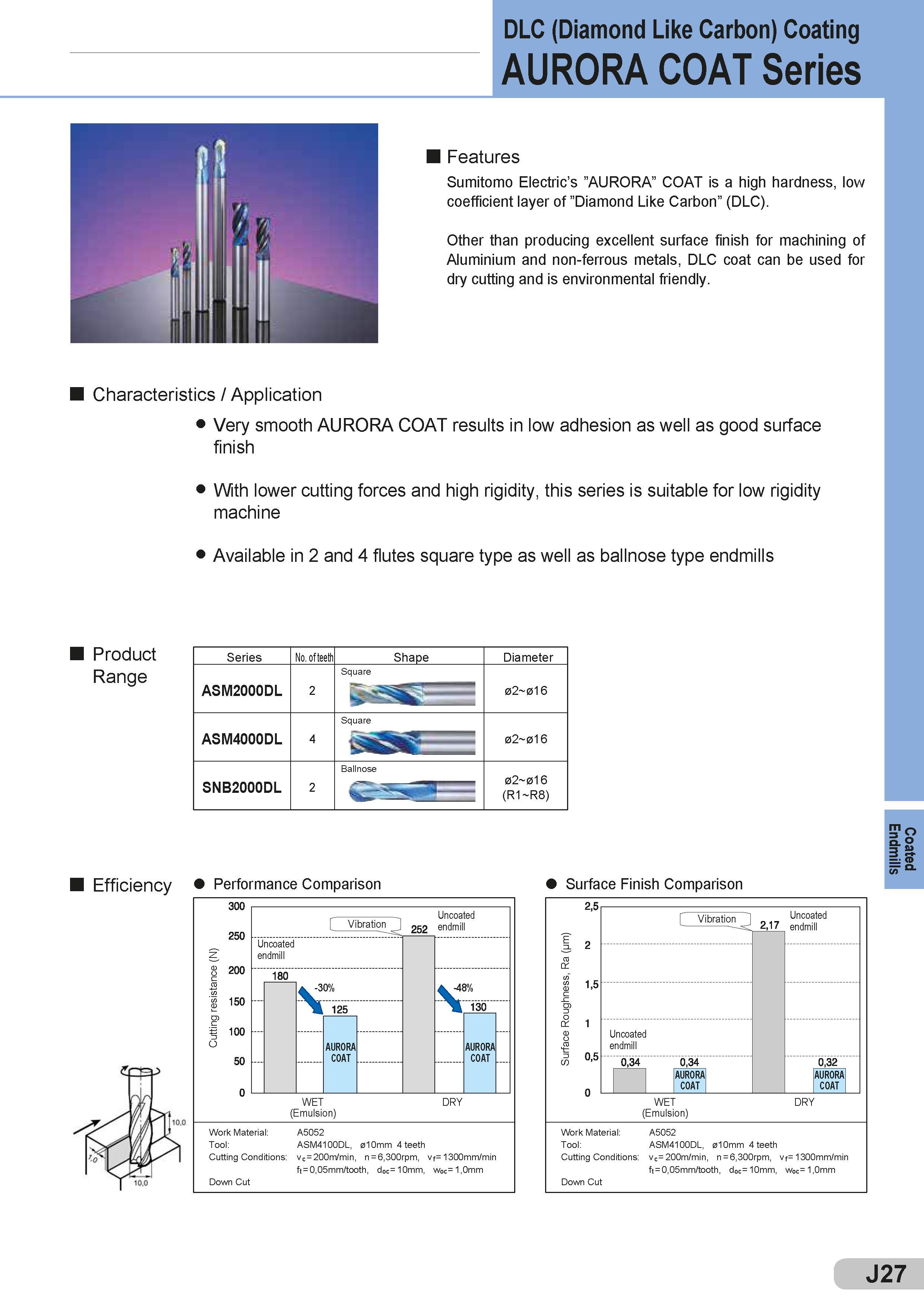

DLC (Diamond Like Carbon) Coating AURORA COAT Series Features Sumitomo Electric’s ’’AURORA” COAT is a high hardness, low coefficient layer of ’’Diamond Like Carbon” (DLC). Other than producing excellent surface finish for machining of Aluminium and non-ferrous metals, DLC coat can be used for dry cutting and is environmental friendly. Characteristics / Application Very smooth AURORA COAT results in low adhesion as well as good surface finish With lower cutting forces and high rigidity, this series is suitable for low rigidity machine Available in 2 and 4 flutes square type as well as ballnose type endmills Product Range Series No. of teeth Shape Diameter ASM2000DL 2 Square 02 016 ASM4000DL 4 Square 02 016 SNB2000DL 2 Ballnose 02 016 (R1 R8) Efficiency Performance Comparison Surface Finish Comparison 300 250 200 c -2 ts ES 150 03 f 100 O 50 0 WET DRY (Emulsion) Work Material: A5052 Tool: ASM4100DL, 010mm 4 teeth Cutting Conditions: vc = 200m/min, n = 6,300rpm, vf= 1300mm/min ft = 0,05mm/tooth, doc= 10mm, woc= 1,0mm Down Cut t (Emulsion) Work Material: A5052 Tool: ASM4100DL, 010mm 4 teeth Cutting Conditions: vc= 200m/min, n = 6,300rpm, vf= 1300mm/min ft = 0,05mm/tooth, doc= 10mm, woc= 1,0mm Down Cut J27 Coated Endmills
