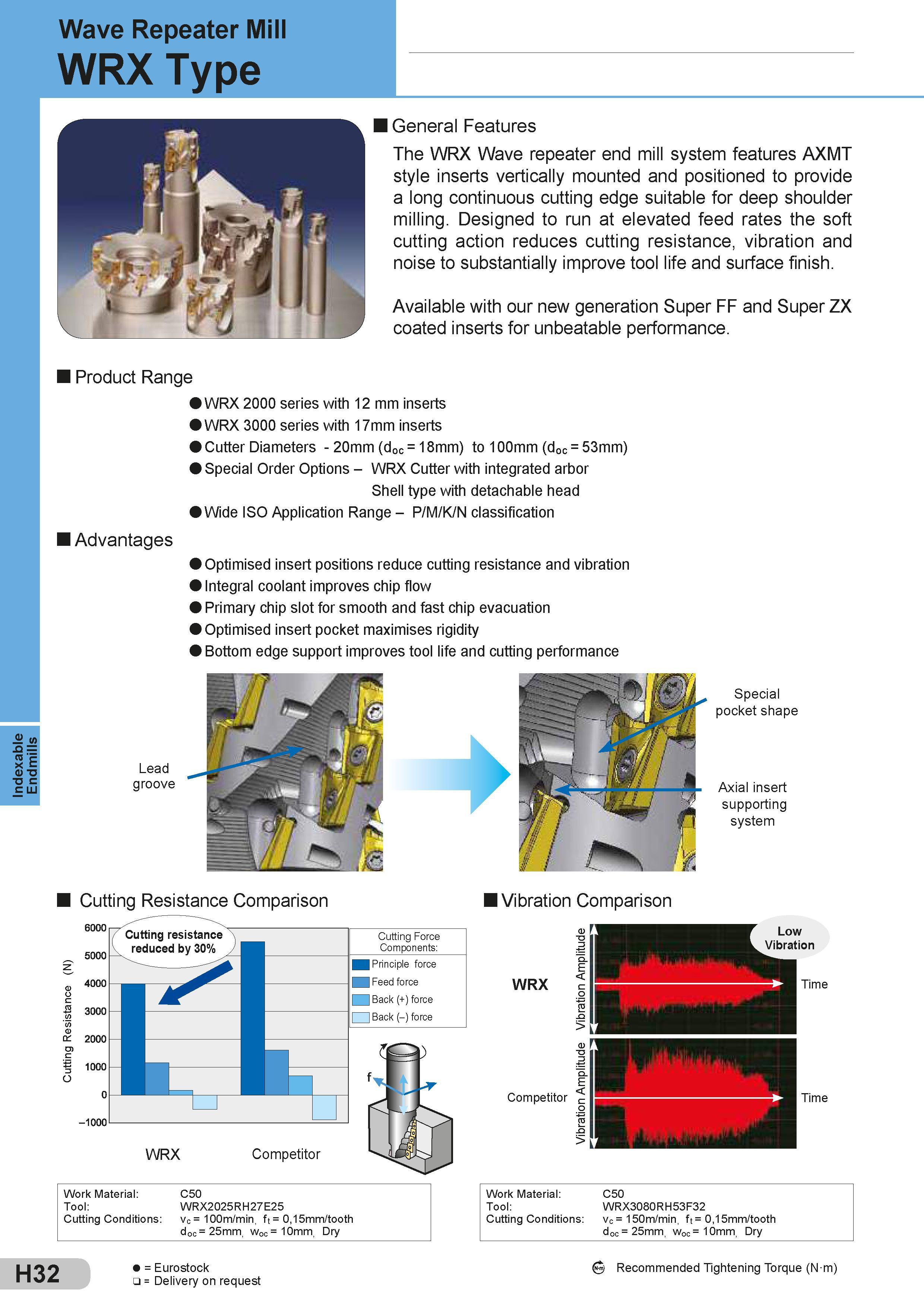

Indexable Endmills Wave Repeater Mill WRX Type I General Features The WRX Wave repeater end mill system features AXMT style inserts vertically mounted and positioned to provide a long continuous cutting edge suitable for deep shoulder milling. Designed to run at elevated feed rates the soft cutting action reduces cutting resistance, vibration and noise to substantially improve tool life and surface finish. Available with our new generation Super FF and Super ZX coated inserts for unbeatable performance. Product Range I Advantages WRX 2000 series with 12 mm inserts WRX 3000 series with 17mm inserts Cutter Diameters - 20mm (doc = 18mm) to 100mm (doc = 53mm) Special Order Options - WRX Cutter with integrated arbor Shell type with detachable head Wide ISO Application Range - P/M/K/N classification Optimised insert positions reduce cutting resistance and vibration Integral coolant improves chip flow Primary chip slot for smooth and fast chip evacuation Optimised insert pocket maximises rigidity Bottom edge support improves tool life and cutting performance Lead groove Special pocket shape Axial insert supporting system Cutting Resistance Comparison 6000 5000 4000 3000 2000 1000 -1000 Cutting Force Components: Principle force I Feed force Back (+) force Back (-) force I Vibration Comparison WRX WRX Competitor Competitor Time Time Work Material: C50 Tool: WRX2025RH27E25 Cutting Conditions: vc = 100m/min, ft = 0,15mm/tooth doc = 25mm, woc = 10mm, Dry Work Material: C50 Tool: WRX3080RH53F32 Cutting Conditions: vc = 150m/min, ft = 0,15mm/tooth doc = 25mm, woc = 10mm, Dry H32 = Eurostock = Delivery on request Recommended Tightening Torque (N m)
